Sandvik Coromant
7586853
Sandvik Coromant 7586853
Specifications
| Coating/Finish | AlTiCrN |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 0.4 |
| Material | CBN |
| Size | 1504 |
| Corner Radius (Inch) | 0.02 |
| Style | DNGA |
| Thickness (Inch) | 0.19 |

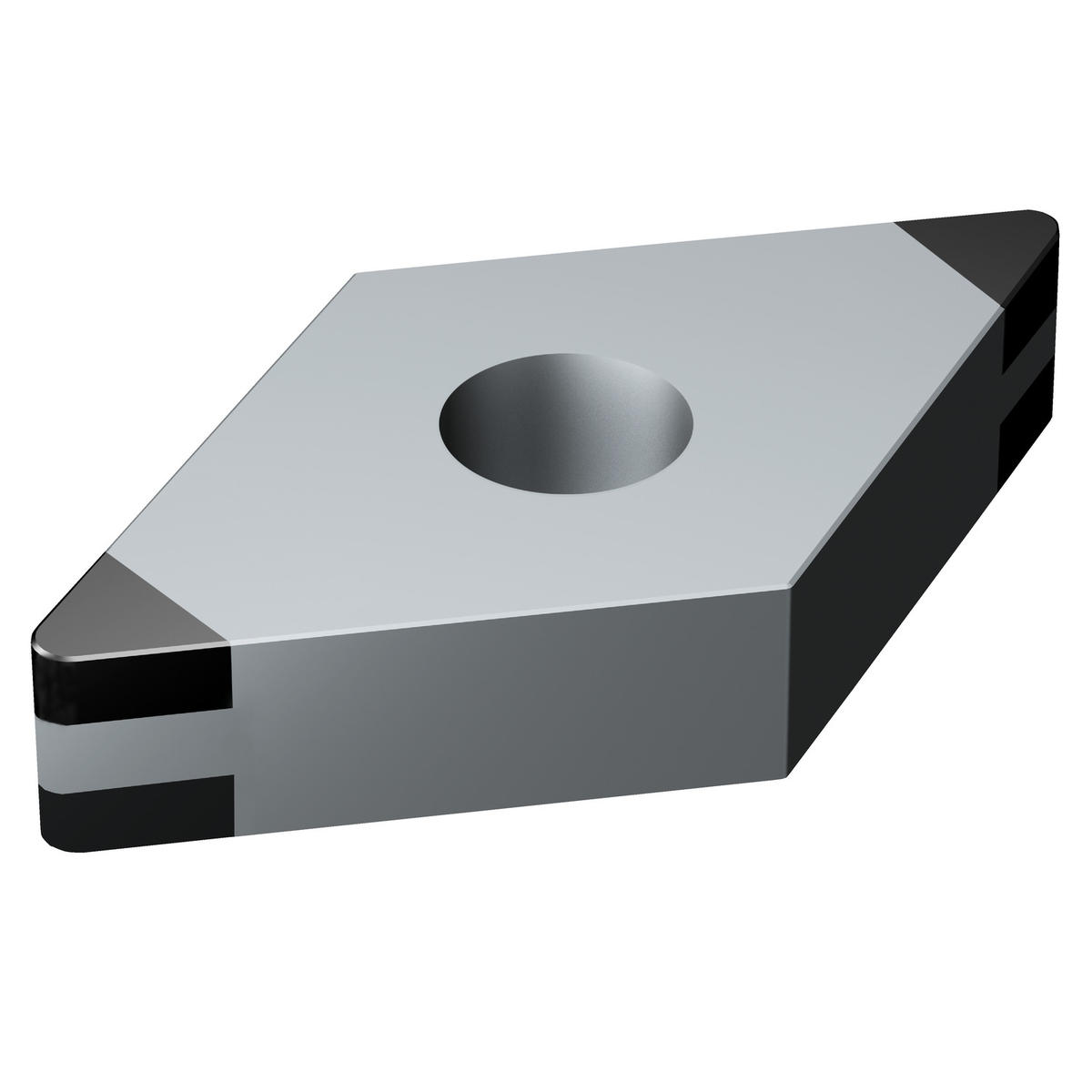

| Short Description | T-Max® P insert for turning |
| Grade | 7125 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 12.7 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Clearance Angle Major | 0 degrees |
| Face Land Width (Metric) | 0.15 |
| Face Land Width (Decimal) | 0.006 |
| Length (Decimal) | 0.11 |
| Length (Metric) | 2.9 |
| Rake Angle | 0 degrees |
| Face Land Angle | 25 degrees |
| Shape | Diamond |
| Country of Origin | Poland |
| Series | T-Max P |
| ANSI Code | DNGA431S0525H 7125 |
| ISO Code | DNGA150404S01525H 7125 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.2 |
| Fixing Hole Diameter (Metric) | 5.16 |
| Coating Process Type | PVD |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | CBN |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | H |
| Base Item Number | 1049 |
| Length | 2.9 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.024 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | DNGA |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | DNGA150404S01525H7125 |
| Insert Size | 1504 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DNGA150404S01525H 7125 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323223812483 |
