Sandvik Coromant
7586889

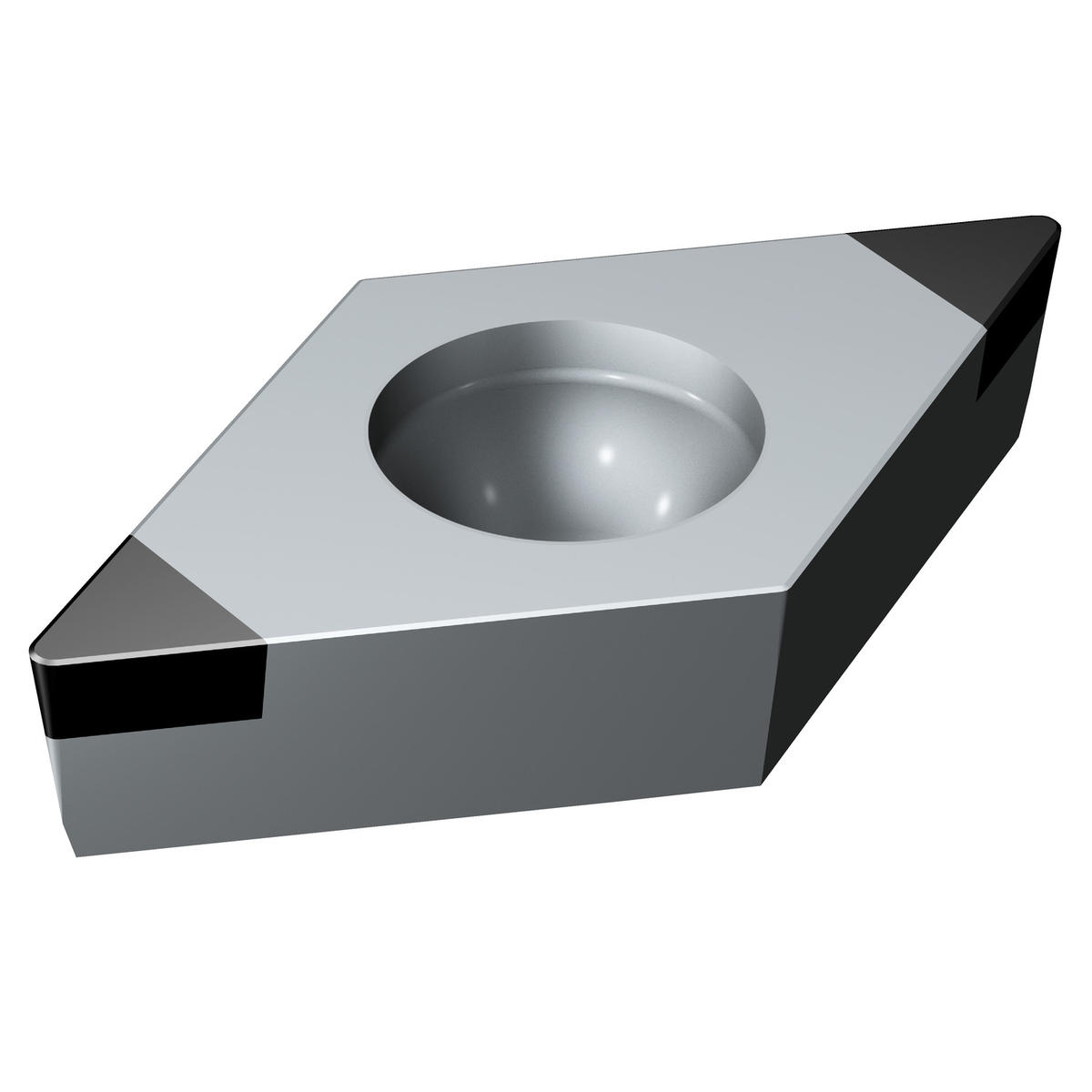

Sandvik Coromant 7586889
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 2.38 |
| Corner Radius (Metric) | 0.4 |
| Material | CBN High Content |
| Size | 21.51 |
| Corner Radius (Inch) | 0.02 |
| Style | DCGW |
| Thickness (Inch) | 0.09 |
| Short Description | CoroTurn® 107 insert for turning |
| Grade | 7135 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Clearance Angle Major | 7 degrees |
| Face Land Width (Metric) | 0.15 |
| Face Land Width (Decimal) | 0.006 |
| Length (Decimal) | 0.11 |
| Length (Metric) | 2.9 |
| Face Land Angle | 30 degrees |
| Shape | Diamond |
| Country of Origin | Poland |
| Series | CoroTurn 107 |
| ANSI Code | DCGW2(1.5)1S0530F 7135 |
| ISO Code | DCGW070204S01530F 7135 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | CBN |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | H |
| Base Item Number | 1053 |
| Length | 2.9 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.003 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | DCGW |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | DCGW070204S01530F7135 |
| Insert Size | 21.51 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DCGW070204S01530F 7135 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323223812841 |
