Sandvik Coromant
7591893
Sandvik Coromant 7591893
Specifications
| Diameter (Metric) | 25 |
|---|---|
| Shank Diameter (Metric) | 32 |
| Overall Length (Metric) | 216 |
| Material | Steel and Aluminium |
| Series | CoroBore 825 |
| Diameter (Inch) | 0.98 |
| Unit Of Measure | Metric |

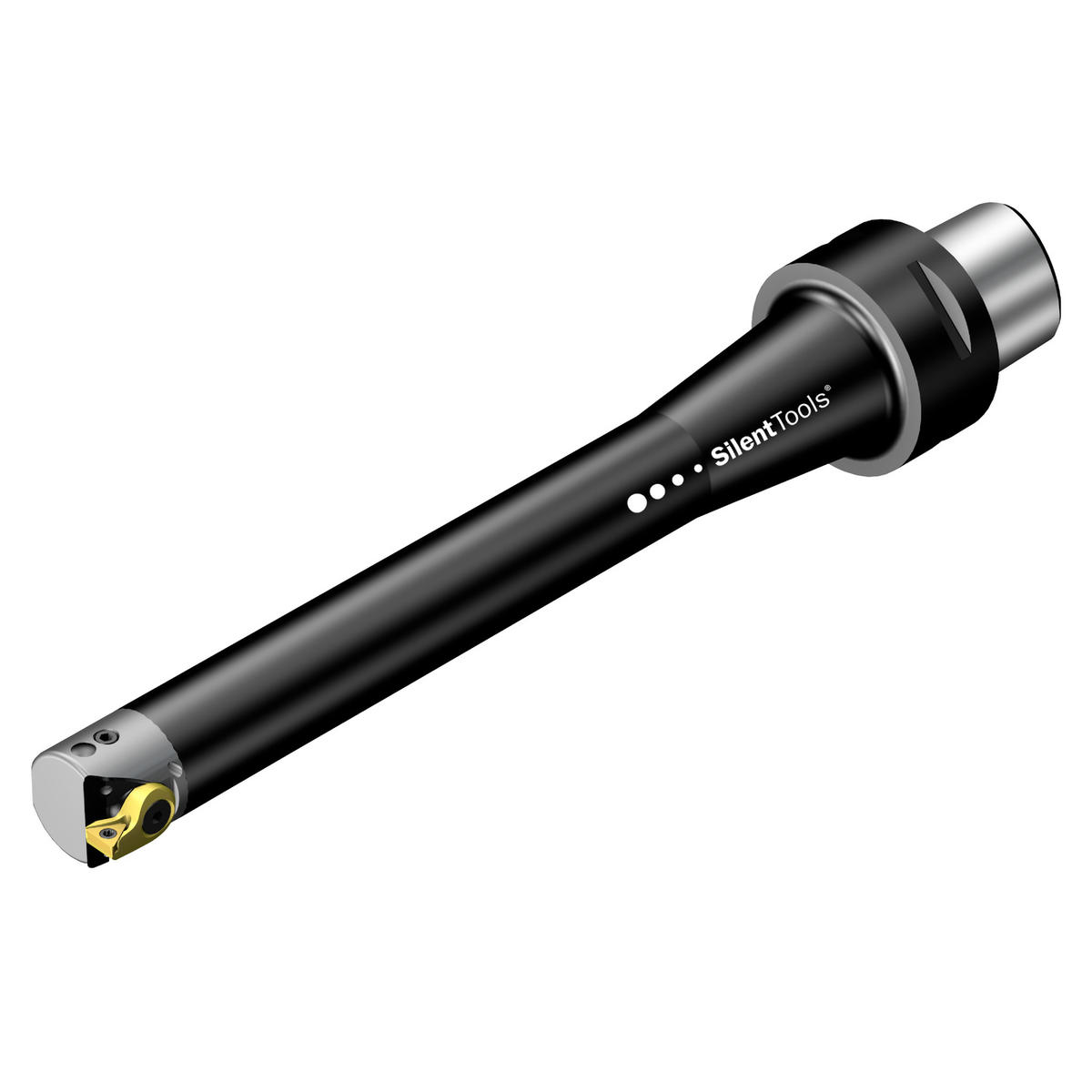

| Short Description | CoroBore® 825 damped fine boring tool |
| Coolant Through | Yes |
| ANSI Code | 825D-36TC06U-C3L |
| Tool Cutting Edge Angle | 92 degrees |
| Country of Origin | Netherlands |
| Connection Size | C3 |
| Body Length (Decimal) | 6.61 |
| Body Length (Metric) | 168 |
| Number Of Inserts | 1 |
| Clamping Type Code | Screw/Clamp |
| Standard Number | ISO26623-1 |
| Torque (ft lbf) | 0.443 |
| Torque (NM) | 0.6 |
| Coolant Pressure (Bar) | 70 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Base Item Number | 1129 |
| Body Length (Inch) | 6.61 |
| Coolant Pressure (lbf/in2) | 1015.26 |
| Max. Adjustment Limit (Decimal) | 0.16 |
| Max. Adjustment Limit (Metric) | 4 |
| Max. Cutting Diameter | 36 mm |
| Min. Cutting Diameter | 28 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.134 LB |
| Height Packed Product Metric | 215 mm |
| Height Packed Product Imperial | 8.465 inch |
| ISO Code (packed) | 825D-36TC06U-C3L |
| Length Packed Product Metric | 303 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 825D-36TC06U-C3L |
| Length Packed Product Imperial | 11.929 inch |
| EAN Code | 7323223833822 |
