Sandvik Coromant
7602789

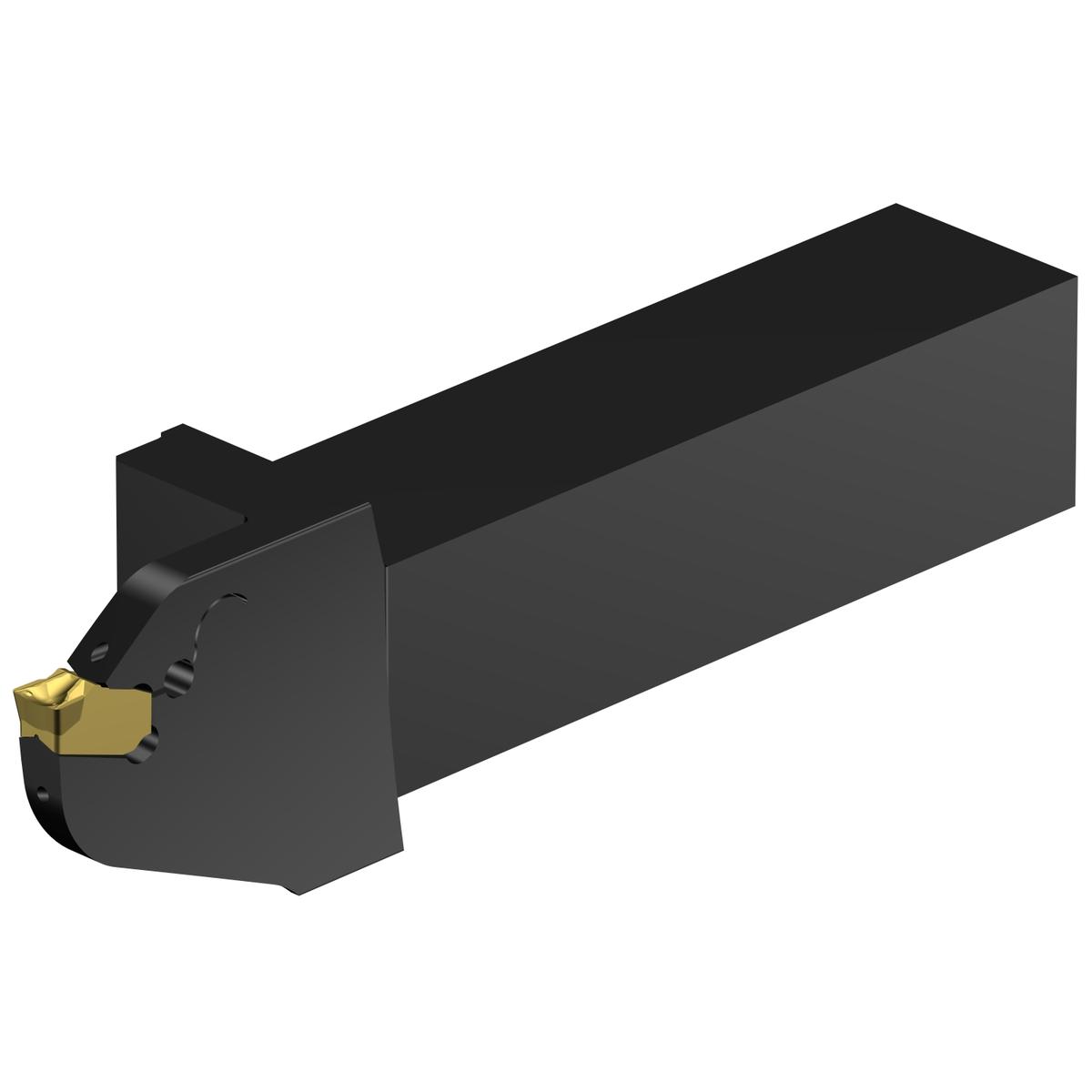

Sandvik Coromant 7602789
Specifications
| Overall Length (Metric) | 177.8 |
|---|---|
| Series | CoroCut QF |
| Overall Length (Inch) | 7 |
| Insert Style | QFT-RF..C20..B (INCH) |
| Short Description | CoroCut® QF shank tool for face grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Shank Width | 1.25 Inch |
| Shank Width (Decimal) | 1.3 |
| Shank Width (Metric) | 31.75 |
| Shank Height (Metric) | 31.75 |
| Coolant Entry Thread Size | G1/8-28 |
| Overall Height (Metric) | 31.75 |
| Overall Height (Decimal) | 1.25 |
| Overall Length | 7 Inch |
| Insert Compatibility | QFT-L-0800-08-TF |
| ANSI Code | QFT-RFL150C20-120B |
| Coolant Through | Yes |
| Overall Width (Decimal) | 1.29 |
| Overall Width (Metric) | 32.77 |
| Shank Height (Decimal) | 1.25 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 2087 |
| Max. Axial Groove Outside Diameter (Decimal) | 11.81 |
| Max. Axial Groove Outside Diameter (Metric) | 300 |
| Max. Cutting Depth (Decimal) | 1.5 |
| Max. Cutting Depth (Metric) | 38.1 |
| Max. Overhang (Decimal) | 2.27 |
| Max. Overhang (Metric) | 57.7 |
| Min. Axial Groove Inside Diameter (Decimal) | 4.72 |
| Min. Axial Groove Inside Diameter (Metric) | 120 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 2.787 LB |
