Sandvik Coromant
7602814

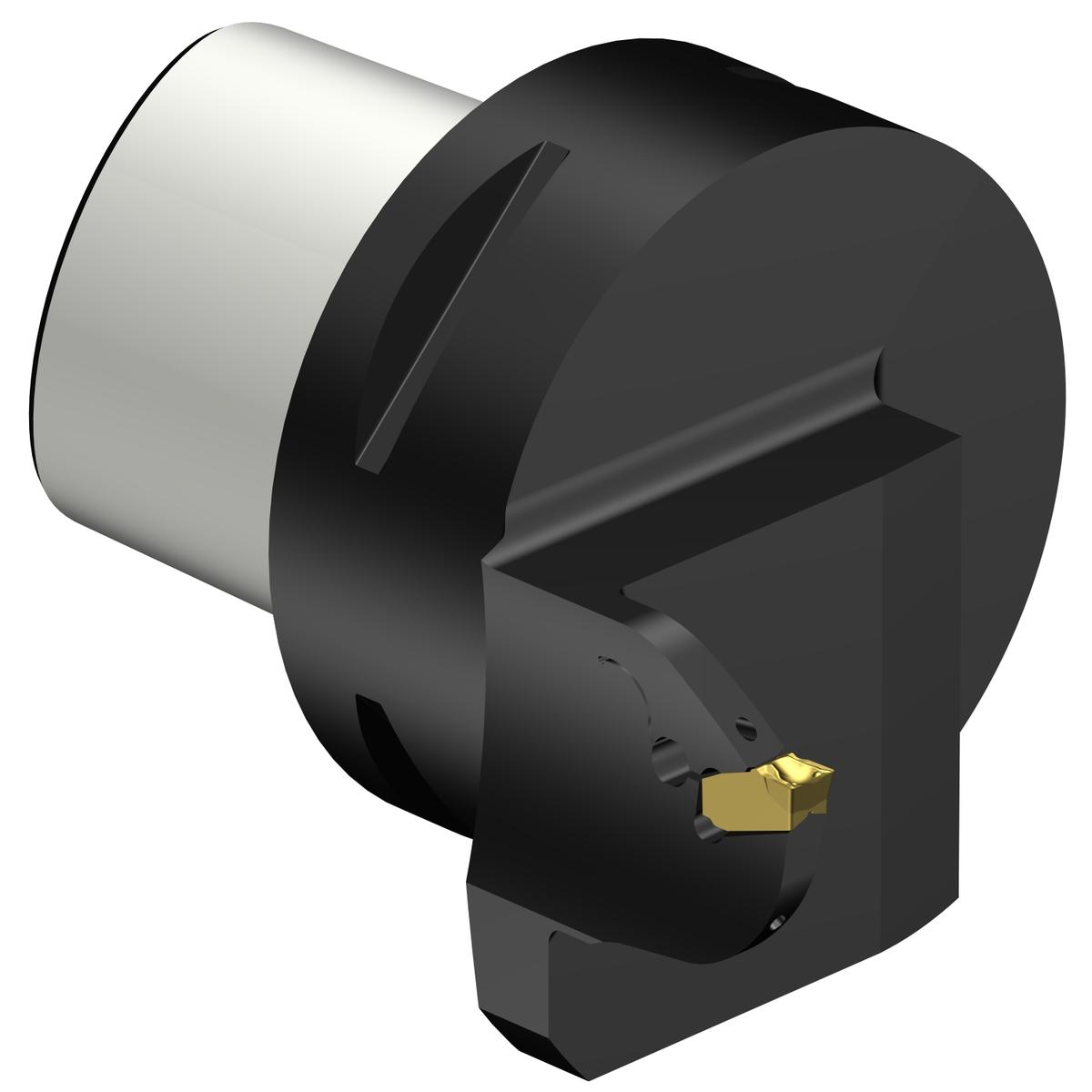

Sandvik Coromant 7602814
Specifications
| Center to Cutting Edge (Inch) | 1.65 |
|---|---|
| Coolant Fed | Yes |
| Size | C8 |
| Series | CoroCut QF |
| Center to Cutting Edge (Metric) | 42 |
| Short Description | CoroCut® QF cutting unit for face grooving |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 42 mm |
| Insert Style | QFU-K-0600-04-TF |
| ANSI Code | C8-QFU-LK26C-045B |
| Connection Diameter (Decimal) | 3.15 |
| Connection Diameter (Metric) | 80 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 2175.57 lbf/in2 |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 2087 |
| Max. Axial Groove Outside Diameter (Decimal) | 3.94 |
| Max. Axial Groove Outside Diameter (Metric) | 100 |
| Max. Cutting Depth (Decimal) | 1.02 |
| Max. Cutting Depth (Metric) | 26 |
| Max. Hole Depth | 73.1 mm |
| Max. Hole Depth (Decimal) | 2.88 |
| Max. Hole Depth (Metric) | 73.1 |
| Max. Overhang (Decimal) | 2.88 |
| Max. Overhang (Metric) | 73.1 |
| Min. Axial Groove Inside Diameter (Decimal) | 1.77 |
| Min. Axial Groove Inside Diameter (Metric) | 45 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 4.548 LB |
| ISO Code (packed) | C8-QFU-LK26C-045B |
| Life Cycle State | 20 |
| ISO Code (unpacked) | C8-QFU-LK26C-045B |
| EAN Code | 7323223889478 |
