Sandvik Coromant
7659244
Sandvik Coromant 7659244
Specifications
| Shank Diameter (Metric) | 80 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 3.15 |

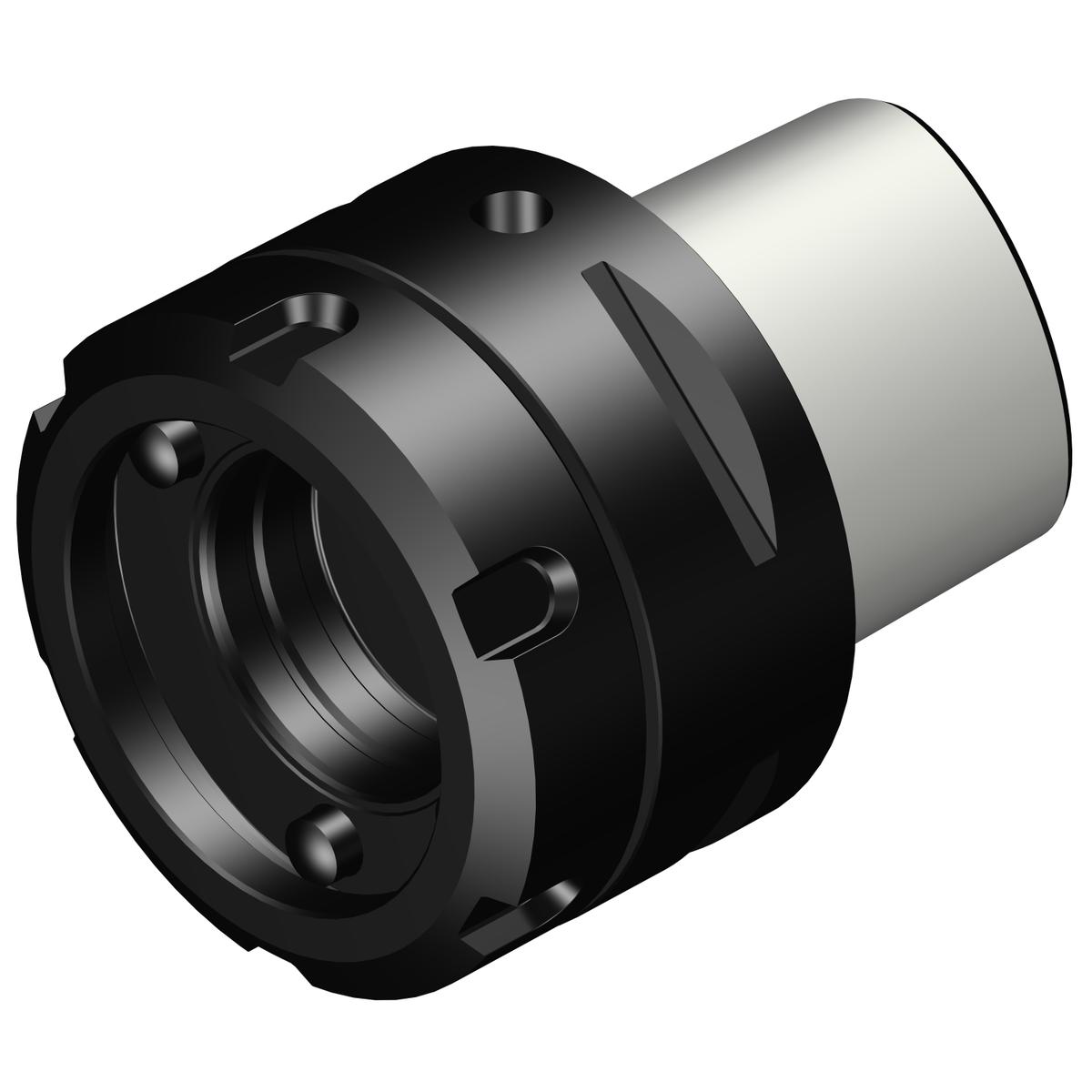

| Short Description | Coromant Capto® to MDI adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 80 mm |
| Overall Length | 40 mm |
| Overall Length (Decimal) | 1.58 |
| Overall Length (Metric) | 40 |
| ANSI Code | C8-DM40-N-040 |
| Coolant Through | Yes |
| Connection Size | C8 |
| Body Diameter (Decimal) | 3.15 |
| Body Diameter (Metric) | 80 |
| Body Length (Decimal) | 0.87 |
| Body Length (Metric) | 22 |
| Functional Diameter (Decimal) | 2.17 |
| Functional Diameter (Metric) | 55 |
| Data Chip Provision Size | D10/H4,5 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 169.639 |
| Torque (NM) | 230 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 3: axial concentric and radial entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | ISO26623-1 |
| Balanced by Design | Yes |
| Data Chip Provision | Yes |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2099 |
| Body Length (Inch) | 0.87 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 14000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 4.597 LB |
