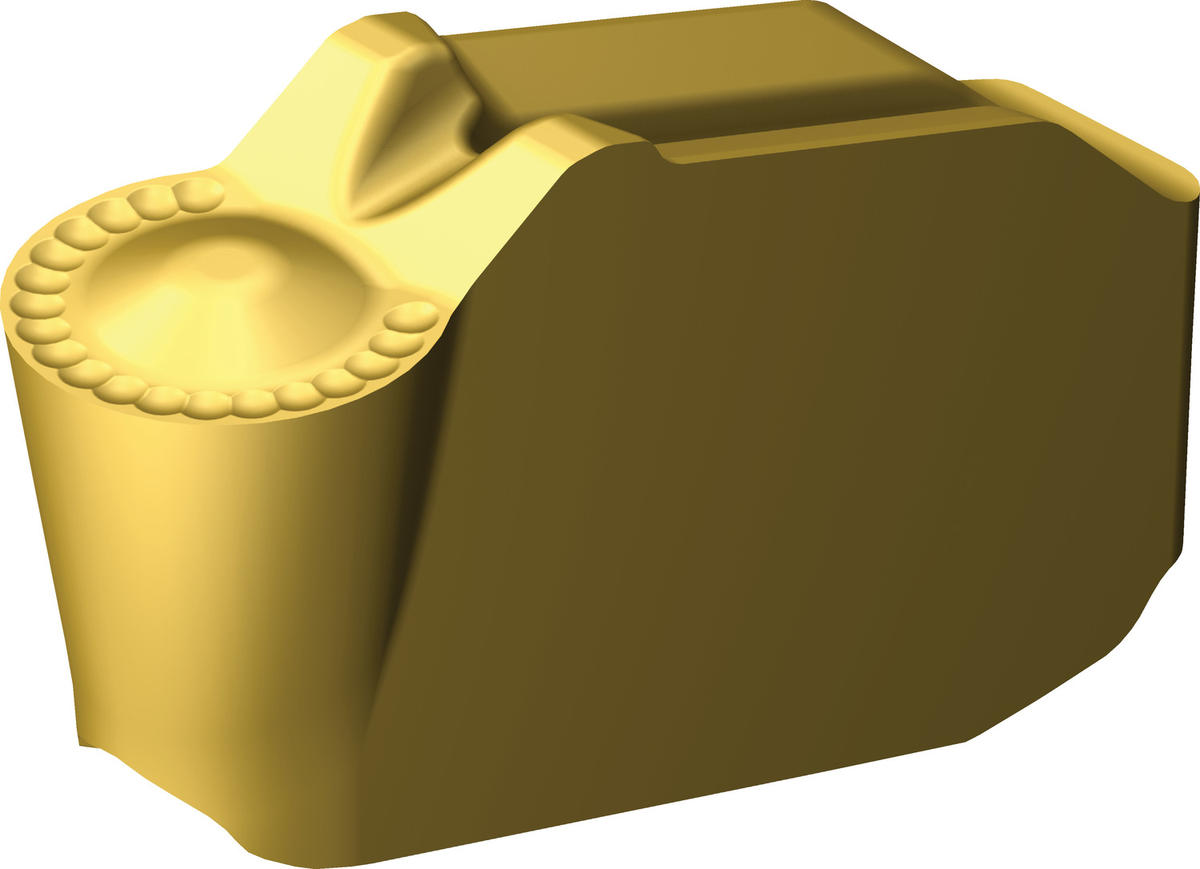

Sandvik Coromant
7690516
Sandvik Coromant 7690516
Specifications
| Series | CoroCut QD |
|---|---|
| Corner Radius (Metric) | 1.5 |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.06 |
| Insert Size | G |
| Coating/Finish | TiCrN+Al2O3+TiN |
| Short Description | CoroCut® QD insert for profiling |
| Style | QD-N |
| Grade | 1135 |
| Unit Of Measure | Metric |
| Cutting Width | 3 mm |
| Chip Breaker Type | RM |
| Cutting Width (Decimal) | 0.12 |
| Cutting Width (Metric) | 3 |
| ANSI Code | QD-NG-0300-RM 1135 |
| ISO Code | QD-NG-0300-RM 1135 |
| Hand of Insert | Neutral |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Insert Seat Size Code | G |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Cutting Width Lower Tolerance (Decimal) | -0.001969 |
| Cutting Width Lower Tolerance (Metric) | -0.05 |
| Cutting Width Upper Tolerance (Decimal) | 0.001969 |
| Cutting Width Upper Tolerance (Metric) | 0.05 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMKS |
| Country of Origin | Sweden |
| Base Item Number | 2061 |
| Cutting Width (Inch) | 0.12 |
| Max. Depth Of Cut (Decimal) | 0.05 |
| Max. Depth Of Cut (Metric) | 1.25 |
| Maximum Depth Of Cut (Inch) | 0.05 |
| Maximum Depth Of Cut (Metric) | 1.25 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.007 LB |
