Sandvik Coromant
7755899

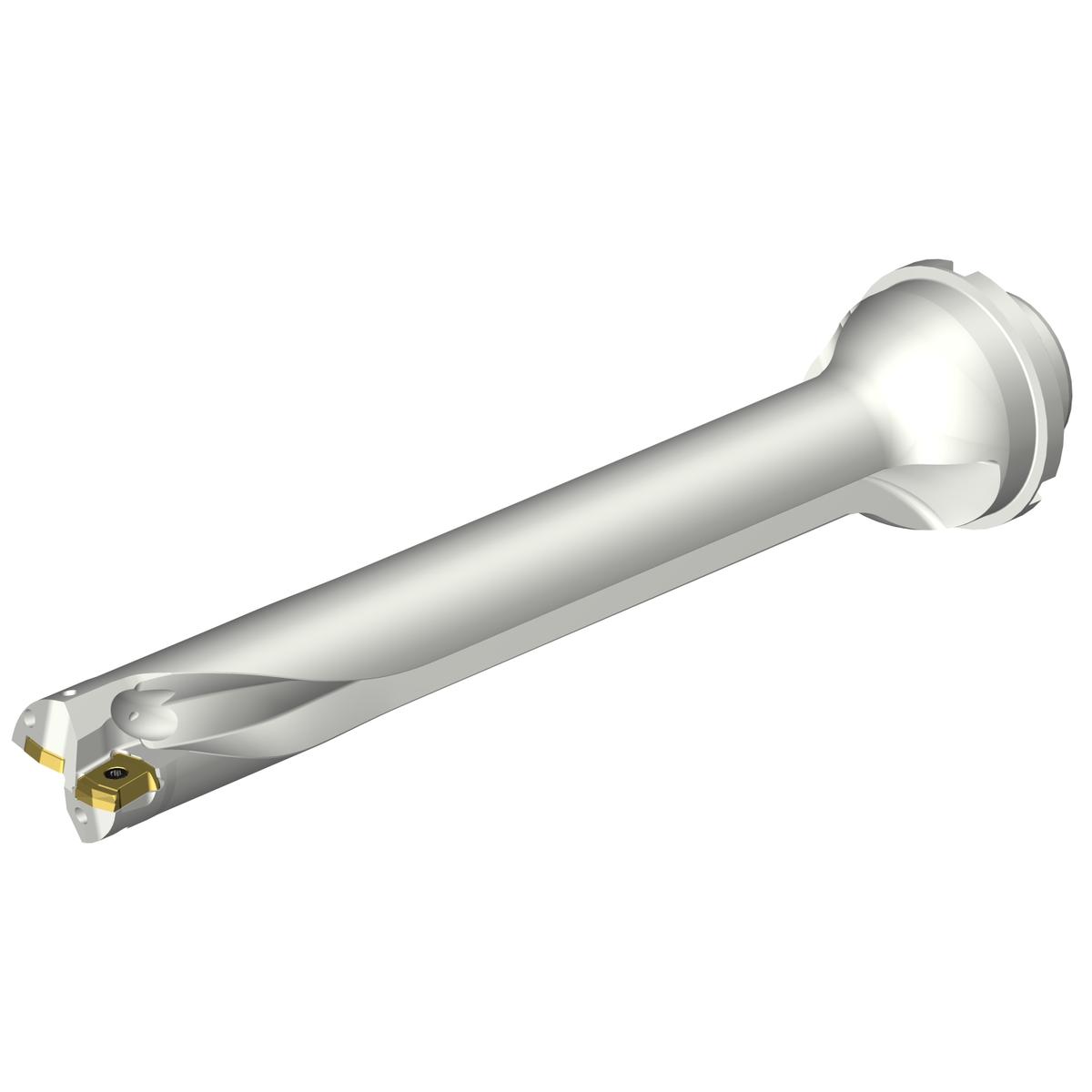

Sandvik Coromant 7755899
Specifications
| Cutting Diameter (Metric) | 33.33 |
|---|---|
| Shank Diameter (Metric) | 40 |
| Series | CoroDrill DS20 |
| Cutting Diameter (Inch) | 1.31 |
| Shank Diameter (Inch) | 1.58 |
| Depth x Diameter Ratio | 7 x D |
| Short Description | CoroDrill® DS20 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 33.33 mm |
| Shank Diameter | 40 mm |
| Coolant Through | Yes |
| ANSI Code | DS20-D3332DM40-07 |
| Overall Length (Decimal) | 11.64 |
| Overall Length (Metric) | 295.65 |
| Functional Length (Decimal) | 11.01 |
| Point Length (Decimal) | 0.04 |
| Point Length (Metric) | 1 |
| Functional Length (Metric) | 279.64 |
| Body Length (Decimal) | 9.34 |
| Body Length (Metric) | 237.19 |
| Usable Length (Decimal) | 9.22 |
| Usable Length (Metric) | 234.28 |
| Cutting Edge Angle | 81 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Lower (Decimal) | -0.003937 |
| Achievable Hole Tolerance Lower (Metric) | -0.1 |
| Achievable Hole Tolerance Upper (Decimal) | 0.02 |
| Achievable Hole Tolerance Upper (Metric) | 0.5 |
| Usable Length Diameter Ratio | 7.03 |
| Torque | 2 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Country of Origin | United States |
| Base Item Number | 2108 |
| Body Length (Inch) | 9.34 |
| Max. Adjustment Limit (Decimal) | 0.09 |
| Max. Adjustment Limit (Metric) | 2.32 |
| Max. Rotational Speed | 3000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 3.206 LB |
| Height Packed Product Metric | 80 mm |
| Height Packed Product Imperial | 3.15 inch |
| ISO Code (packed) | DS20-D3332DM40-07 |
| Length Packed Product Metric | 300 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DS20-D3332DM40-07 |
| Length Packed Product Imperial | 11.811 inch |
| EAN Code | 7323224556157 |
