Sandvik Coromant
7755921

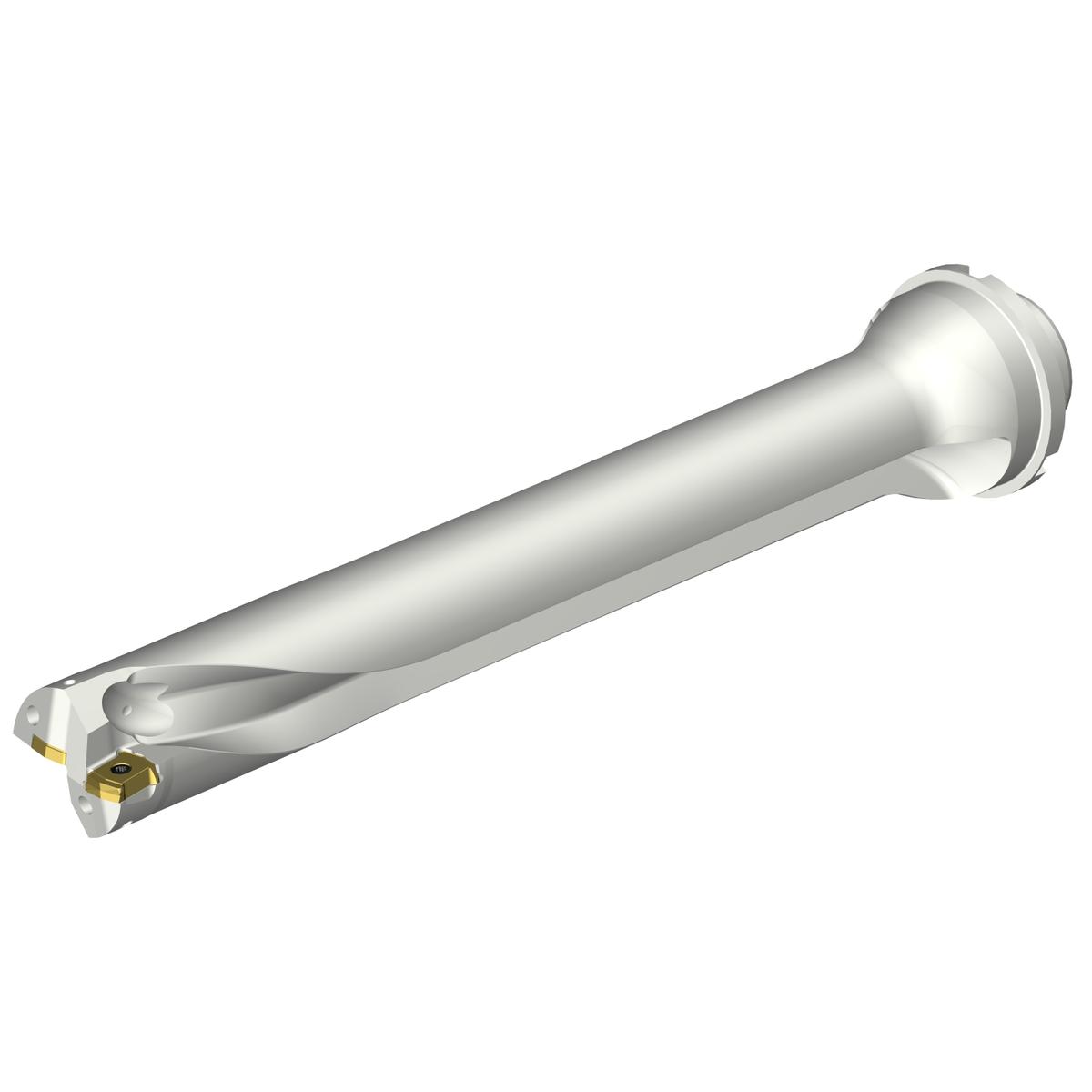

Sandvik Coromant 7755921
Specifications
| Cutting Diameter (Metric) | 40 |
|---|---|
| Shank Diameter (Metric) | 40 |
| Series | CoroDrill DS20 |
| Cutting Diameter (Inch) | 1.58 |
| Shank Diameter (Inch) | 1.58 |
| Depth x Diameter Ratio | 7 x D |
| Short Description | CoroDrill® DS20 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 40 mm |
| Shank Diameter | 40 mm |
| Coolant Through | Yes |
| ANSI Code | DS20-D4000DM40-07 |
| Overall Length (Decimal) | 13.47 |
| Overall Length (Metric) | 342 |
| Functional Length (Decimal) | 12.84 |
| Point Length (Decimal) | 0.04 |
| Point Length (Metric) | 1 |
| Functional Length (Metric) | 326 |
| Body Length (Decimal) | 11.18 |
| Body Length (Metric) | 284 |
| Usable Length (Decimal) | 11.06 |
| Usable Length (Metric) | 281 |
| Cutting Edge Angle | 81 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Lower (Decimal) | -0.003937 |
| Achievable Hole Tolerance Lower (Metric) | -0.1 |
| Achievable Hole Tolerance Upper (Decimal) | 0.02 |
| Achievable Hole Tolerance Upper (Metric) | 0.5 |
| Usable Length Diameter Ratio | 7.025 |
| Torque | 2 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Country of Origin | United States |
| Base Item Number | 2108 |
| Body Length (Inch) | 11.18 |
| Max. Adjustment Limit (Decimal) | 0.03 |
| Max. Adjustment Limit (Metric) | 0.72 |
| Max. Rotational Speed | 3000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 5.512 LB |
| Height Packed Product Metric | 105 mm |
| Height Packed Product Imperial | 4.134 inch |
| ISO Code (packed) | DS20-D4000DM40-07 |
| Length Packed Product Metric | 350 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DS20-D4000DM40-07 |
| Length Packed Product Imperial | 13.78 inch |
| EAN Code | 7323224556379 |
