Sandvik Coromant
7781592
Sandvik Coromant 7781592
Specifications
| Coolant Fed | No |
|---|---|
| Coating/Finish | TiAlSiN+TiSiN |
| Overall Length (Metric) | 79 |
| Diameter (Inch) | 0.26 |
| Material | Solid Carbide |
| Diameter (Metric) | 6.6 |
| Type | High Performance |
| Overall Length (Inch) | 3.11 |

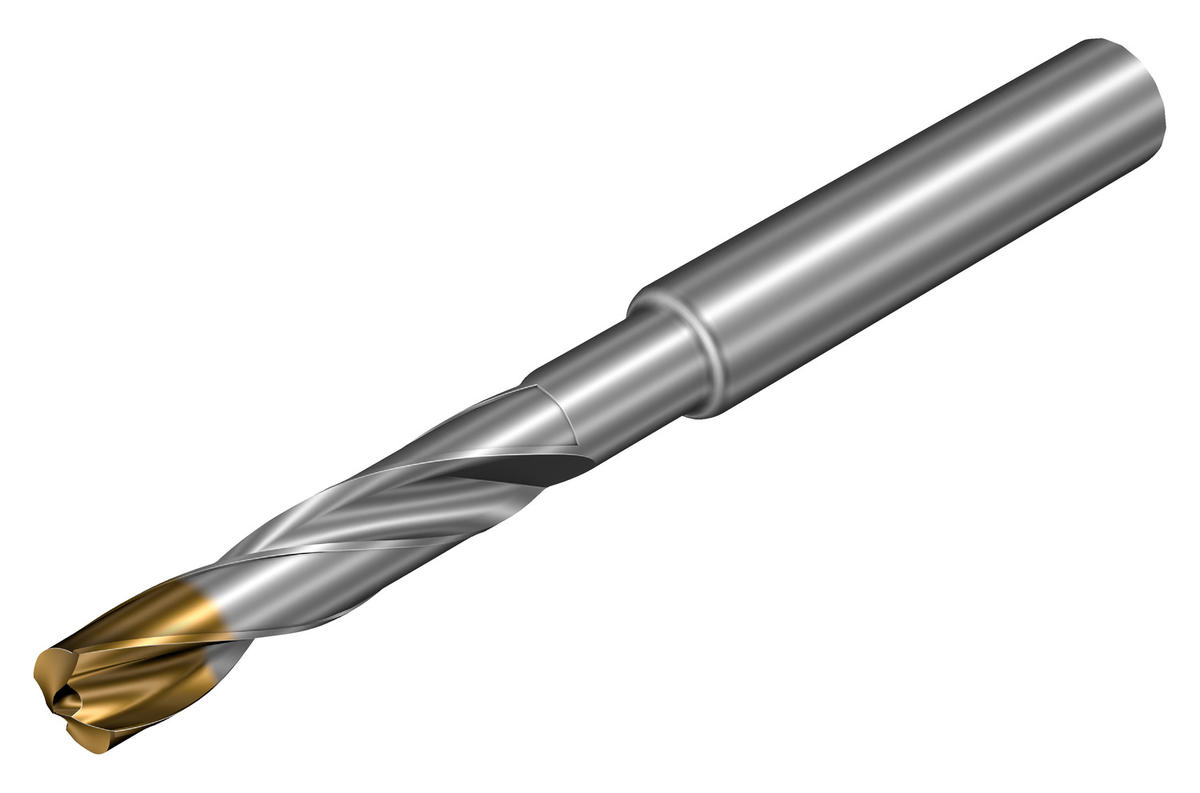

| Short Description | CoroDrill® 860 solid carbide drill |
| Unit Of Measure | Metric |
| Point Angle | 140 degrees |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8 |
| Connection Diameter Tolerance | H6 |
| Usable Length (Decimal) | 0.83 |
| Usable Length (Metric) | 21 |
| Diameter | 6.6 mm |
| Flute Length | 34 mm |
| Overall Length | 79 mm |
| Shank Type | Cylindrical |
| Series | CoroDrill 860 |
| Country of Origin | China |
| ANSI Code | 860.1-0660-020A0-GM X1BM |
| Coating Process Type | PVD |
| Depth x Diameter Ratio | 3 x D |
| Grade | X1BM |
| Point Length (Decimal) | 0.04 |
| Point Length (Metric) | 1.1 |
| Achievable Hole Tolerance | H9 |
| Functional Length (Decimal) | 3.07 |
| Functional Length (Metric) | 77.9 |
| Chip Flute Length (Decimal) | 1.34 |
| Chip Flute Length (Metric) | 34 |
| ISO Material Classification | PMKNSH |
| Usable Length Diameter Ratio | 3.182 |
| Coolant Entry Style Code | 0: Without Coolant |
| Base Item Number | 2009 |
| EAN Code | 7323224675681 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 11093 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.101 LB |
| Height Packed Product Metric | 15 mm |
| Height Packed Product Imperial | 0.591 inch |
| ISO Code (packed) | 860.1-0660-020A0-GMX1BM |
| Length Packed Product Metric | 90 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 860.1-0660-020A0-GM X1BM |
| Length Packed Product Imperial | 3.543 inch |
| Substrate Type | Carbide |
