Sandvik Coromant
7782503

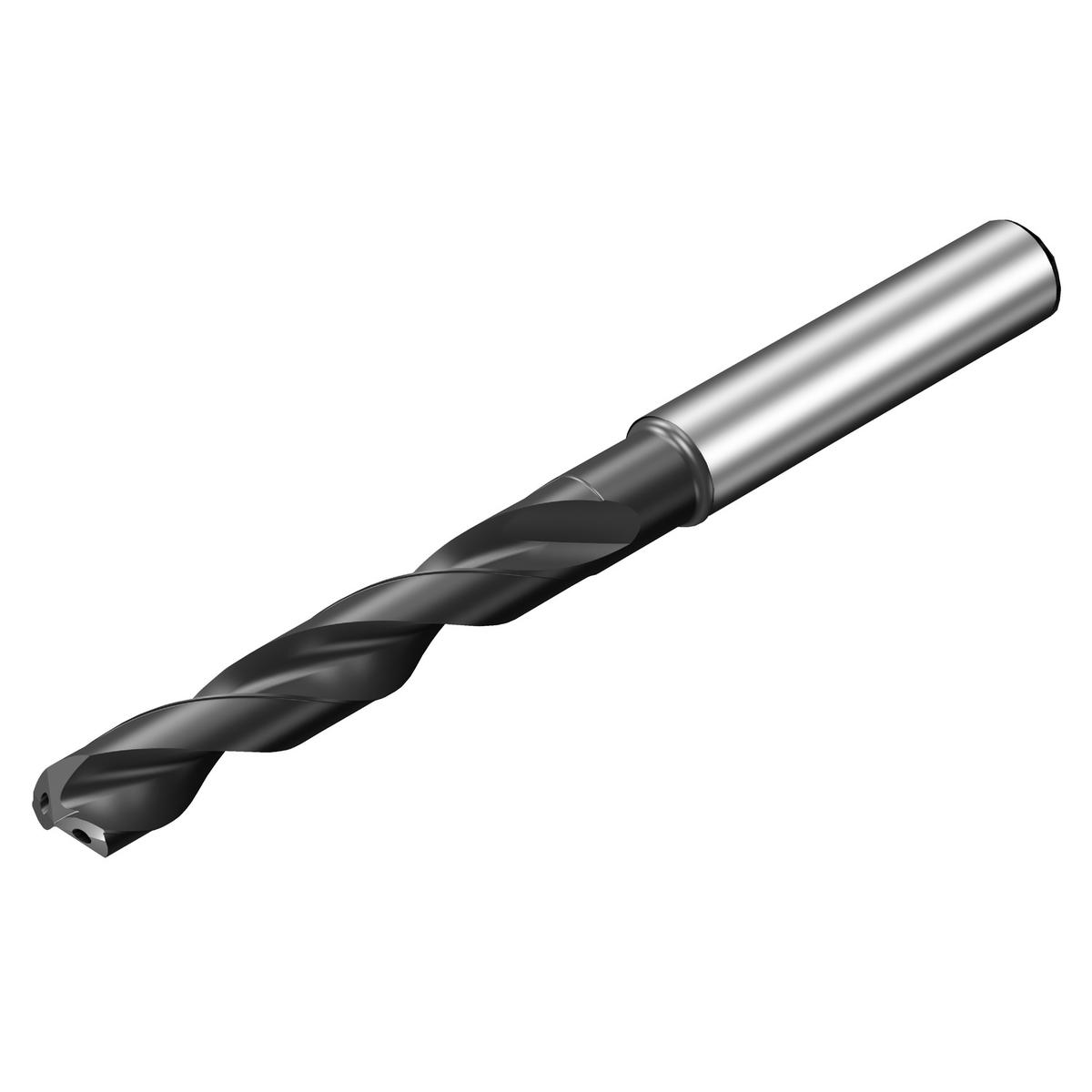

Sandvik Coromant 7782503
Specifications
| Coolant Fed | Yes |
|---|---|
| Coating/Finish | AlTiN |
| Overall Length (Metric) | 91 |
| Diameter (Inch) | 0.27 |
| Material | Solid Carbide |
| Diameter (Metric) | 6.9 |
| Type | High Performance |
| Overall Length (Inch) | 3.58 |
| Short Description | CoroDrill® 860 solid carbide drill |
| Unit Of Measure | Metric |
| Point Angle | 140 degrees |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8 |
| Connection Diameter Tolerance | H6 |
| Usable Length (Decimal) | 1.41 |
| Usable Length (Metric) | 35.8 |
| Diameter | 6.9 mm |
| Flute Length | 53 mm |
| Overall Length | 91 mm |
| Shank Type | Cylindrical |
| Standard | DIN 6537 L |
| Series | CoroDrill 860 |
| Country of Origin | China |
| ANSI Code | 860.1-0690-035A1-SM 1210 |
| Coating Process Type | PVD |
| Depth x Diameter Ratio | 5 x D |
| Grade | 1210 |
| Point Length (Decimal) | 0.05 |
| Point Length (Metric) | 1.26 |
| Achievable Hole Tolerance | H9 |
| Functional Length (Decimal) | 3.54 |
| Functional Length (Metric) | 89.84 |
| Chip Flute Length (Decimal) | 2.09 |
| Chip Flute Length (Metric) | 53 |
| Coolant Pressure (Bar) | 20 |
| ISO Material Classification | S |
| Usable Length Diameter Ratio | 5.188 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Base Item Number | 2009 |
| Coolant Pressure (lbf/in2) | 290.075 |
| EAN Code | 7323224681644 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 3229 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.11 LB |
| Height Packed Product Metric | 25 mm |
| Height Packed Product Imperial | 0.984 inch |
| ISO Code (packed) | 860.1-0690-035A1-SM1210 |
| Length Packed Product Metric | 155 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 860.1-0690-035A1-SM 1210 |
| Length Packed Product Imperial | 6.102 inch |
| Substrate Type | Carbide |
