Sandvik Coromant
7783267

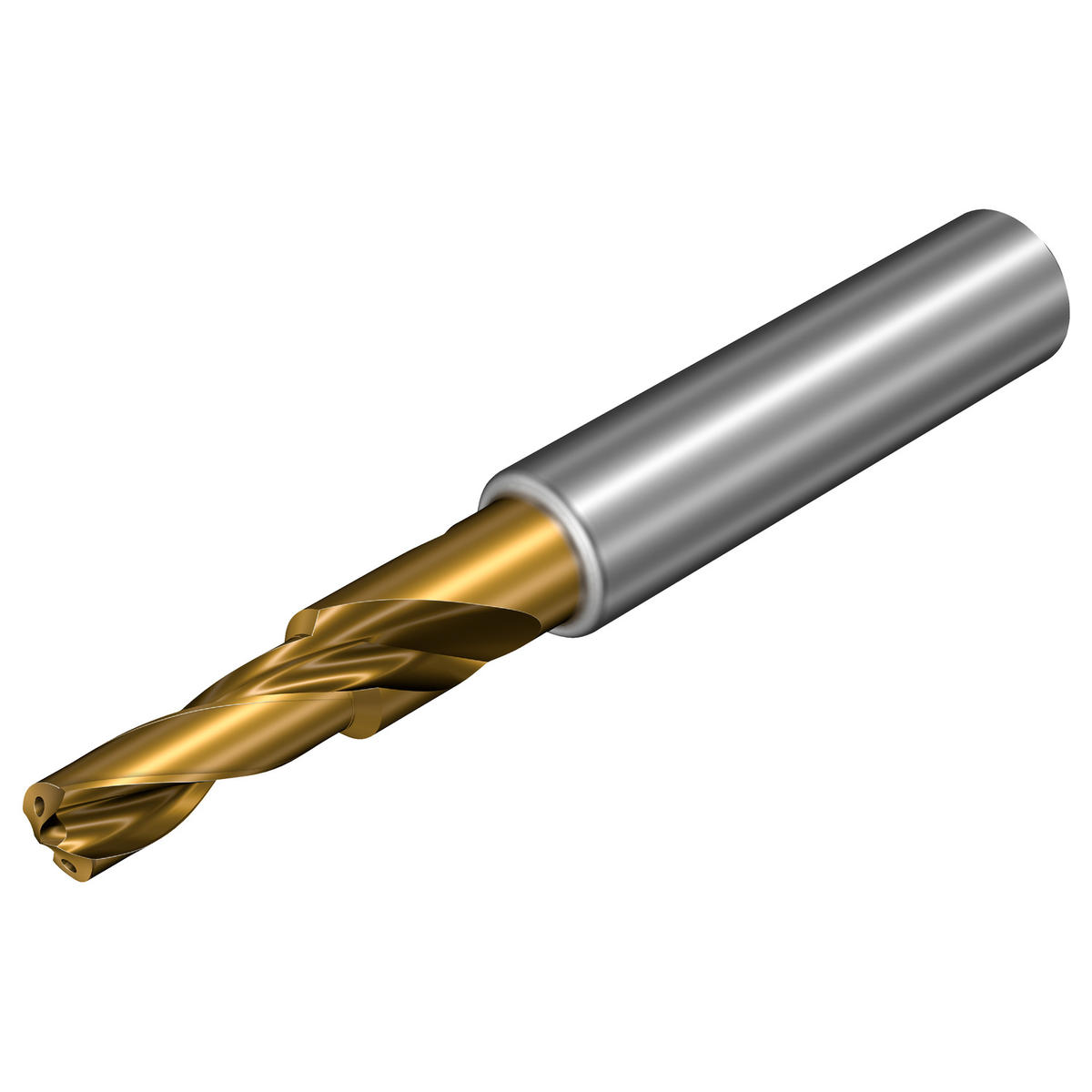

Sandvik Coromant 7783267
Specifications
| Overall Length (Inch) | 3.5 |
|---|---|
| Series | CoroDrill 860 |
| Material | Solid Carbide |
| Overall Length (Metric) | 89 |
| Coating/Finish | TiAlSiN+TiSiN |
| Short Description | CoroDrill® 860 solid carbide step and chamfer drill |
| Unit Of Measure | Metric |
| Diameter | 6.75 mm |
| Shank Type | Cylindrical |
| Shank Size | 10 mm |
| ANSI Code | 860.2-0675-022A1-GM X1BM |
| Point Angle | 140 degrees |
| Coolant Through | Yes |
| Grade | X1BM |
| Coating Process Type | PVD |
| Point Length (Decimal) | 0.05 |
| Point Length (Metric) | 1.2 |
| Step Diameter Length (Decimal) | 0.8 |
| Step Diameter Length (Metric) | 20.3 |
| Chip Flute Length (Decimal) | 1.46 |
| Chip Flute Length (Metric) | 37 |
| Functional Length (Decimal) | 3.46 |
| Functional Length (Metric) | 87.8 |
| Usable Length (Decimal) | 0.89 |
| Usable Length (Metric) | 22.7 |
| Step Included Angle | 90 degrees |
| Achievable Hole Tolerance | H9 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Material Classification Level All | PMKNSH |
| Country of Origin | China |
| Base Item Number | 2009 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 8021 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.172 LB |
| Height Packed Product Metric | 20 mm |
| Height Packed Product Imperial | 0.787 inch |
| ISO Code (packed) | 860.2-0675-022A1-GMX1BM |
| Length Packed Product Metric | 98 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 860.2-0675-022A1-GM X1BM |
| Length Packed Product Imperial | 3.858 inch |
| EAN Code | 7323224685406 |
| Substrate Type | Carbide |
