Sandvik Coromant
7790721

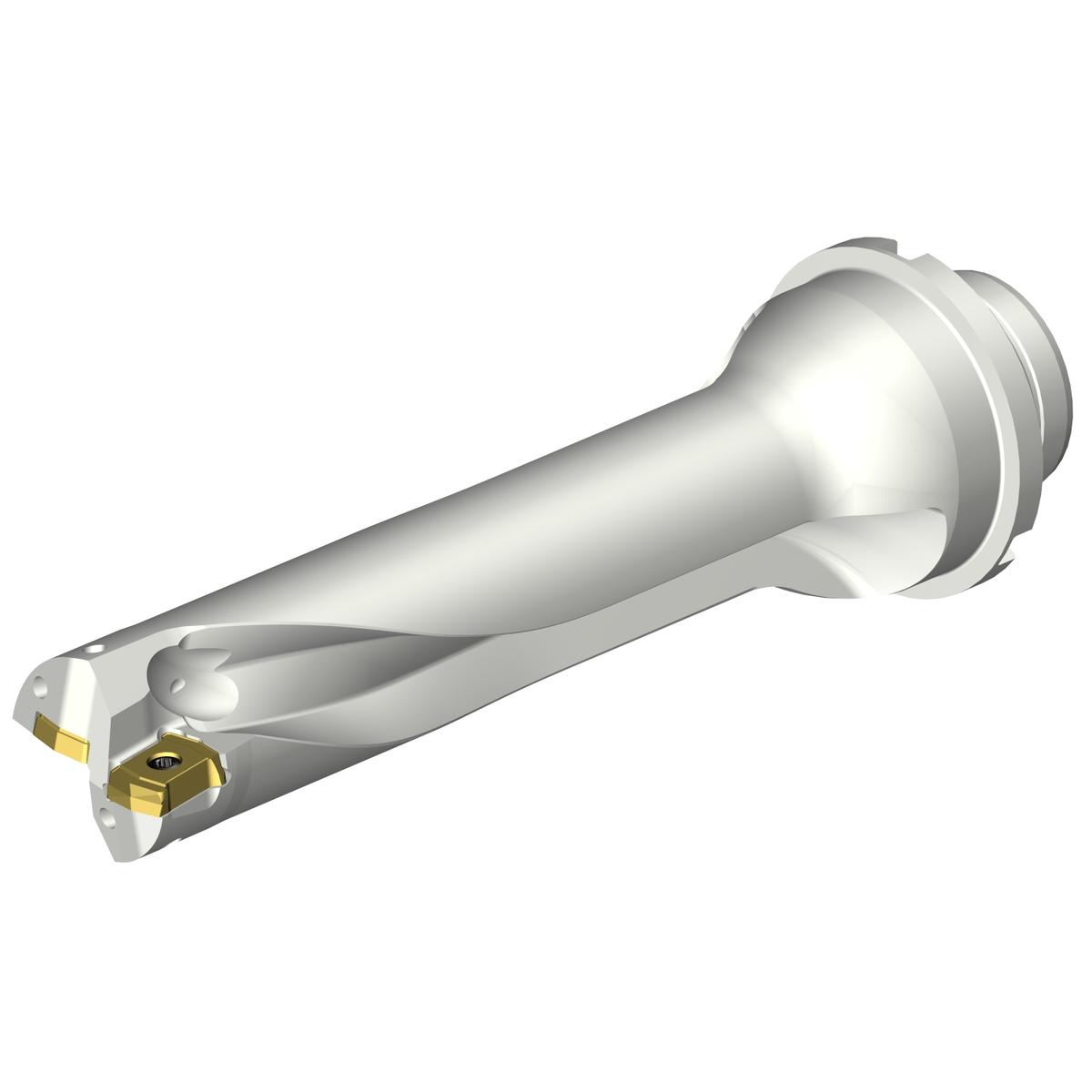

Sandvik Coromant 7790721
Specifications
| Cutting Diameter (Metric) | 29 |
|---|---|
| Shank Diameter (Metric) | 32 |
| Series | CoroDrill DS20 |
| Cutting Diameter (Inch) | 1.14 |
| Shank Diameter (Inch) | 1.26 |
| Depth x Diameter Ratio | 4 x D |
| Short Description | CoroDrill® DS20 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 29 mm |
| Shank Diameter | 32 mm |
| Coolant Through | Yes |
| ANSI Code | DS20-D2900DM32-04 |
| Overall Length (Decimal) | 6.69 |
| Overall Length (Metric) | 170 |
| Functional Length (Decimal) | 6.07 |
| Point Length (Decimal) | 0.03 |
| Point Length (Metric) | 0.83 |
| Functional Length (Metric) | 154.17 |
| Body Length (Decimal) | 4.72 |
| Body Length (Metric) | 120 |
| Usable Length (Decimal) | 4.6 |
| Usable Length (Metric) | 116.83 |
| Cutting Edge Angle | 81 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.01 |
| Achievable Hole Tolerance Upper (Metric) | 0.33 |
| Usable Length Diameter Ratio | 4.029 |
| Torque | 1.4 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Country of Origin | United States |
| Base Item Number | 2108 |
| Body Length (Inch) | 4.72 |
| Max. Adjustment Limit (Decimal) | 0.07 |
| Max. Adjustment Limit (Metric) | 1.84 |
| Max. Rotational Speed | 12000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.669 LB |
| Height Packed Product Metric | 75 mm |
| Height Packed Product Imperial | 2.953 inch |
| ISO Code (packed) | DS20-D2900DM32-04 |
| Length Packed Product Metric | 185 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DS20-D2900DM32-04 |
| Length Packed Product Imperial | 7.283 inch |
| EAN Code | 7323224721890 |
