Sandvik Coromant
7790723

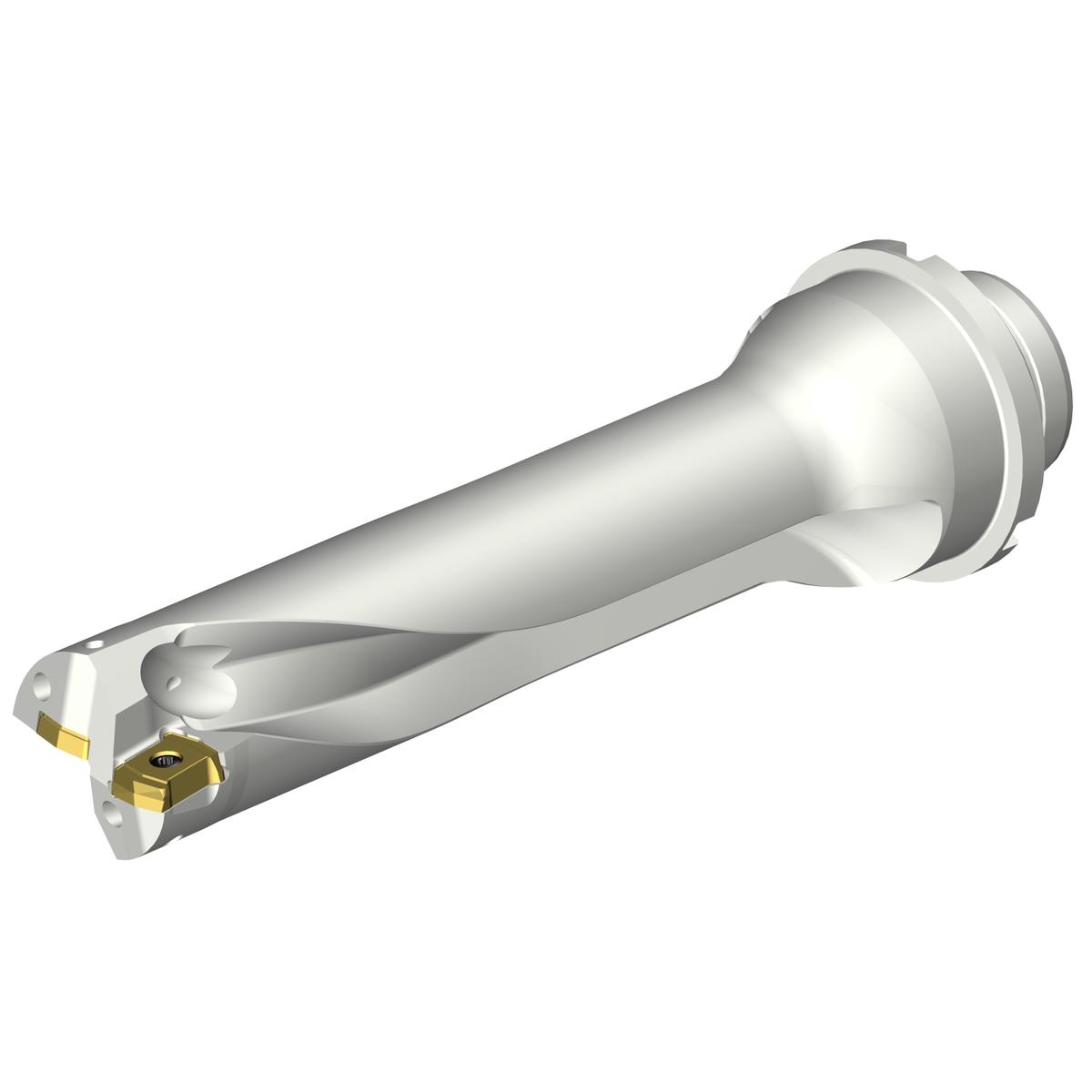

Sandvik Coromant 7790723
Specifications
| Cutting Diameter (Metric) | 31 |
|---|---|
| Shank Diameter (Metric) | 32 |
| Series | CoroDrill DS20 |
| Cutting Diameter (Inch) | 1.22 |
| Shank Diameter (Inch) | 1.26 |
| Depth x Diameter Ratio | 4 x D |
| Short Description | CoroDrill® DS20 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 31 mm |
| Shank Diameter | 32 mm |
| Coolant Through | Yes |
| ANSI Code | DS20-D3100DM32-04 |
| Overall Length (Decimal) | 7.09 |
| Overall Length (Metric) | 180 |
| Functional Length (Decimal) | 6.46 |
| Point Length (Decimal) | 0.03 |
| Point Length (Metric) | 0.83 |
| Functional Length (Metric) | 164.17 |
| Body Length (Decimal) | 5.04 |
| Body Length (Metric) | 128 |
| Usable Length (Decimal) | 4.92 |
| Usable Length (Metric) | 124.83 |
| Cutting Edge Angle | 81 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.01 |
| Achievable Hole Tolerance Upper (Metric) | 0.35 |
| Usable Length Diameter Ratio | 4.027 |
| Torque | 1.4 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Country of Origin | United States |
| Base Item Number | 2108 |
| Body Length (Inch) | 5.04 |
| Max. Adjustment Limit (Decimal) | 0.05 |
| Max. Adjustment Limit (Metric) | 1.28 |
| Max. Rotational Speed | 12000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.764 LB |
| Height Packed Product Metric | 70 mm |
| Height Packed Product Imperial | 2.756 inch |
| ISO Code (packed) | DS20-D3100DM32-04 |
| Length Packed Product Metric | 190 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DS20-D3100DM32-04 |
| Length Packed Product Imperial | 7.48 inch |
| EAN Code | 7323224722118 |
