Sandvik Coromant
7790725

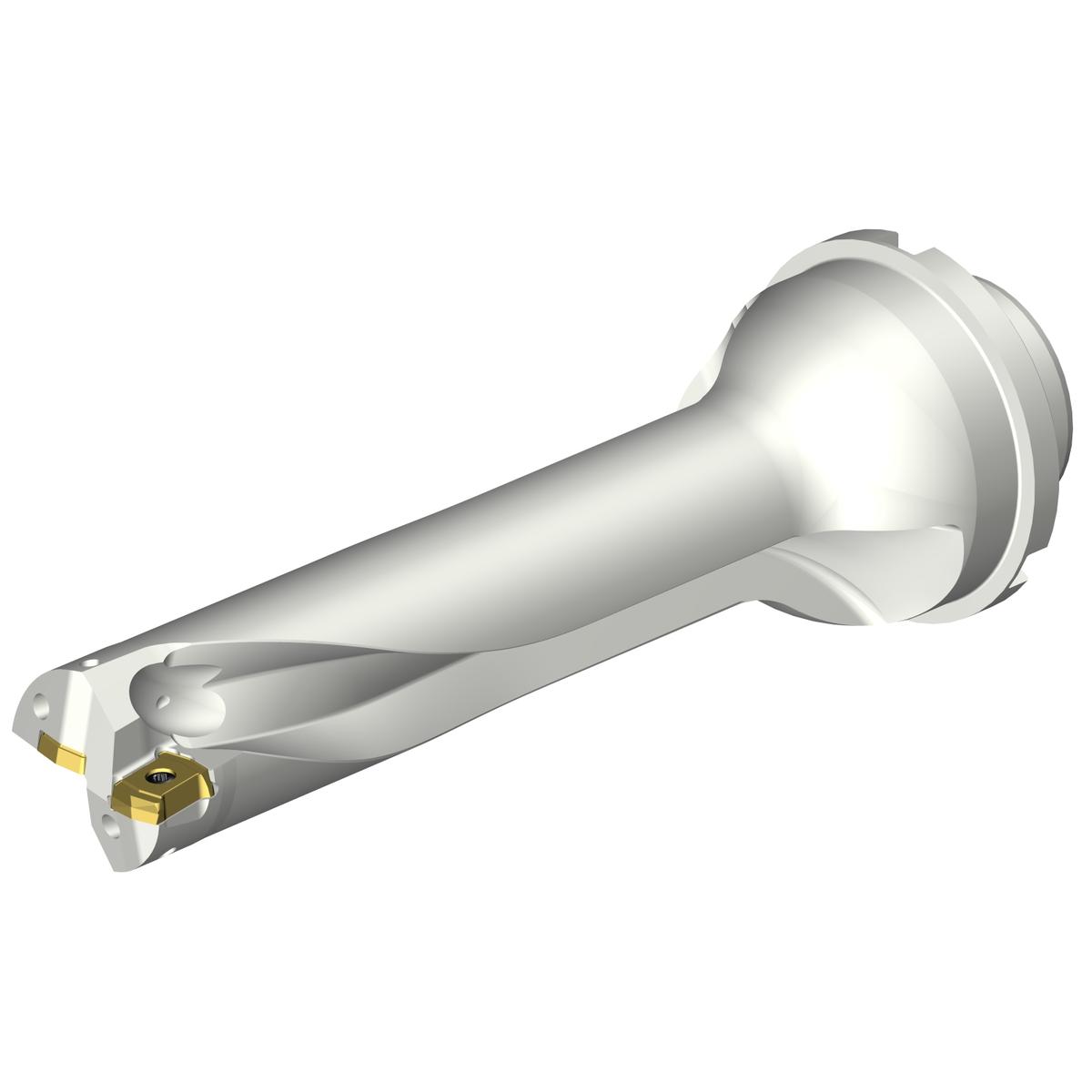

Sandvik Coromant 7790725
Specifications
| Cutting Diameter (Metric) | 33 |
|---|---|
| Shank Diameter (Metric) | 40 |
| Series | CoroDrill DS20 |
| Cutting Diameter (Inch) | 1.3 |
| Shank Diameter (Inch) | 1.58 |
| Depth x Diameter Ratio | 4 x D |
| Short Description | CoroDrill® DS20 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 33 mm |
| Shank Diameter | 40 mm |
| Coolant Through | Yes |
| ANSI Code | DS20-D3300DM40-04 |
| Overall Length (Decimal) | 7.68 |
| Overall Length (Metric) | 195 |
| Functional Length (Decimal) | 7.05 |
| Point Length (Decimal) | 0.03 |
| Point Length (Metric) | 0.83 |
| Functional Length (Metric) | 179.17 |
| Body Length (Decimal) | 5.35 |
| Body Length (Metric) | 136 |
| Usable Length (Decimal) | 5.23 |
| Usable Length (Metric) | 132.83 |
| Cutting Edge Angle | 81 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.01 |
| Achievable Hole Tolerance Upper (Metric) | 0.35 |
| Usable Length Diameter Ratio | 4.025 |
| Torque | 1.4 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Country of Origin | United States |
| Base Item Number | 2108 |
| Body Length (Inch) | 5.35 |
| Max. Adjustment Limit (Decimal) | 0.03 |
| Max. Adjustment Limit (Metric) | 0.72 |
| Max. Rotational Speed | 11000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.646 LB |
| Height Packed Product Metric | 80 mm |
| Height Packed Product Imperial | 3.15 inch |
| ISO Code (packed) | DS20-D3300DM40-04 |
| Length Packed Product Metric | 205 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DS20-D3300DM40-04 |
| Length Packed Product Imperial | 8.071 inch |
| EAN Code | 7323224722132 |
