Sandvik Coromant
7802142

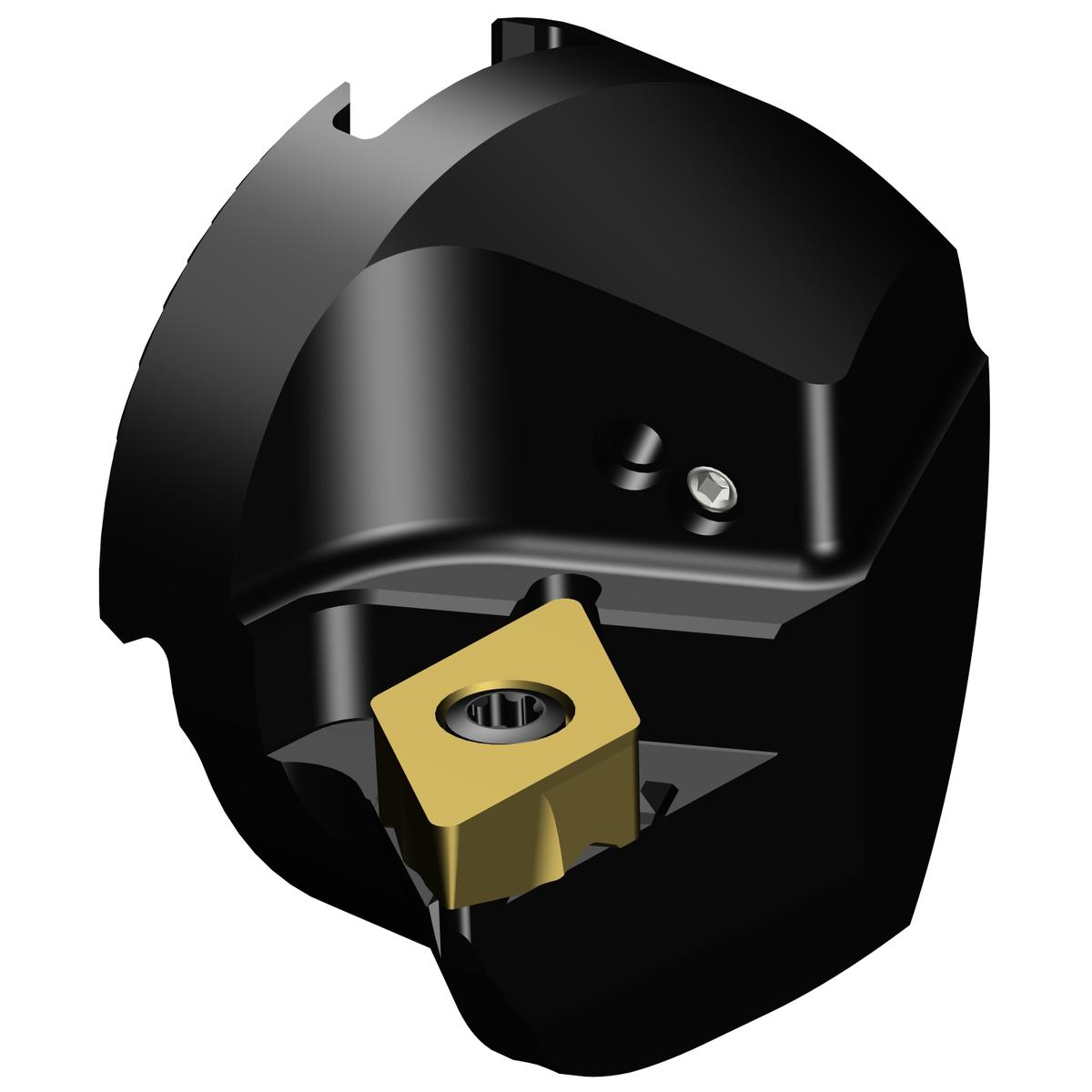

Sandvik Coromant 7802142
Specifications
| Center to Cutting Edge (Inch) | 1.06 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.97 |
| Size | 40 |
| Series | CoroTurn TR |
| Bore Diameter (Metric) | 50 |
| Center to Cutting Edge (Metric) | 27 |
| Short Description | CoroTurn® TR head for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 27 mm |
| Insert Style | TR-DC1308 |
| ANSI Code | TITR-W4L-D13U-27A |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 1160.3 lbf/in2 |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -3 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Tool Lead Angle | -3 degrees |
| Body Diameter (Decimal) | 1.58 |
| Body Diameter (Metric) | 40 |
| Coolant Entry Style Code | 6: Decentral Over Flange |
| Coolant Exit Style Code | 8: Decentral Focused Exit With Nozzles |
| Country of Origin | Norway |
| Base Item Number | 1056 |
| Max. Hole Depth | 29 mm |
| Max. Hole Depth (Decimal) | 1.14 |
| Max. Hole Depth (Metric) | 29 |
| Max. Overhang (Decimal) | 1.14 |
| Max. Overhang (Metric) | 29 |
| Maximum Ramping Angle | 27 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.331 LB |
| Height Packed Product Metric | 55 mm |
| Height Packed Product Imperial | 2.165 inch |
| ISO Code (packed) | TITR-W4L-D13U-27A |
| Length Packed Product Metric | 10 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TITR-W4L-D13U-27A |
| Length Packed Product Imperial | 0.394 inch |
| EAN Code | 7323224769465 |
