Sandvik Coromant
7805875
Sandvik Coromant 7805875
Specifications
| Center to Cutting Edge (Inch) | 1.06 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.97 |
| Size | 40 |
| Series | CoroTurn Prime |
| Bore Diameter (Metric) | 50 |
| Center to Cutting Edge (Metric) | 27 |

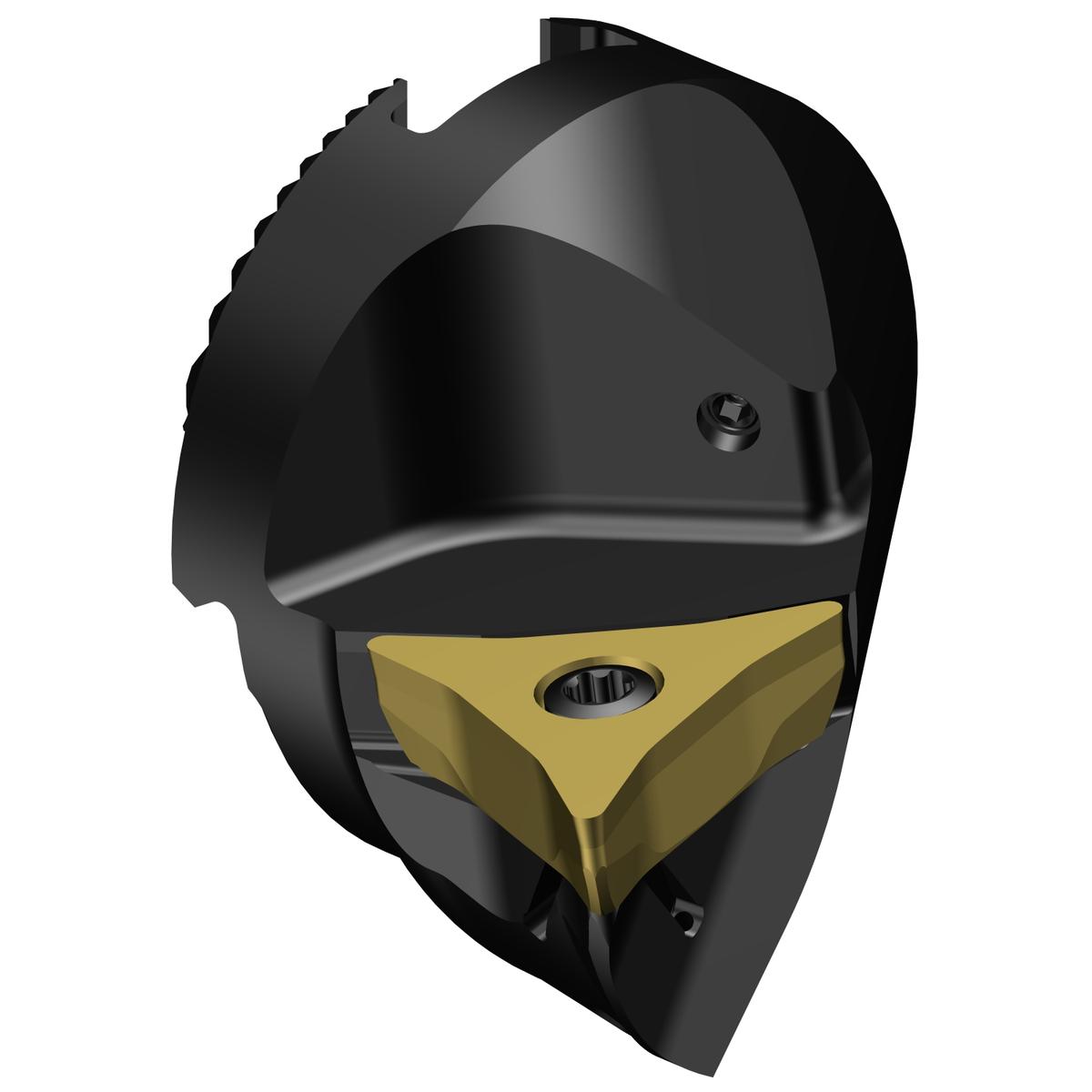

| Short Description | CoroTurn® Prime head for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 27 mm |
| Insert Style | CP-A1108 |
| ANSI Code | TICP-W4L-A1130-27C |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 1015.26 lbf/in2 |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -5 degrees |
| Orthogonal Rake Angle | -5 degrees |
| Tool Cutting Edge Angle | 115 degrees |
| Tool Lead Angle | -25 degrees |
| Body Diameter (Decimal) | 2.76 |
| Body Diameter (Metric) | 70 |
| Coolant Entry Style Code | 6: Decentral Over Flange |
| Coolant Exit Style Code | 7: Axial Inclined Focused Exit With Nozzle |
| Country of Origin | India |
| Base Item Number | 2083 |
| Max. Hole Depth | 35 mm |
| Max. Hole Depth (Decimal) | 1.38 |
| Max. Hole Depth (Metric) | 35 |
| Max. Overhang (Decimal) | 1.38 |
| Max. Overhang (Metric) | 35 |
| Maximum Ramping Angle | 15 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.344 LB |
| ISO Code (packed) | TICP-W4L-A1130-27C |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TICP-W4L-A1130-27C |
| EAN Code | 7323224784574 |
