Sandvik Coromant

7855737

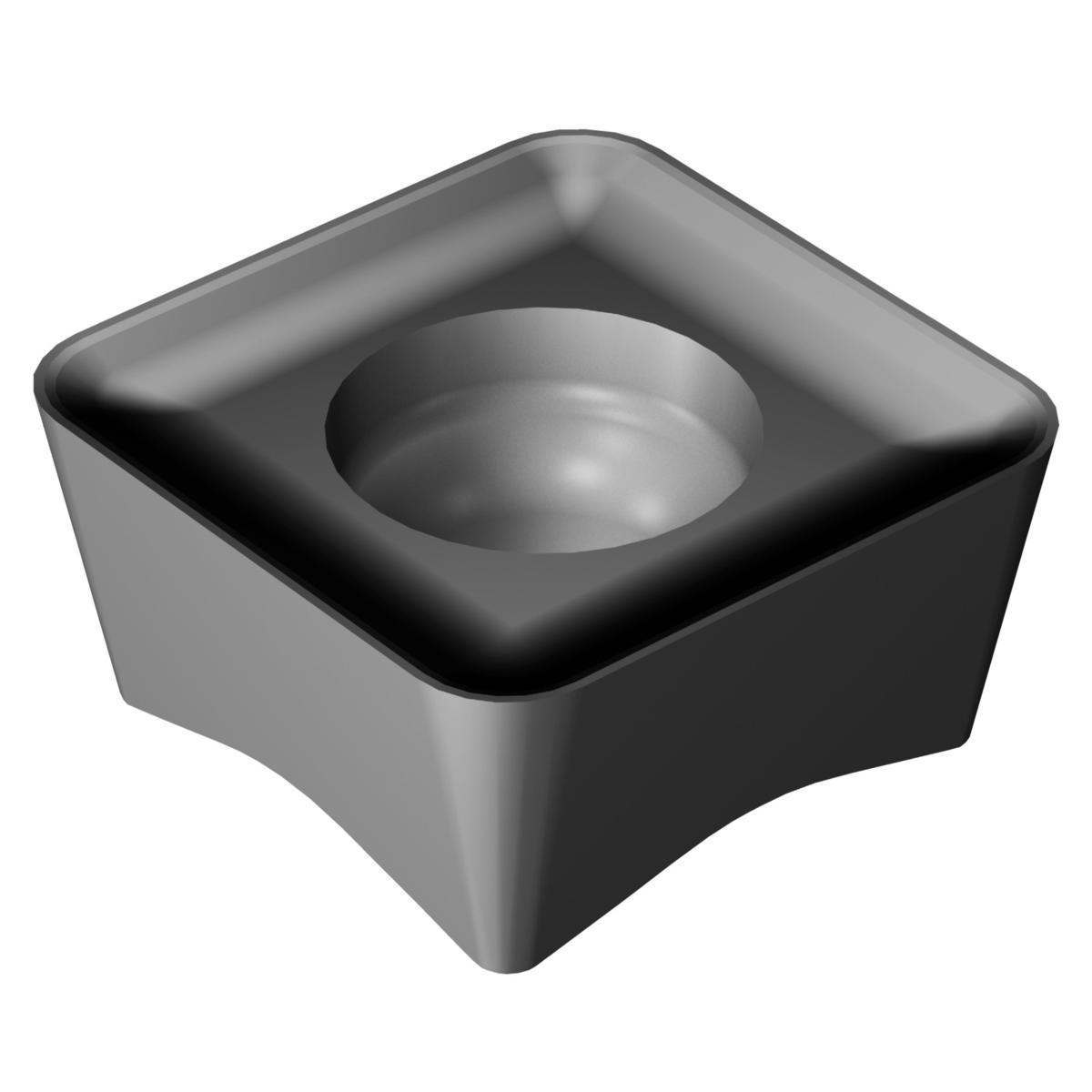

Sandvik Coromant 7855737

Specifications

MaterialWC or Cermet
Corner Radius (Metric)2.8
Corner Radius (Inch)0.11
Coating/FinishTiAlN
Thickness (Metric)3.07
Thickness (Inch)0.12
Short DescriptionCoroMill® 415 insert for milling
ShapeSquare
Style415N
Unit Of MeasureMetric
Country of OriginUnited States
SeriesCoroMill 415
Size703
Grade1010
Inscribed Circle Diameter7 mm
Thickness3.07 mm
Chip Breaker TypeM30
Length (Decimal)0.12
Inscribed Circle Diameter (Decimal)0.28
Inscribed Circle Diameter (Metric)7
ANSI Code415N-07 03 20M-M30 1010
ISO Code415N-07 03 20M-M30 1010
Hand of InsertNeutral
Coner Radius (Inch)0.08
Coner Radius (Metric)2
Coating Process TypePVD
Operation TypeMedium
Mounting StyleScrew/Clamp
Face Land Width (Decimal)0.004
Face Land Width (Metric)0.1
Major Cutting Edge Angle15 degrees
Rake Angle20 degrees
Face Land Angle5 degrees
Substrate TypeCarbide
Number of Cutting Edges4
Wiper Edge Radius (Decimal)0.08
Wiper Edge Radius (Metric)2
Corner Chamfer Width (Decimal)0.004
Corner Chamfer Width (Metric)0.1
ApplicationMilling, General
ISO Material ClassificationH
Base Item Number2081
Insert Size0703
Length3 mm
Max. Depth Of Cut (Decimal)0.05
Max. Depth Of Cut (Metric)1.2
Maximum Depth Of Cut (Inch)0.05
Maximum Depth Of Cut (Metric)1.2
Product TypeIndustrial Supplies
Unit of MeasureMetric
Weight0.002 LB
Height Packed Product Metric11 mm
Insert Style415N
Height Packed Product Imperial0.433 inch
ISO Code (packed)415N-070320M-M301010
Length Packed Product Metric95 mm
Life Cycle State20
ISO Code (unpacked)415N-07 03 20M-M30 1010
Length Packed Product Imperial3.74 inch
EAN Code7323225012645
