Sandvik Coromant
7859255

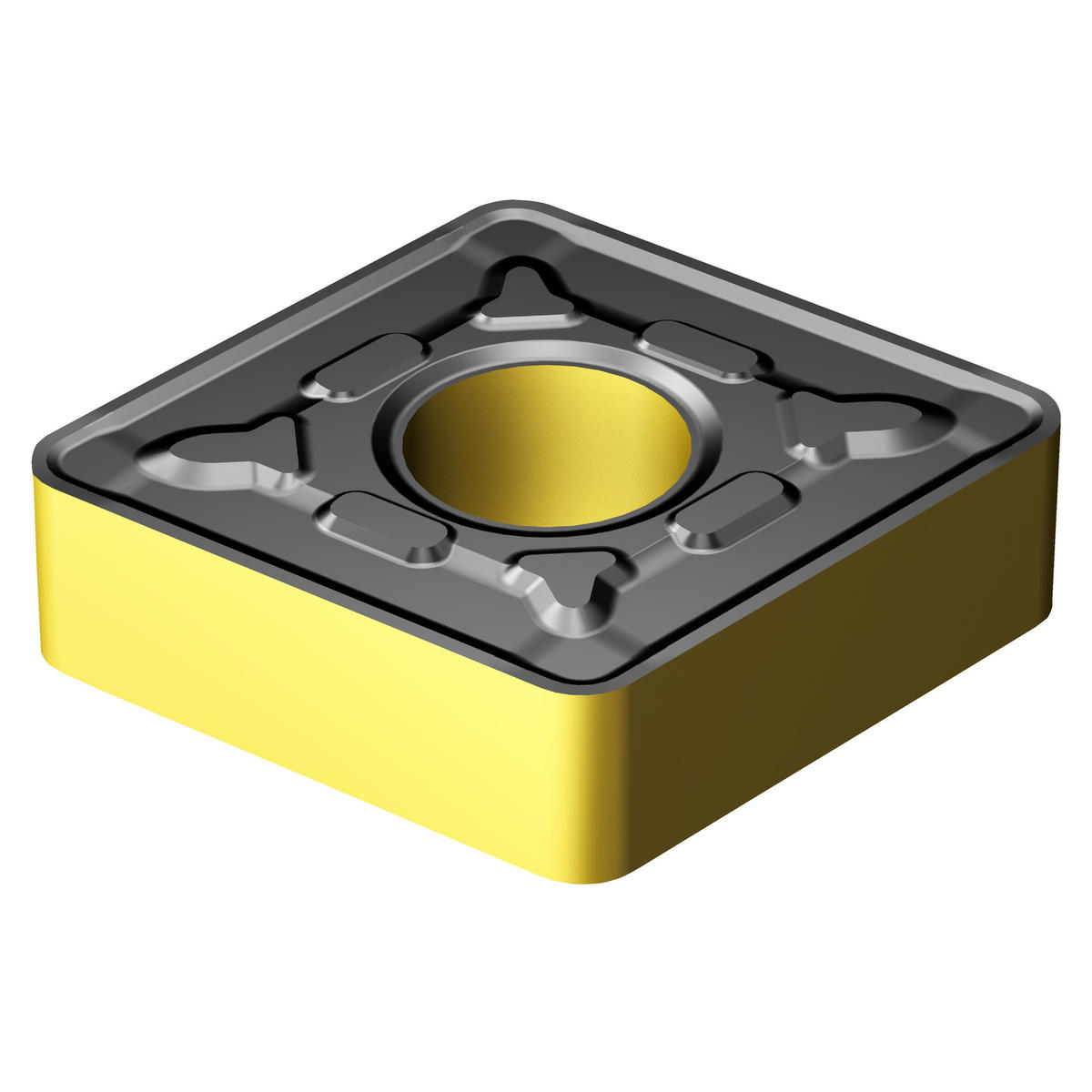

Sandvik Coromant 7859255
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 6.35 |
| Corner Radius (Metric) | 0.79 |
| Material | WC or Cermet |
| Size | 1906 |
| Corner Radius (Inch) | 0.03 |
| Style | CNMG |
| Thickness (Inch) | 0.25 |
| Short Description | T-Max® P insert for turning |
| Grade | 4415 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 19.05 mm |
| Inscribed Circle Diameter (Decimal) | 0.75 |
| Inscribed Circle Diameter (Metric) | 19.05 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 0.73 |
| Length (Metric) | 18.54 |
| Shape | Diamond |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | PR |
| ANSI Code | CNMG 642-PR 4415 |
| ISO Code | CNMG 19 06 08-PR 4415 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.31 |
| Fixing Hole Diameter (Metric) | 7.93 |
| Coating Process Type | CVD |
| Operation Type | Roughing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PK |
| Base Item Number | 1049 |
| Length | 18.54 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.061 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | CNMG |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | CNMG190608-PR4415 |
| Insert Size | 1906 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | CNMG 19 06 08-PR 4415 |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 7323225037969 |
