Sandvik Coromant
7860512
Sandvik Coromant 7860512
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 2.38 |
| Corner Radius (Metric) | 0.4 |
| Material | WC or Cermet |
| Size | 21.51 |
| Corner Radius (Inch) | 0.02 |
| Style | VBMT |
| Thickness (Inch) | 0.09 |

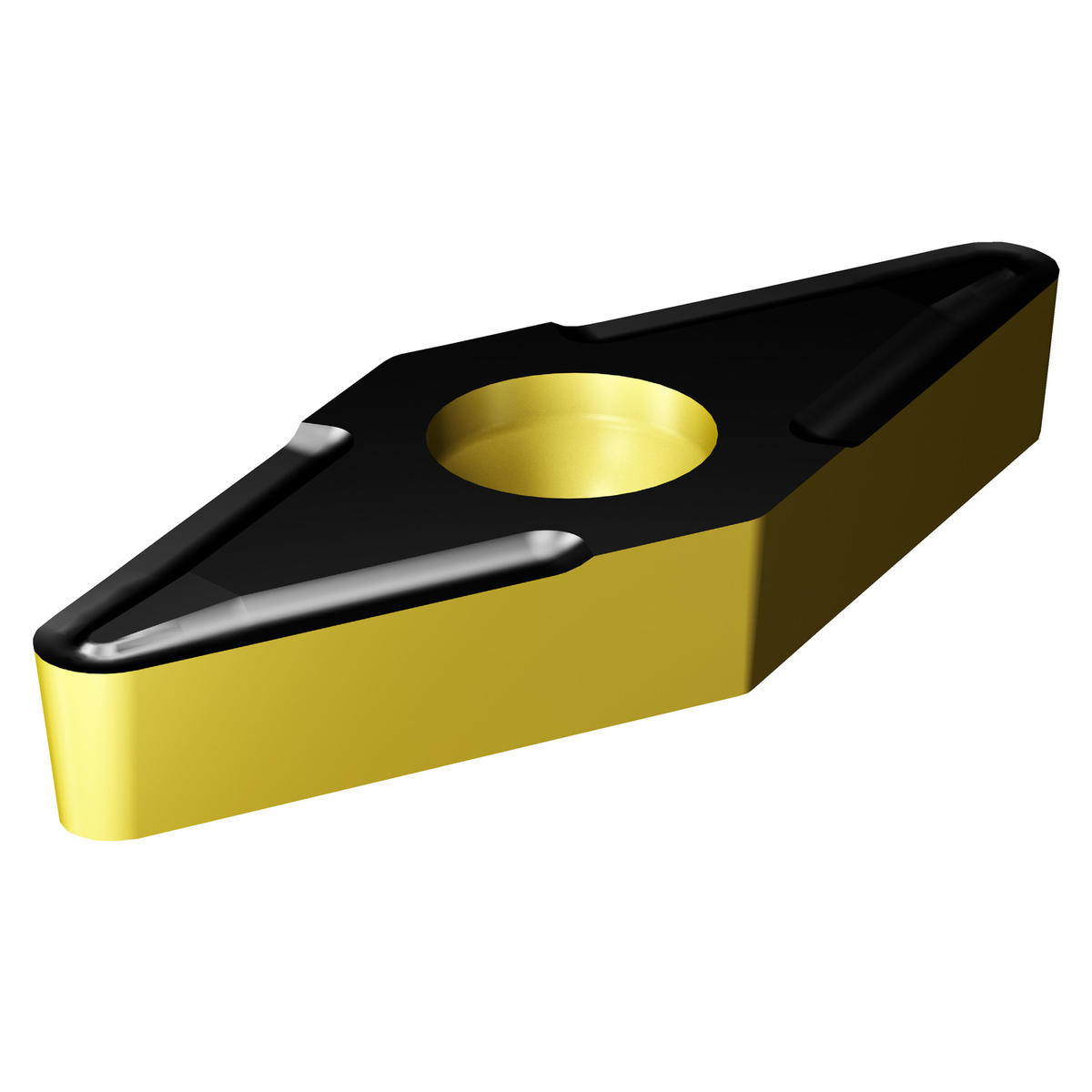

| Short Description | CoroTurn® 107 insert for turning |
| Grade | 4415 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Clearance Angle Major | 5 degrees |
| Length (Decimal) | 0.42 |
| Length (Metric) | 10.67 |
| Shape | Diamond |
| Country of Origin | Sweden |
| Series | CoroTurn 107 |
| Chip Breaker Type | UF |
| ANSI Code | VBMT 2(1.5)1-UF 4415 |
| ISO Code | VBMT 11 02 04-UF 4415 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | CVD |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PK |
| Base Item Number | 1053 |
| Length | 10.67 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | VBMT |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | VBMT110204-UF4415 |
| Insert Size | 21.51 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | VBMT 11 02 04-UF 4415 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323225045278 |
