Sandvik Coromant
7860951
Sandvik Coromant 7860951
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 11 |
| Corner Radius (Metric) | 0.79 |
| Material | WC or Cermet |
| Size | 1011 |
| Corner Radius (Inch) | 0.03 |
| Style | 3-80 |
| Thickness (Inch) | 0.43 |

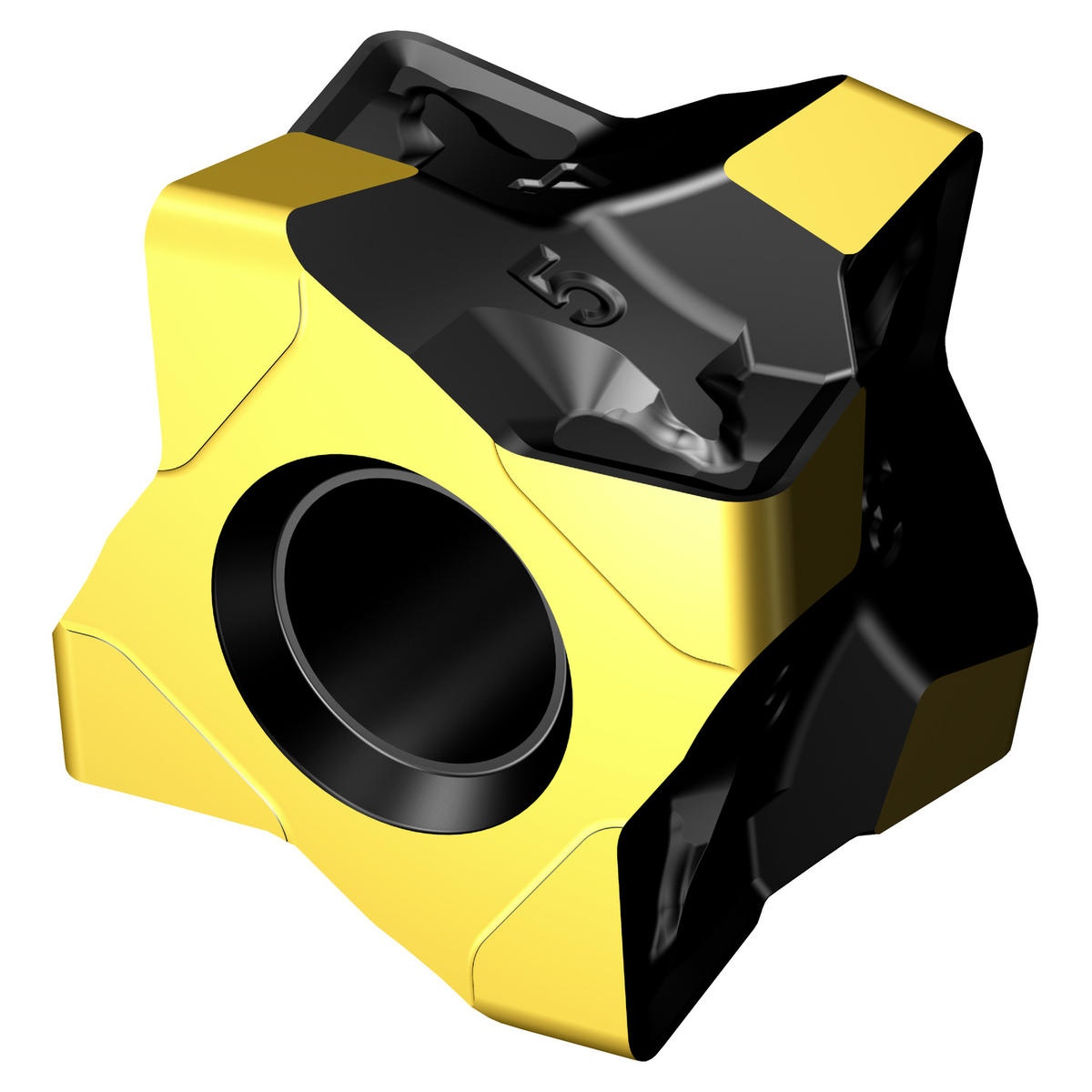

| Short Description | CoroTurn® 300 insert for turning |
| Grade | 4425 |
| Unit Of Measure | Metric |
| Clearance Angle Major | 0 degrees |
| Width (Decimal) | 0.39 |
| Width (Metric) | 10 |
| Length (Decimal) | 0.16 |
| Length (Metric) | 4 |
| Rake Angle | 19 degrees |
| Country of Origin | Sweden |
| Series | CoroTurn 300 |
| Chip Breaker Type | M5W |
| ANSI Code | 3-80-101108-8-M5W 4425 |
| ISO Code | 3-80-101108-8-M5W 4425 |
| Hand of Insert | Neutral |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 8 |
| Major Cutting Edge Angle | 95 degrees |
| Wiper Edge Property | Yes |
| Application | Turning, General |
| ISO Material Classification | PK |
| Base Item Number | 2075 |
| Length | 4 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.024 LB |
| Width | 10 mm |
| Height Packed Product Metric | 20 mm |
| Insert Style | 3-80 |
| Height Packed Product Imperial | 0.787 inch |
| ISO Code (packed) | 3-80-101108-8-M5W4425 |
| Insert Size | 1011 |
| Length Packed Product Metric | 48 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 3-80-101108-8-M5W 4425 |
| Length Packed Product Imperial | 1.89 inch |
| EAN Code | 7323225049191 |
