Sandvik Coromant
7937613

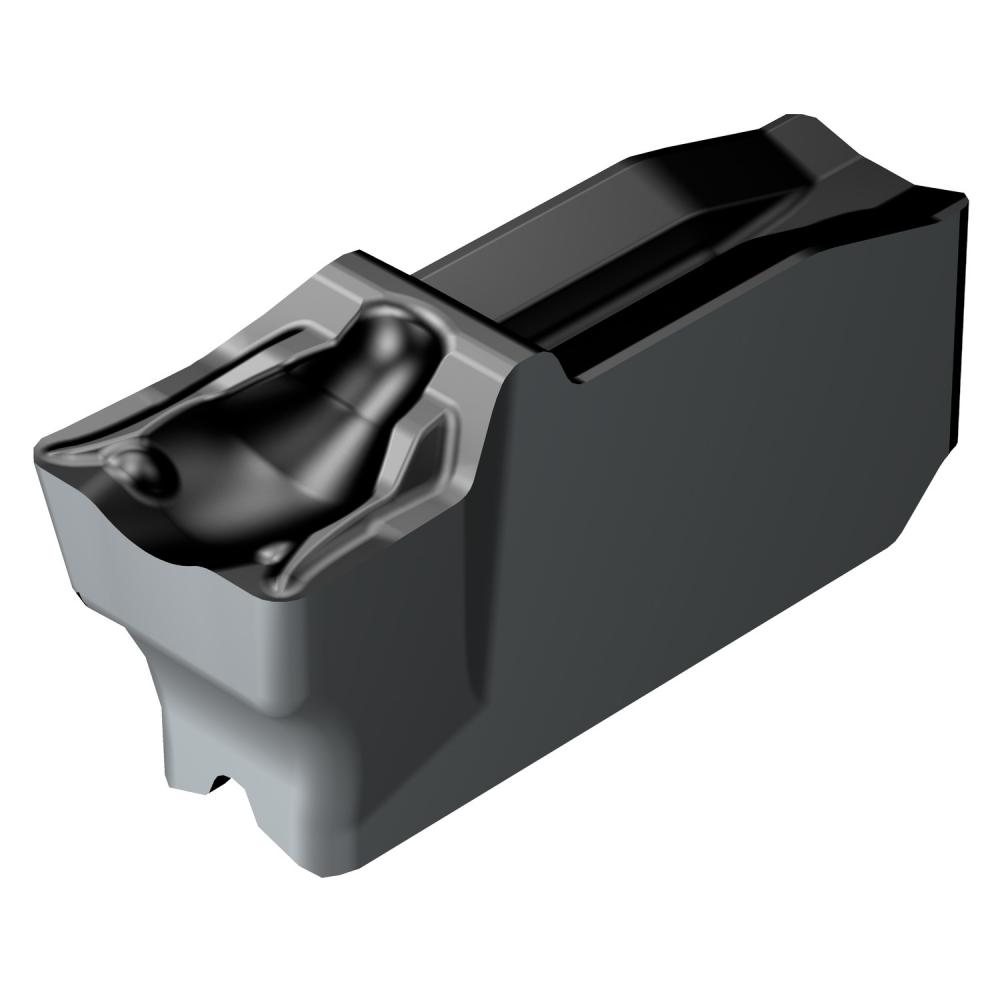

Sandvik Coromant 7937613
Specifications
| Size | H |
|---|---|
| Chip Breaker Type | TF |
| Coating/Finish | TiAlN |
| Material | WC or Cermet |
| Base Item Number | 2123 |
| Cutting Width (Inch) | 0.16 |
| Max. Depth Of Cut (Decimal) | 0.09 |
| Max. Depth Of Cut (Metric) | 2.3 |
| Maximum Depth Of Cut (Inch) | 0.09 |
| Maximum Depth Of Cut (Metric) | 2.3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.011 LB |
| Unit Of Measure | Metric |
| Short Description | CoroCutĀ® QI inserts for grooving |
| Series | CoroCut QI |
| Style | QI-N |
| Grade | 1105 |
| Cutting Width | 4 mm |
| Cutting Width (Decimal) | 0.16 |
| Cutting Width (Metric) | 4 |
| ANSI Code | QI-NH-0400-0003-TF 1105 |
| ISO Code | QI-NH-0400-0003-TF 1105 |
| Insert Seat Size Code | H |
| Hand of Insert | Neutral |
| Coating Process Type | PVD |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Clearance Angle Major | 8 degrees |
| Machine Side Body Angle | 0 degrees |
| Corner Radius Left (Decimal) | 0.01 |
| Corner Radius Left (Metric) | 0.3 |
| Corner Radius Right (Decimal) | 0.01 |
| Corner Radius Right (Metric) | 0.3 |
| Corner Radius Lower Tolerance (Decimal) | -0.001969 |
| Corner Radius Lower Tolerance (Metric) | -0.05 |
| Corner Radius Upper Tolerance (Decimal) | 0.001969 |
| Corner Radius Upper Tolerance (Metric) | 0.05 |
| Cutting Width Lower Tolerance (Decimal) | -0.001969 |
| Cutting Width Lower Tolerance (Metric) | -0.05 |
| Cutting Width Upper Tolerance (Decimal) | 0.001969 |
| Cutting Width Upper Tolerance (Metric) | 0.05 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | MNS |
| Country of Origin | United States |
| Height Packed Product Metric | 13 mm |
| Insert Style | QI-N |
| Height Packed Product Imperial | 0.512 inch |
| ISO Code (packed) | QI-NH-0400-0003-TF1105 |
| Insert Size | H |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | QI-NH-0400-0003-TF 1105 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323225414500 |
