Sandvik Coromant
7940793

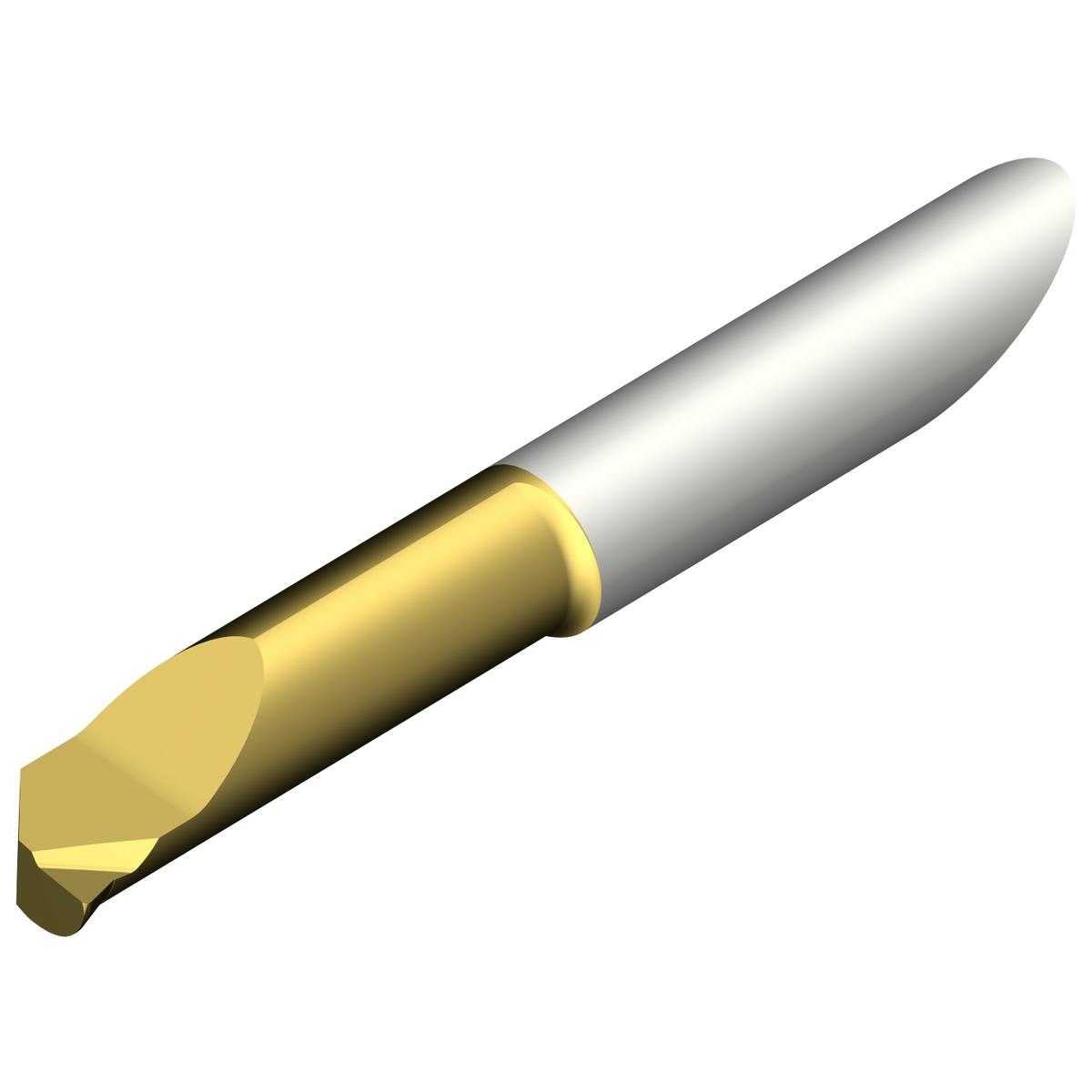

Sandvik Coromant 7940793
Specifications
| Overall Length (Metric) | 47.25 |
|---|---|
| Series | CoroTurn XS |
| Tool Lead Angle | -8 degrees |
| Overall Length (Inch) | 1.86 |
| Short Description | CoroTurn® XS solid carbide tool for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | CBN |
| Connection Diameter (Decimal) | 0.28 |
| Connection Diameter (Metric) | 7 |
| Min. Bore Diameter (Decimal) | 0.28 |
| Min. Bore Diameter (Metric) | 7.2 |
| Usable Length (Metric) | 25 |
| Usable Length (Decimal) | 0.98 |
| ANSI Code | CXS-07T098-20-7225R 7014 |
| Coolant Through | No |
| Overall Width (Decimal) | 0.14 |
| Overall Width (Metric) | 3.45 |
| Body Width (Decimal) | 0.25 |
| Body Width (Metric) | 6.25 |
| Tool Cutting Edge Angle | 98 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | United Kingdom |
| Corner Radius | 0.2 mm |
| Corner Radius (Decimal) | 0.008 |
| Body Material | Carbide |
| Coating Process Type | Uncoat |
| Grade | 7014 |
| ISO Material Classification Level All | SH |
| Base Item Number | 1055 |
| Coating/Finish | Uncoated |
| Max. Depth Of Cut (Decimal) | 0.02 |
| Max. Depth Of Cut (Metric) | 0.5 |
| Max. Overhang (Decimal) | 1.1 |
| Max. Overhang (Metric) | 28 |
| Maximum Depth Of Cut (Inch) | 0.02 |
| Maximum Depth Of Cut (Metric) | 0.5 |
| Maximum Ramping Angle | 17 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.066 LB |
| Height Packed Product Metric | 17 mm |
| Height Packed Product Imperial | 0.669 inch |
| ISO Code (packed) | CXS-07T098-20-7225R7014 |
| Length Packed Product Metric | 90 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | CXS-07T098-20-7225R 7014 |
| Length Packed Product Imperial | 3.543 inch |
| EAN Code | 7323225429191 |
| Substrate Type | Cubic Boron Nitride |
