Sandvik Coromant
7941960

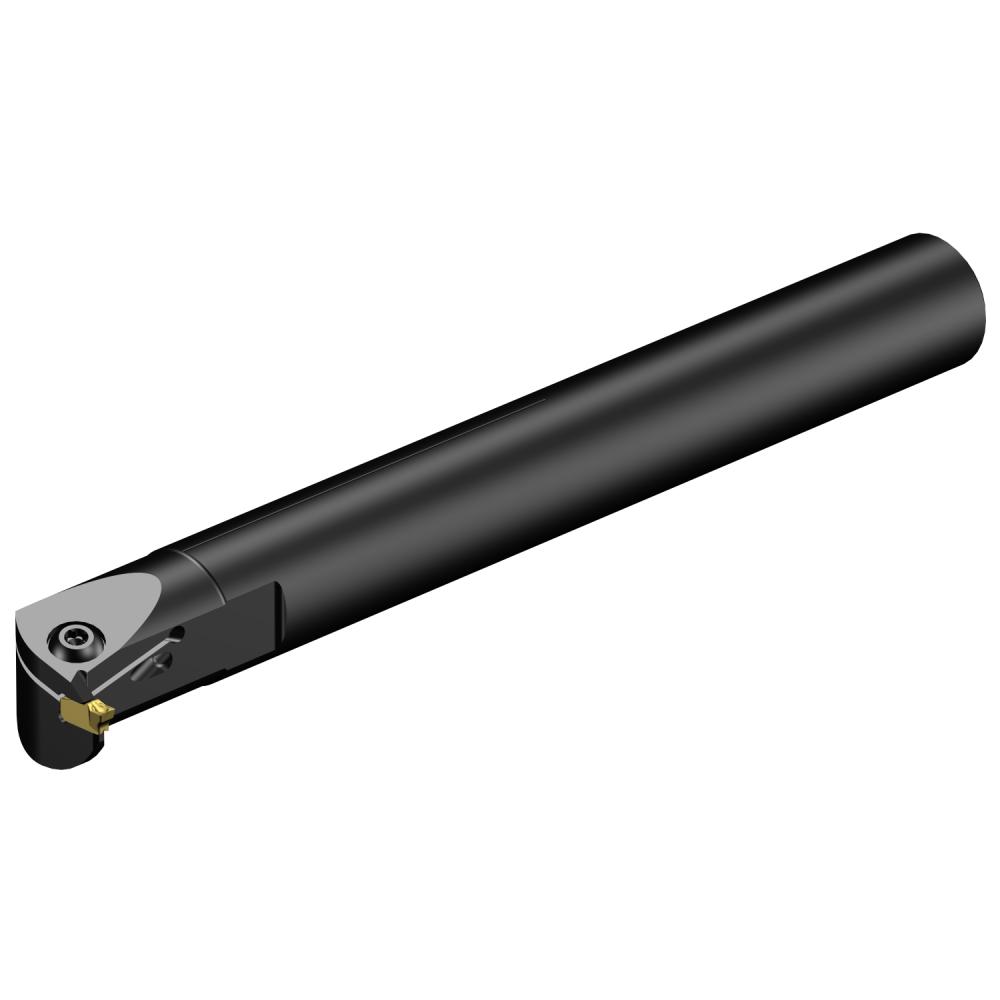

Sandvik Coromant 7941960
Specifications
| Minimum Bore Diameter (Metric) | 25 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.98 |
| Shank Diameter (Metric) | 20 |
| Direction Of Hand | Right |
| Overall Length (Metric) | 180 |
| Shank Diameter (Inch) | 0.79 |
| Overall Length (Inch) | 7.09 |
| Short Description | CoroCut® QI boring bar for grooving |
| Unit Of Measure | Metric |
| Series | CoroCut QI |
| Overall Length | 180 mm |
| Shank Diameter | 20 mm |
| Coolant Through | Yes |
| ANSI Code | QI-RAGG04C20-25 |
| Workpiece Side Body Angle | 90 degrees |
| Overall Height (Decimal) | 0.89 |
| Overall Height (Metric) | 22.5 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Overall Width (Decimal) | 0.57 |
| Overall Width (Metric) | 14.5 |
| Clamping Type Code | Clamp |
| Torque | 2.5 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 2123 |
| Max. Cutting Depth (Decimal) | 0.18 |
| Max. Cutting Depth (Metric) | 4.5 |
| Max. Overhang (Decimal) | 3.15 |
| Max. Overhang (Metric) | 80 |
| Min Bore Diameter | 25 mm |
| Min. Overhang (Decimal) | 1.18 |
| Min. Overhang (Metric) | 30 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.858 LB |
