Sandvik Coromant
7960587
Sandvik Coromant 7960587
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 3.18 |
| Corner Radius (Metric) | 4 |
| Material | WC or Cermet |
| Size | 803 |
| Corner Radius (Inch) | 0.16 |
| Style | RCMT |
| Thickness (Inch) | 0.13 |

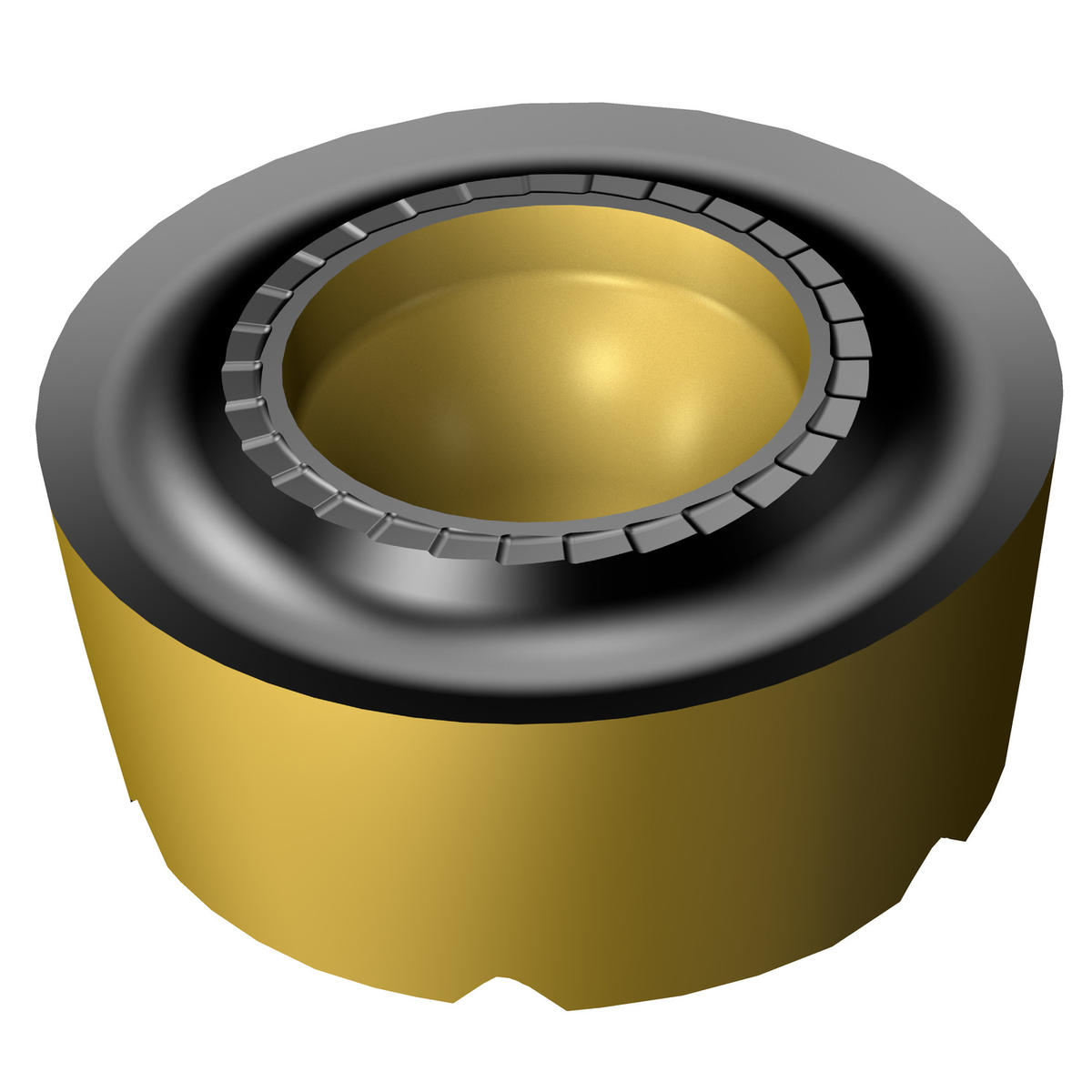

| Short Description | CoroTurn® 107 insert with rail for turning |
| Grade | 4425 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 8 mm |
| Inscribed Circle Diameter (Decimal) | 0.32 |
| Inscribed Circle Diameter (Metric) | 8 |
| Clearance Angle Major | 7 degrees |
| Shape | Round |
| Country of Origin | United States |
| Series | CoroTurn 107 |
| Chip Breaker Type | M3 |
| ANSI Code | RCMT 08 03 MP-M3 4425 |
| ISO Code | RCMT 08 03 MP-M3 4425 |
| Hand of Insert | Neutral |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 6 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PK |
| Base Item Number | 1053 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | RCMT |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | RCMT0803MP-M34425 |
| Insert Size | 0803 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | RCMT 08 03 MP-M3 4425 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323225518888 |
