Sandvik Coromant
7960646
Sandvik Coromant 7960646
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 6 |
| Material | WC or Cermet |
| Size | 1204 |
| Corner Radius (Inch) | 0.24 |
| Style | RCMT |
| Thickness (Inch) | 0.19 |

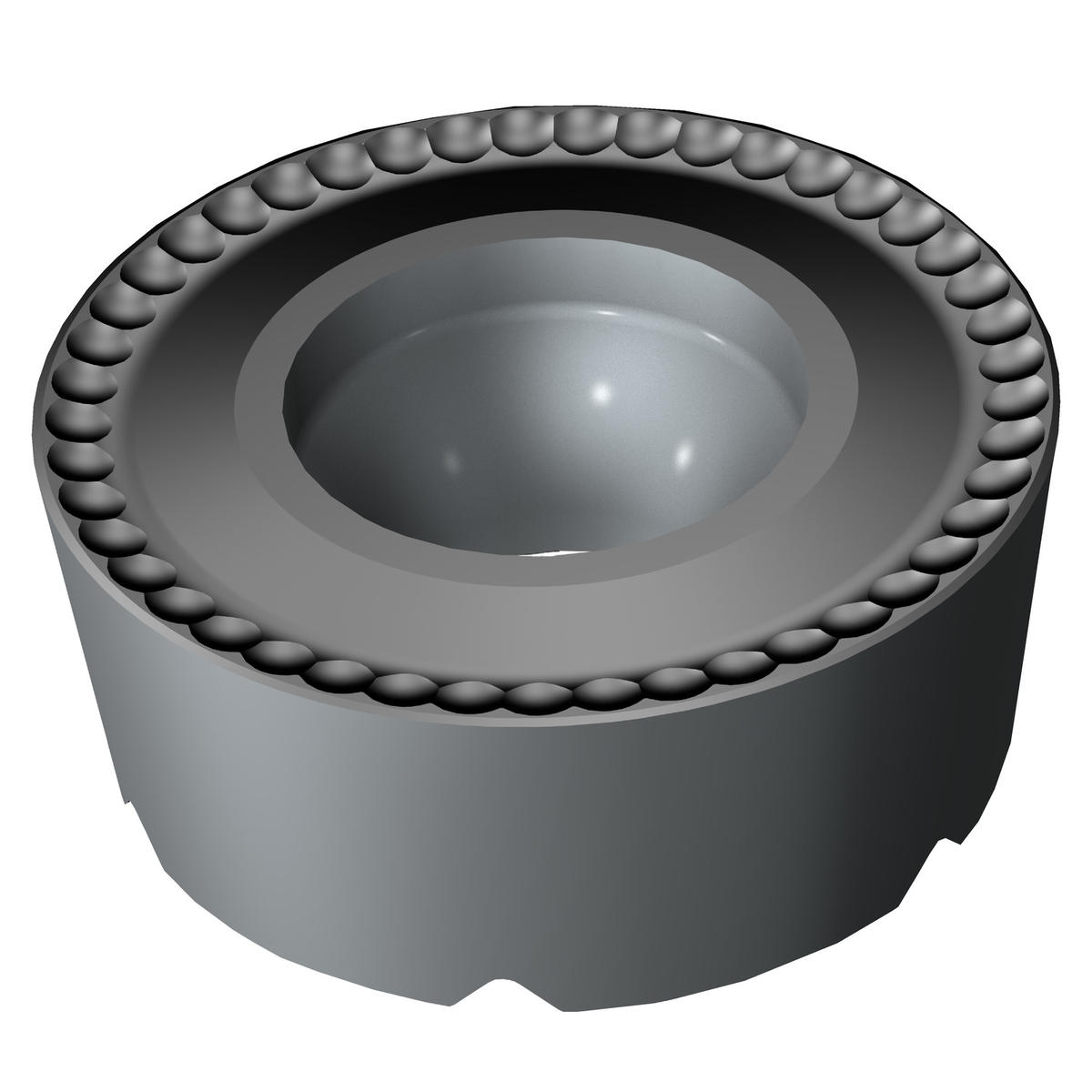

| Short Description | CoroTurn® 107 insert with rail for turning |
| Grade | 1105 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 12 mm |
| Inscribed Circle Diameter (Decimal) | 0.47 |
| Inscribed Circle Diameter (Metric) | 12 |
| Clearance Angle Major | 7 degrees |
| Shape | Round |
| Country of Origin | United States |
| Series | CoroTurn 107 |
| Chip Breaker Type | H7 |
| ANSI Code | RCMT 12 04 MP-H7 1105 |
| ISO Code | RCMT 12 04 MP-H7 1105 |
| Hand of Insert | Neutral |
| Coating Process Type | PVD |
| Operation Type | Roughing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 6 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PMS |
| Base Item Number | 1053 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.013 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | RCMT |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | RCMT1204MP-H71105 |
| Insert Size | 1204 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | RCMT 12 04 MP-H7 1105 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323225519670 |
