Sandvik Coromant
7960736

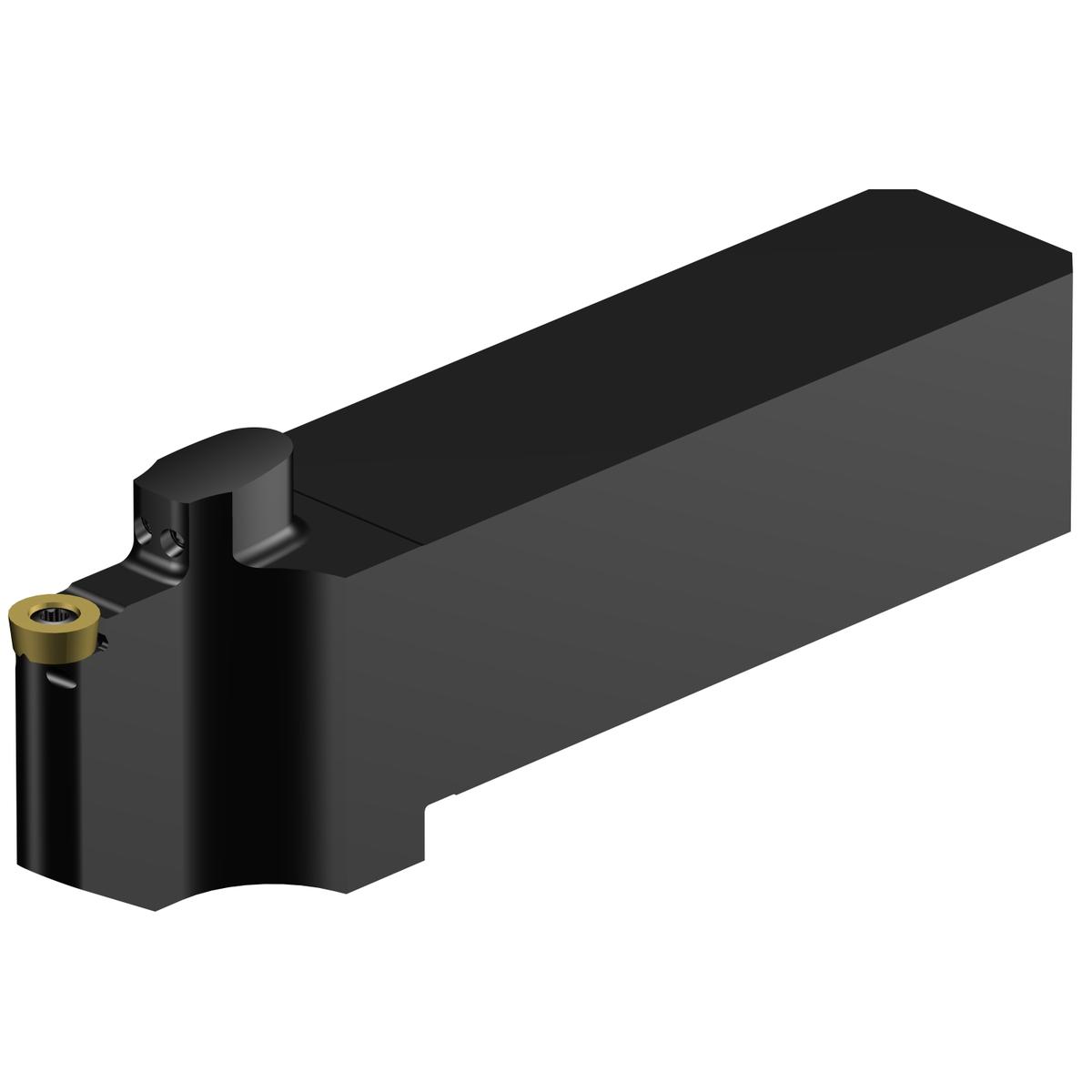

Sandvik Coromant 7960736
Specifications
| Overall Length (Metric) | 118.93 |
|---|---|
| Series | CoroTurn 107 |
| Overall Length (Inch) | 4.68 |
| Insert Style | QS-SRDCN..XC (INCH) |
| Short Description | CoroTurn® 107 QS shank tool for turning |
| Direction Of Hand | Neutral |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1 Inch |
| Orthogonal Rake Angle | 0 degrees |
| Shank Width (Decimal) | 1.54 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Coolant Entry Thread Size | G1/8-28 |
| Inclination Angle | 0 degrees |
| Usable Length (Metric) | 19.05 |
| Usable Length (Decimal) | 0.75 |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 4.68 Inch |
| Insert Compatibility | RC0803MP |
| ANSI Code | QS-SRDCN-16-20-08XC |
| Coolant Through | Yes |
| Overall Width (Decimal) | 0.66 |
| Overall Width (Metric) | 16.66 |
| Shank Height (Decimal) | 1 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Head Bottom Offset Length (Decimal) | 1.38 |
| Head Bottom Offset Length (Metric) | 34.93 |
| Clamping Type Code | Screw/Clamp |
| Torque | 1.4 Nm |
| Body Width (Decimal) | 0.27 |
| Body Width (Metric) | 6.8 |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 8: Decentral Focused Exit With Nozzles |
| Country of Origin | Sweden |
| Base Item Number | 1053 |
| Max. Overhang (Decimal) | 2.38 |
| Max. Overhang (Metric) | 60.33 |
| Maximum Ramping Angle | 90 degrees |
| Min. Overhang (Decimal) | 1.38 |
| Min. Overhang (Metric) | 34.93 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.045 LB |
