Sandvik Coromant
7960745
Sandvik Coromant 7960745
Specifications
| Overall Length (Metric) | 109 |
|---|---|
| Series | CoroTurn 107 |
| Overall Length (Inch) | 4.29 |
| Insert Style | QS-SRDCR/L..XC |

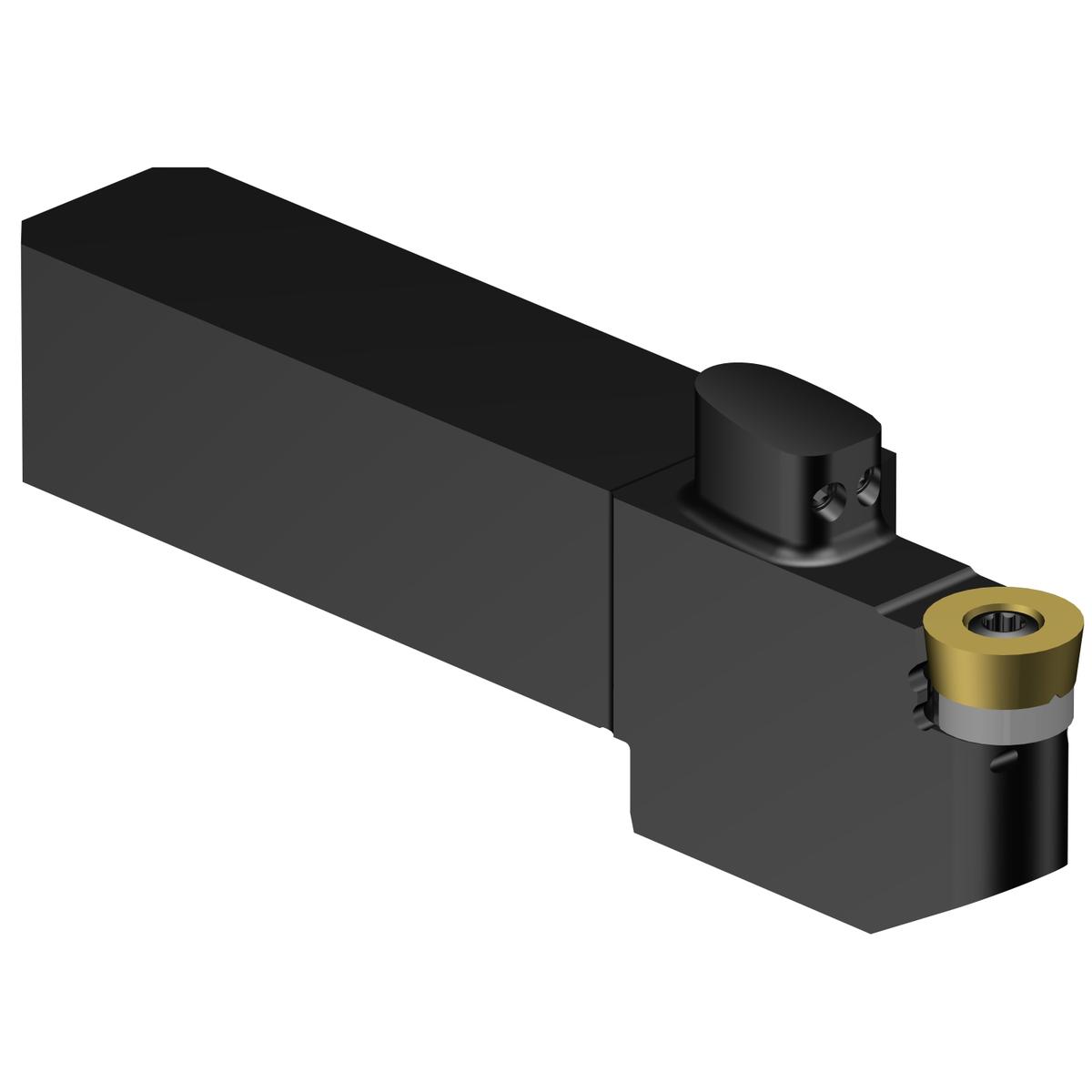

| Short Description | CoroTurn® 107 QS shank tool for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 20 mm |
| Orthogonal Rake Angle | 0 degrees |
| Shank Width (Decimal) | 1.54 |
| Shank Width (Metric) | 20 |
| Shank Height (Metric) | 20 |
| Coolant Entry Thread Size | G1/8-28 |
| Inclination Angle | 0 degrees |
| Usable Length (Metric) | 25 |
| Usable Length (Decimal) | 0.98 |
| Overall Height (Metric) | 20 |
| Overall Height (Decimal) | 0.79 |
| Overall Length | 109 mm |
| Insert Compatibility | RC1204MP |
| ANSI Code | QS-SRDCL-202025-12XC |
| Coolant Through | Yes |
| Overall Width (Decimal) | 0.85 |
| Overall Width (Metric) | 21.5 |
| Shank Height (Decimal) | 0.79 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Head Bottom Offset Length (Decimal) | 1.58 |
| Head Bottom Offset Length (Metric) | 40 |
| Clamping Type Code | Screw/Clamp |
| Torque | 3 Nm |
| Body Width (Decimal) | 0.4 |
| Body Width (Metric) | 10.2 |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 8: Decentral Focused Exit With Nozzles |
| Country of Origin | India |
| Base Item Number | 1053 |
| Max. Overhang (Decimal) | 2.36 |
| Max. Overhang (Metric) | 60 |
| Maximum Ramping Angle | 90 degrees |
| Min. Overhang (Decimal) | 1.58 |
| Min. Overhang (Metric) | 40 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.595 LB |
