Sandvik Coromant
7960772

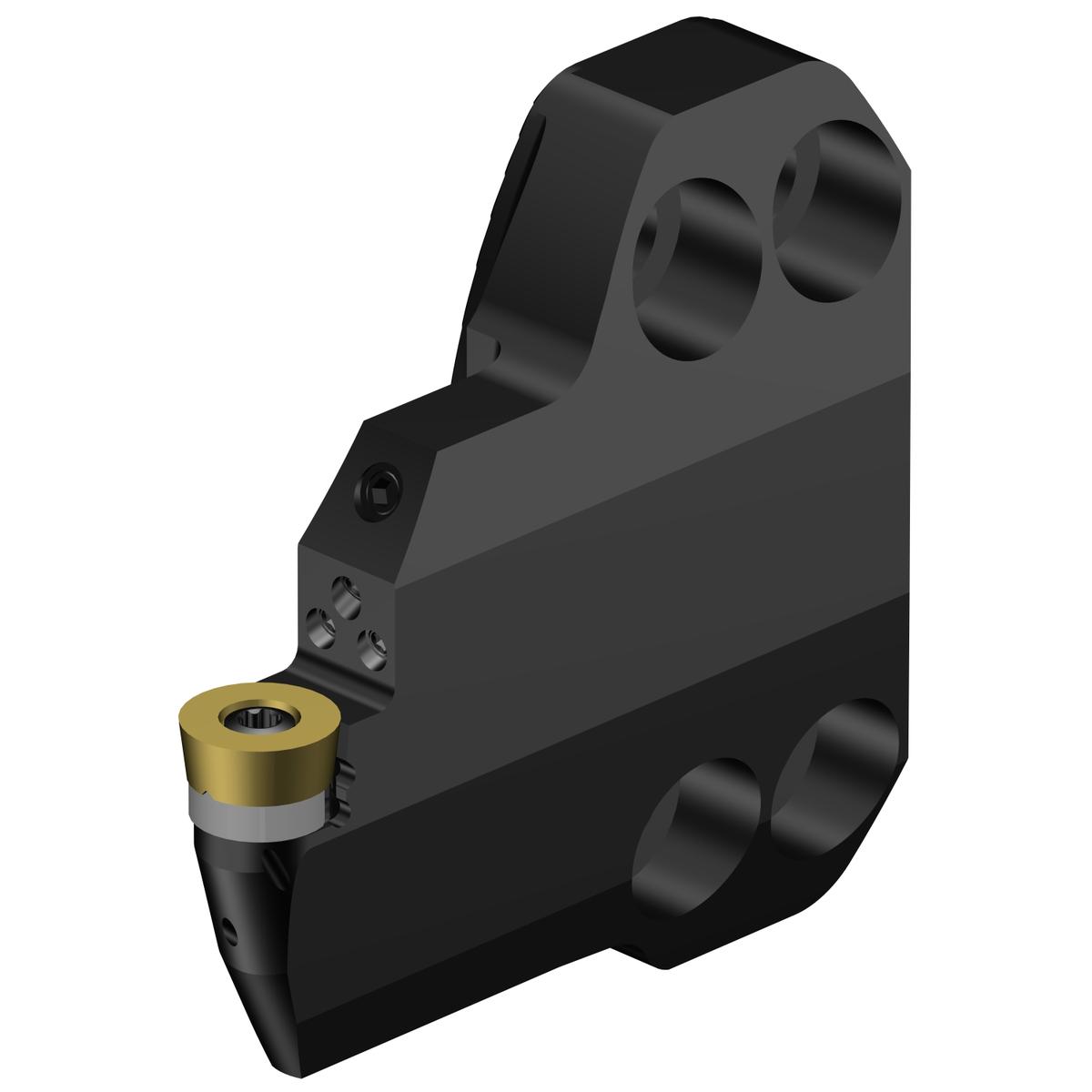

Sandvik Coromant 7960772
Specifications
| Center to Cutting Edge (Inch) | 2.21 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 4.72; 10.24 |
| Size | 70 |
| Series | CoroTurn 107 |
| Bore Diameter (Metric) | 120; 260 |
| Center to Cutting Edge (Metric) | 56 |
| Short Description | CoroTurn® 107 head for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 56 mm |
| Insert Style | RC1204MP |
| ANSI Code | SL70-SRDCL-35-12XC |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 1015.26 lbf/in2 |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 90 degrees |
| Inclination Angle | 0 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Body Width (Decimal) | 0.4 |
| Body Width (Metric) | 10.2 |
| Clamping Width (Decimal) | 2.76 |
| Clamping Width (Metric) | 70 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 8: Decentral Focused Exit With Nozzles |
| Country of Origin | India |
| Base Item Number | 1053 |
| Max. Hole Depth | 18 mm |
| Max. Hole Depth (Decimal) | 0.71 |
| Max. Hole Depth (Metric) | 18 |
| Max. Overhang (Decimal) | 0.71 |
| Max. Overhang (Metric) | 18 |
| Maximum Ramping Angle | 90 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.67 LB |
| Height Packed Product Metric | 80 mm |
| Height Packed Product Imperial | 3.15 inch |
| ISO Code (packed) | SL70-SRDCL-35-12XC |
| Length Packed Product Metric | 84 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SL70-SRDCL-35-12XC |
| Length Packed Product Imperial | 3.307 inch |
| EAN Code | 7323225520720 |
