Sandvik Coromant
7992861

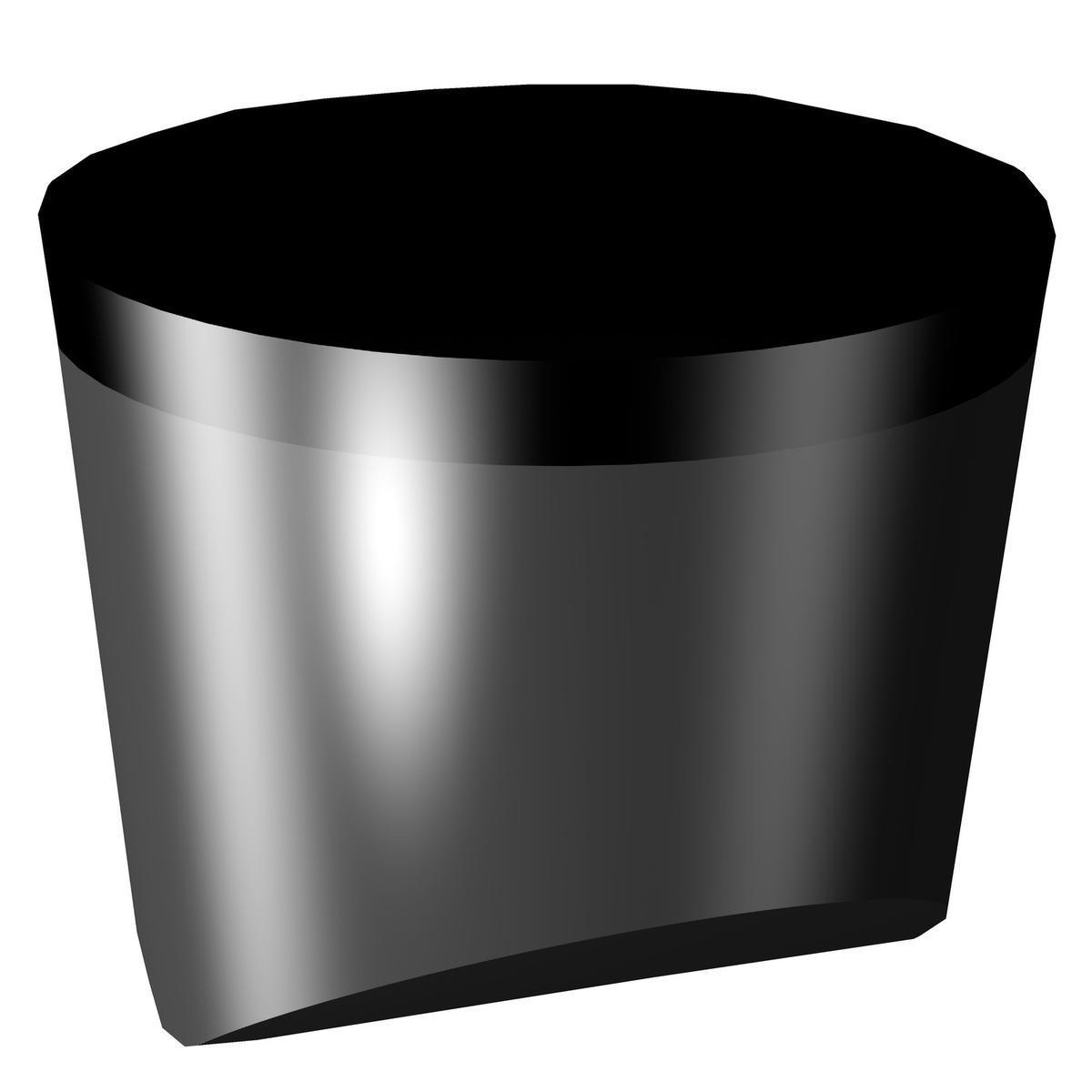

Sandvik Coromant 7992861
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 6.35 |
| Corner Radius (Metric) | 3.18 |
| Material | CBN Low Content |
| Size | 606 |
| Corner Radius (Inch) | 0.13 |
| Style | RCGX |
| Thickness (Inch) | 0.25 |
| Short Description | T-Max® insert for turning |
| Grade | 7014 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Clearance Angle Major | 7 degrees |
| Rake Angle | 0 degrees |
| Shape | Round |
| Country of Origin | Poland |
| Series | T-Max |
| Chip Breaker Type | E |
| ANSI Code | RCGX060600E 7014 |
| ISO Code | RCGX060600E 7014 |
| Hand of Insert | Neutral |
| Coating Process Type | Uncoat |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | CBN |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | SH |
| Base Item Number | 1026 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.002 LB |
| Height Packed Product Metric | 14 mm |
| Insert Style | RCGX |
| Height Packed Product Imperial | 0.551 inch |
| ISO Code (packed) | RCGX060600E7014 |
| Insert Size | 0606 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | RCGX060600E 7014 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323225661362 |
