Sandvik Coromant
7993540

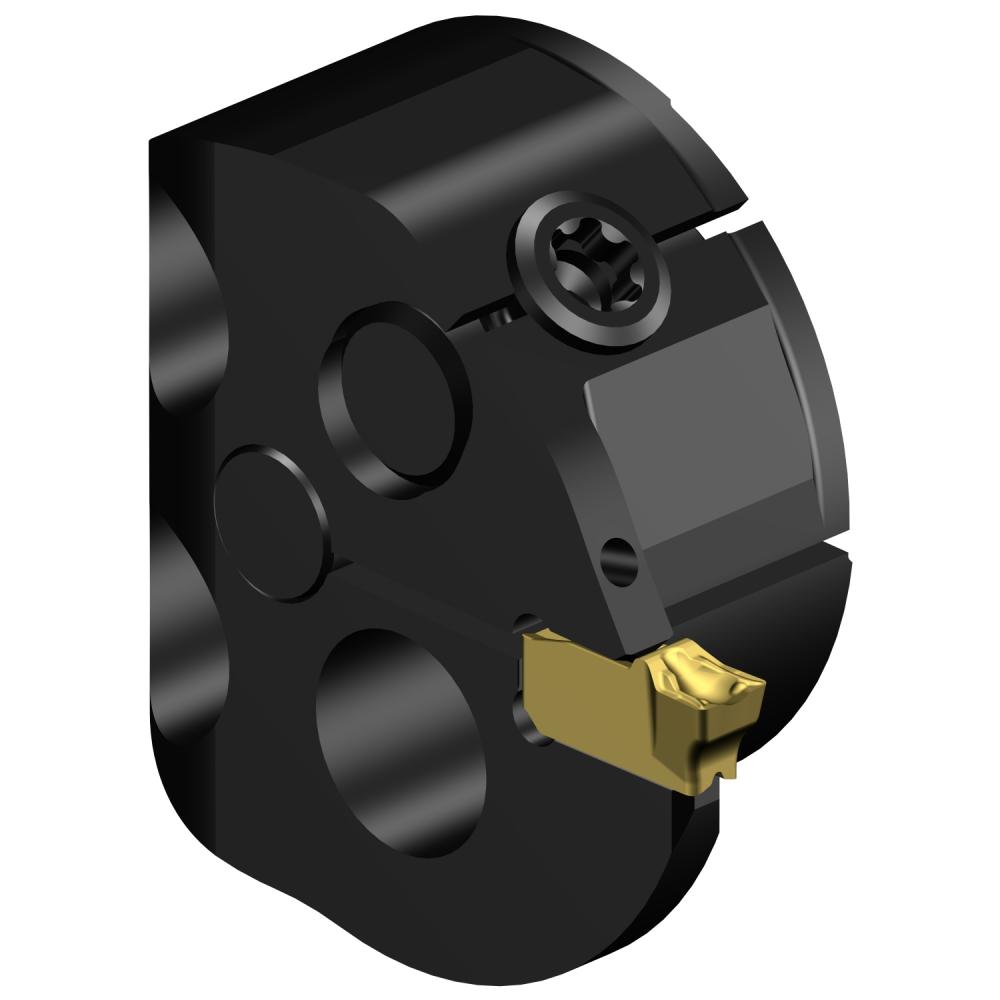

Sandvik Coromant 7993540
Specifications
| Center to Cutting Edge (Inch) | 0.76 |
|---|---|
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.26 |
| Size | 25 |
| Series | CoroCut QI |
| Bore Diameter (Metric) | 32 |
| Center to Cutting Edge (Metric) | 19.3 |
| Short Description | CoroCutĀ® QI head for grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 19.3 mm |
| Insert Style | QI-NG-0300-0002-GF |
| ANSI Code | SL-QI-RG05C25-32 |
| Connection Diameter (Decimal) | 0.98 |
| Connection Diameter (Metric) | 25 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 2175.57 lbf/in2 |
| Torque | 3 Nm |
| Workpiece Side Body Angle | 90 degrees |
| Overall Height (Decimal) | 0.004 |
| Overall Height (Metric) | 0.1 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Insert Seat Size Code | G |
| Country of Origin | India |
| Base Item Number | 2123 |
| Max. Cutting Depth (Decimal) | 0.2 |
| Max. Cutting Depth (Metric) | 5 |
| Max. Hole Depth | 14 mm |
| Max. Hole Depth (Decimal) | 0.55 |
| Max. Hole Depth (Metric) | 14 |
| Max. Overhang (Decimal) | 0.55 |
| Max. Overhang (Metric) | 14 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.071 LB |
| Height Packed Product Metric | 42 mm |
| Height Packed Product Imperial | 1.654 inch |
| ISO Code (packed) | SL-QI-RG05C25-32 |
| Length Packed Product Metric | 78 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SL-QI-RG05C25-32 |
| Length Packed Product Imperial | 3.071 inch |
| EAN Code | 7323225664325 |
