Sandvik Coromant
7993913

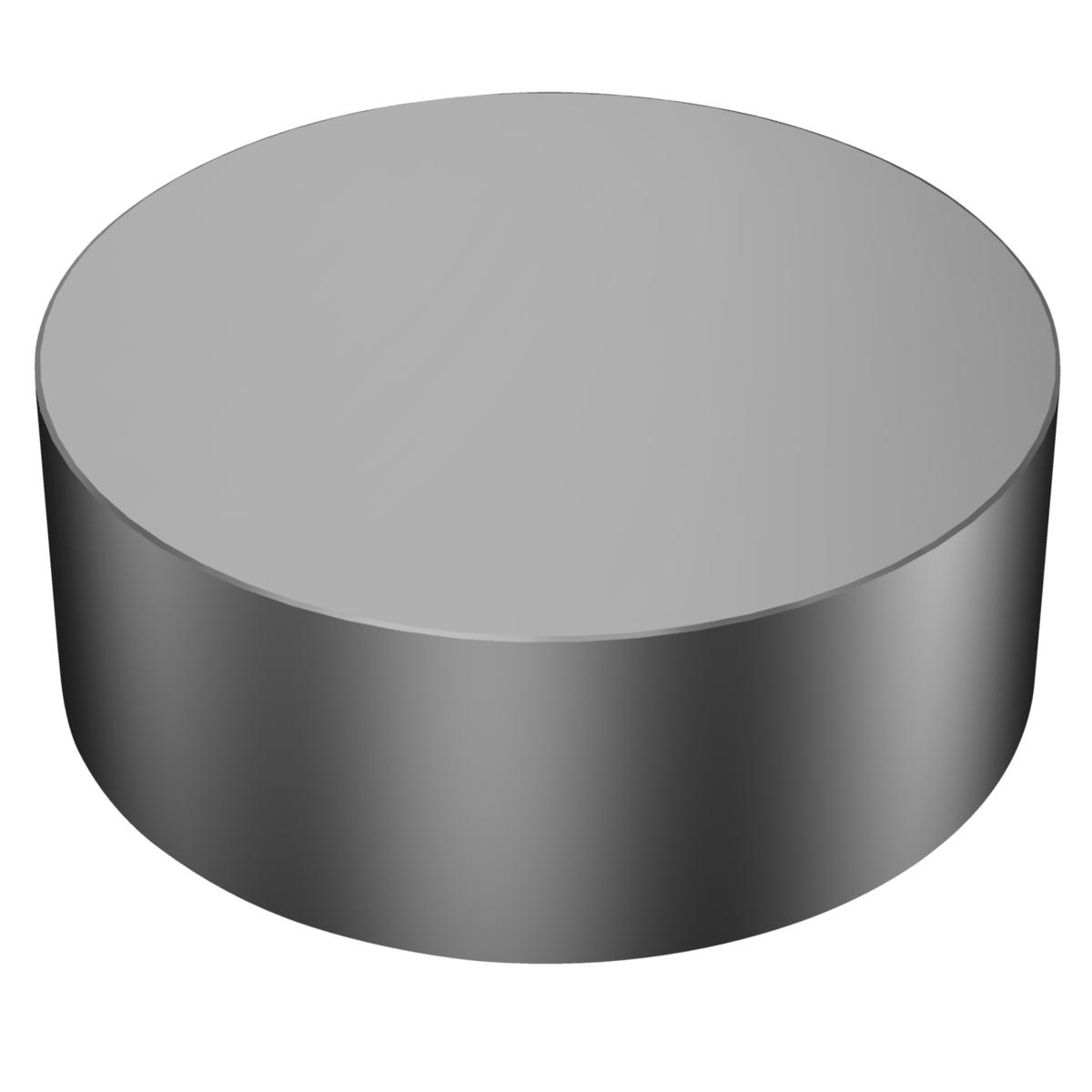

Sandvik Coromant 7993913
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 7.94 |
| Corner Radius (Metric) | 6.35 |
| Material | Sialon Ceramic |
| Size | 1207 |
| Corner Radius (Inch) | 0.25 |
| Style | RNG |
| Thickness (Inch) | 0.31 |
| Short Description | T-Max® insert for turning |
| Grade | 6165 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 12.7 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Clearance Angle Major | 0 degrees |
| Face Land Width (Metric) | 0.1 |
| Face Land Width (Decimal) | 0.004 |
| Rake Angle | 0 degrees |
| Face Land Angle | 20 degrees |
| Shape | Round |
| Country of Origin | Japan |
| Series | T-Max |
| ANSI Code | RNG45T0320 6165 |
| ISO Code | RNGN120700T01020 6165 |
| Hand of Insert | Neutral |
| Coating Process Type | Uncoat |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | Ceramic |
| Number of Cutting Edges | 8 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | S |
| Base Item Number | 1026 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.008 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | RNG |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | RNGN120700T010206165 |
| Insert Size | 1207 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | RNGN120700T01020 6165 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323225665971 |
