Sandvik Coromant
8019562

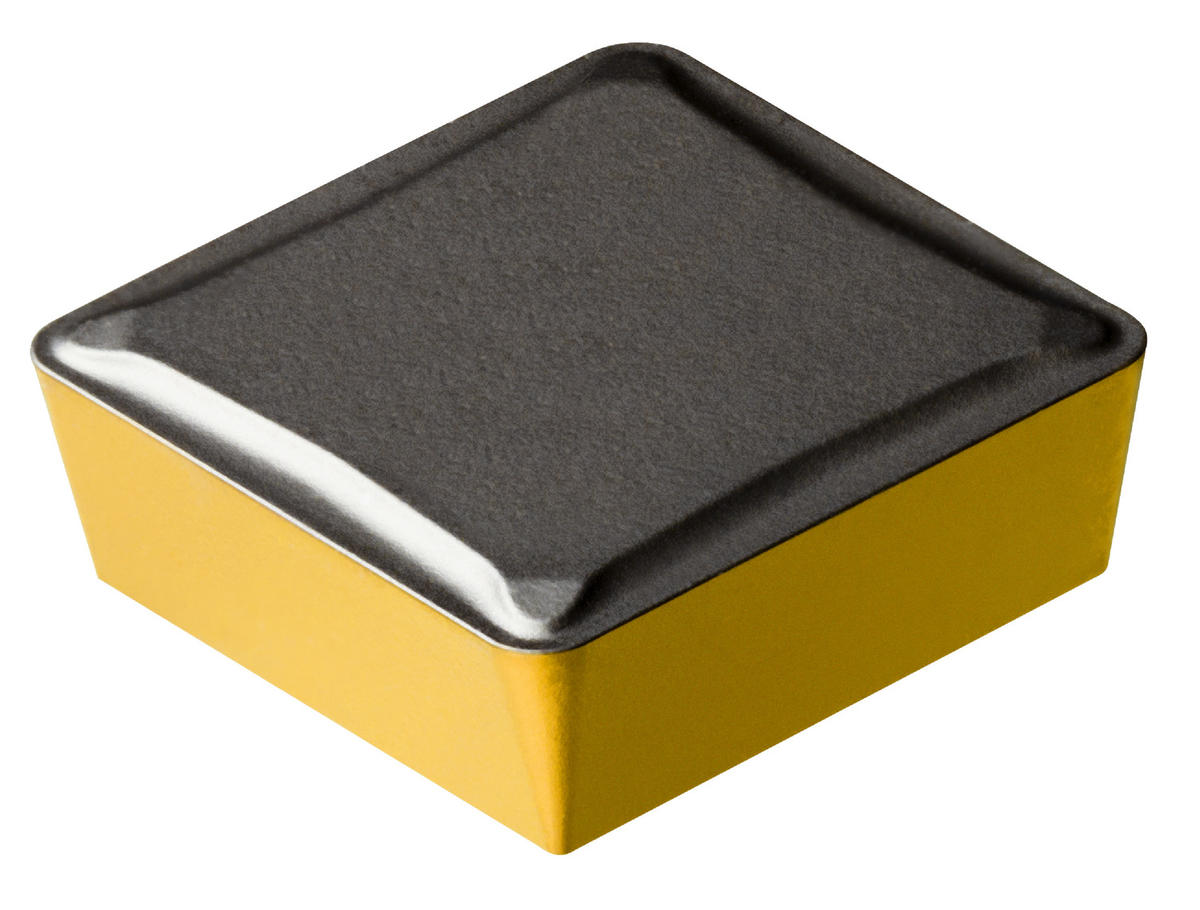

Sandvik Coromant 8019562
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 3.18 |
| Corner Radius (Metric) | 0.79 |
| Material | WC or Cermet |
| Size | 322 |
| Corner Radius (Inch) | 0.03 |
| Style | SPMR |
| Thickness (Inch) | 0.13 |
| Short Description | T-Max® S insert for turning |
| Grade | 4425 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 9.53 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 11 degrees |
| Length (Decimal) | 0.34 |
| Length (Metric) | 8.73 |
| Shape | Square |
| Country of Origin | India |
| Series | T-Max S |
| Chip Breaker Type | 53 |
| ANSI Code | SPMR 322-53 4425 |
| ISO Code | SPMR 09 03 08-53 4425 |
| Hand of Insert | Neutral |
| Coating Process Type | CVD |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PK |
| Base Item Number | 1057 |
| Length | 8.73 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.009 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | SPMR |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | SPMR090308-534425 |
| Insert Size | 322 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SPMR 09 03 08-53 4425 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323225784610 |
