Sandvik Coromant
8019574

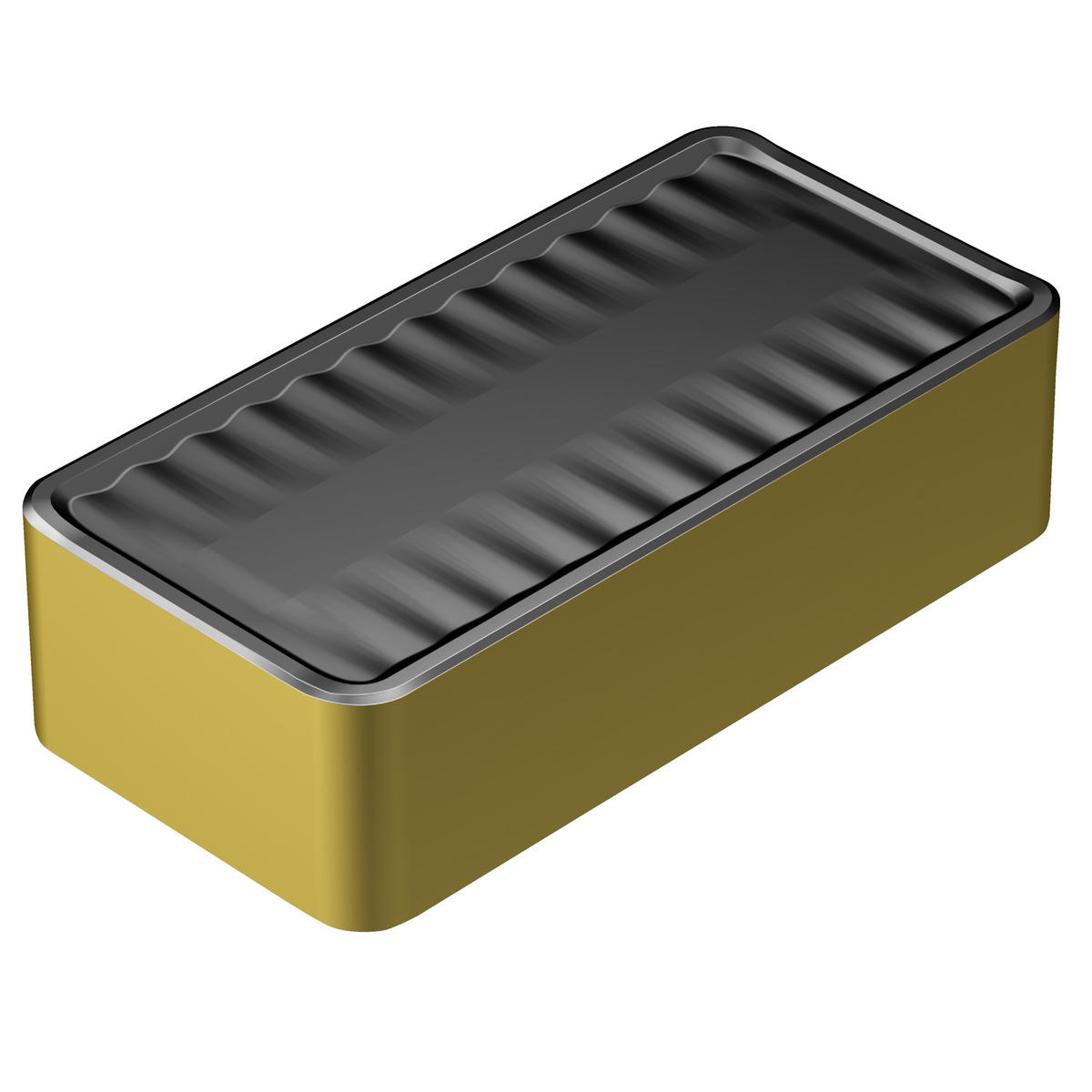

Sandvik Coromant 8019574
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 14.2 |
| Corner Radius (Metric) | 3.18 |
| Material | WC or Cermet |
| Size | 5014 |
| Corner Radius (Inch) | 0.13 |
| Style | LNMX |
| Thickness (Inch) | 0.56 |
| Short Description | T-Max® P insert for turning |
| Grade | 4425 |
| Unit Of Measure | Metric |
| Clearance Angle Major | 0 degrees |
| Width (Decimal) | 1 |
| Width (Metric) | 25.4 |
| Length (Decimal) | 1.34 |
| Length (Metric) | 34 |
| Shape | Rectangle |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | XH |
| ANSI Code | LNMX 50 14 32-XH 4425 |
| ISO Code | LNMX 50 14 32-XH 4425 |
| Hand of Insert | Neutral |
| Coating Process Type | CVD |
| Operation Type | Roughing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| ISO Material Classification | P |
| Base Item Number | 1049 |
| Length | 34 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.573 LB |
| Width | 25.4 mm |
| Height Packed Product Metric | 30 mm |
| Insert Style | LNMX |
| Height Packed Product Imperial | 1.181 inch |
| ISO Code (packed) | LNMX501432-XH4425 |
| Insert Size | 5014 |
| Length Packed Product Metric | 78 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | LNMX 50 14 32-XH 4425 |
| Length Packed Product Imperial | 3.071 inch |
| EAN Code | 7323225784733 |
