Sandvik Coromant
8019575
Sandvik Coromant 8019575
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 19.05 |
| Corner Radius (Metric) | 4 |
| Material | WC or Cermet |
| Size | 1919 |
| Corner Radius (Inch) | 0.16 |
| Style | 175.32 |
| Thickness (Inch) | 0.75 |

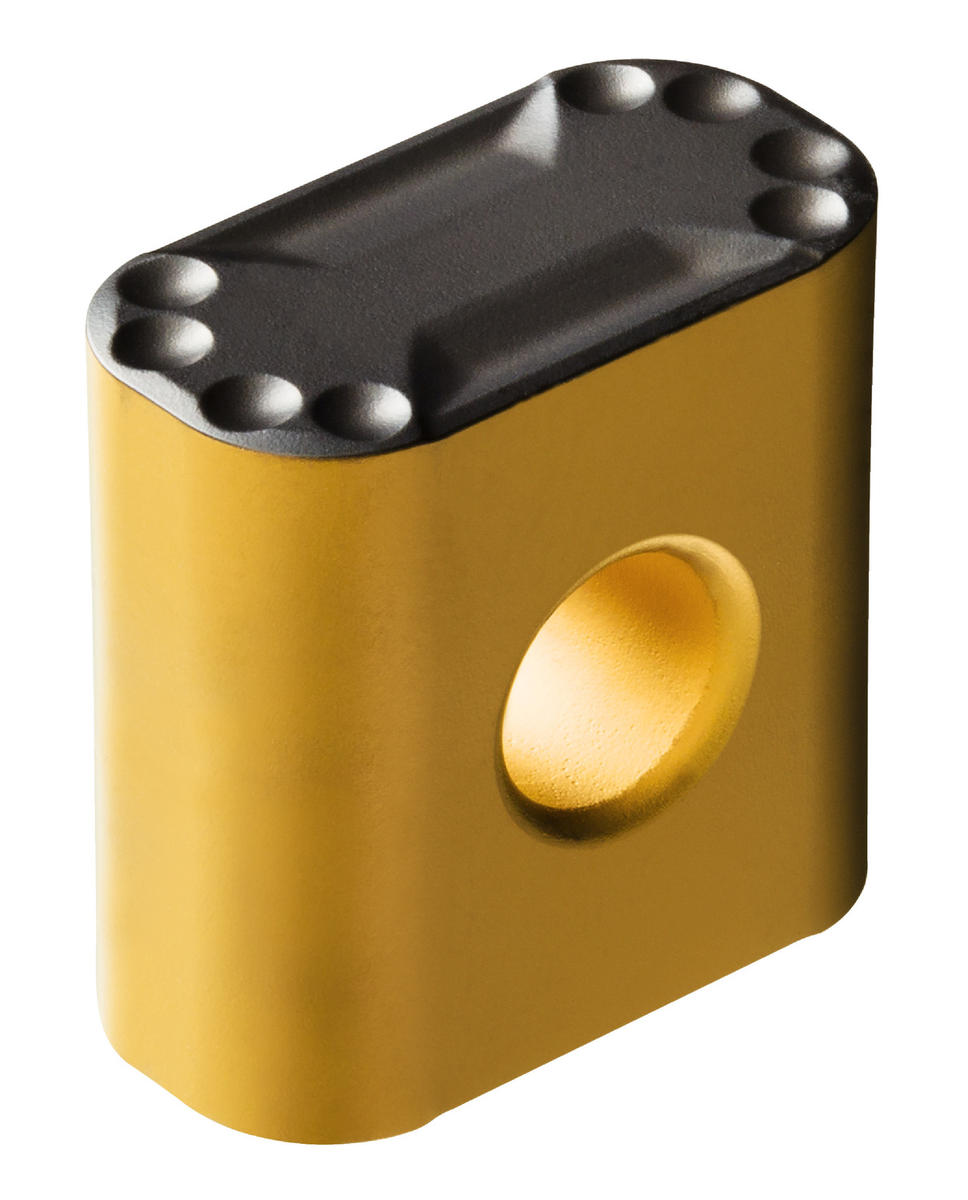

| Short Description | T-Max® P insert for turning |
| Grade | 4425 |
| Unit Of Measure | Metric |
| Clearance Angle Major | 0 degrees |
| Width (Decimal) | 0.39 |
| Width (Metric) | 10 |
| Length (Decimal) | 0.59 |
| Length (Metric) | 15.05 |
| Shape | Rectangle |
| Country of Origin | India |
| Series | T-Max P |
| Chip Breaker Type | 25 |
| ANSI Code | 175.32-19 19 40-25 4425 |
| ISO Code | 175.32-19 19 40-25 4425 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.25 |
| Fixing Hole Diameter (Metric) | 6.35 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| ISO Material Classification | PK |
| Base Item Number | 1049 |
| Length | 15.05 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.093 LB |
| Width | 10 mm |
| Height Packed Product Metric | 18 mm |
| Insert Style | 175.32 |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | 175.32-191940-254425 |
| Insert Size | 1919 |
| Length Packed Product Metric | 148 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 175.32-19 19 40-25 4425 |
| Length Packed Product Imperial | 5.827 inch |
| EAN Code | 7323225784740 |
