Sandvik Coromant
8019588
Sandvik Coromant 8019588
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 9.53 |
| Corner Radius (Metric) | 2.38 |
| Material | WC or Cermet |
| Size | 3309 |
| Corner Radius (Inch) | 0.09 |
| Style | TNMG |
| Thickness (Inch) | 0.38 |

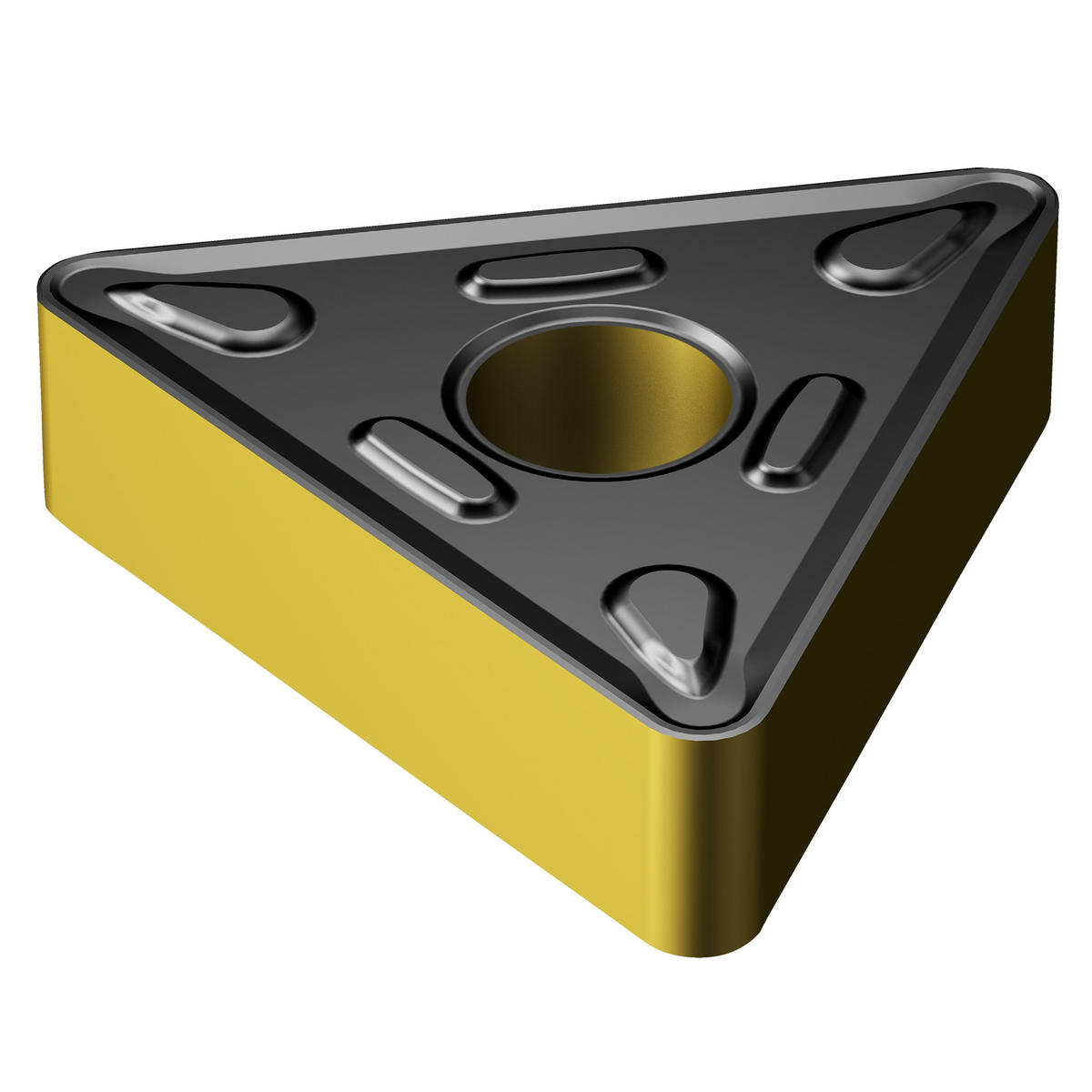

| Short Description | T-Max® P insert for turning |
| Grade | 4425 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 19.05 mm |
| Inscribed Circle Diameter (Decimal) | 0.75 |
| Inscribed Circle Diameter (Metric) | 19.05 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 1.3 |
| Length (Metric) | 33 |
| Shape | Triangle |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | HM |
| ANSI Code | TNMG 666-HM 4425 |
| ISO Code | TNMG 33 09 24-HM 4425 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.31 |
| Fixing Hole Diameter (Metric) | 7.93 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 6 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PK |
| Base Item Number | 1049 |
| Length | 33 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.117 LB |
| Height Packed Product Metric | 29 mm |
| Insert Style | TNMG |
| Height Packed Product Imperial | 1.142 inch |
| ISO Code (packed) | TNMG330924-HM4425 |
| Insert Size | 3309 |
| Length Packed Product Metric | 80 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TNMG 33 09 24-HM 4425 |
| Length Packed Product Imperial | 3.15 inch |
| EAN Code | 7323225784870 |
