Sandvik Coromant
8021004
Sandvik Coromant 8021004
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 3.18 |
| Corner Radius (Metric) | 0.79 |
| Material | WC or Cermet |
| Size | 222 |
| Corner Radius (Inch) | 0.03 |
| Style | TPMT |
| Thickness (Inch) | 0.13 |

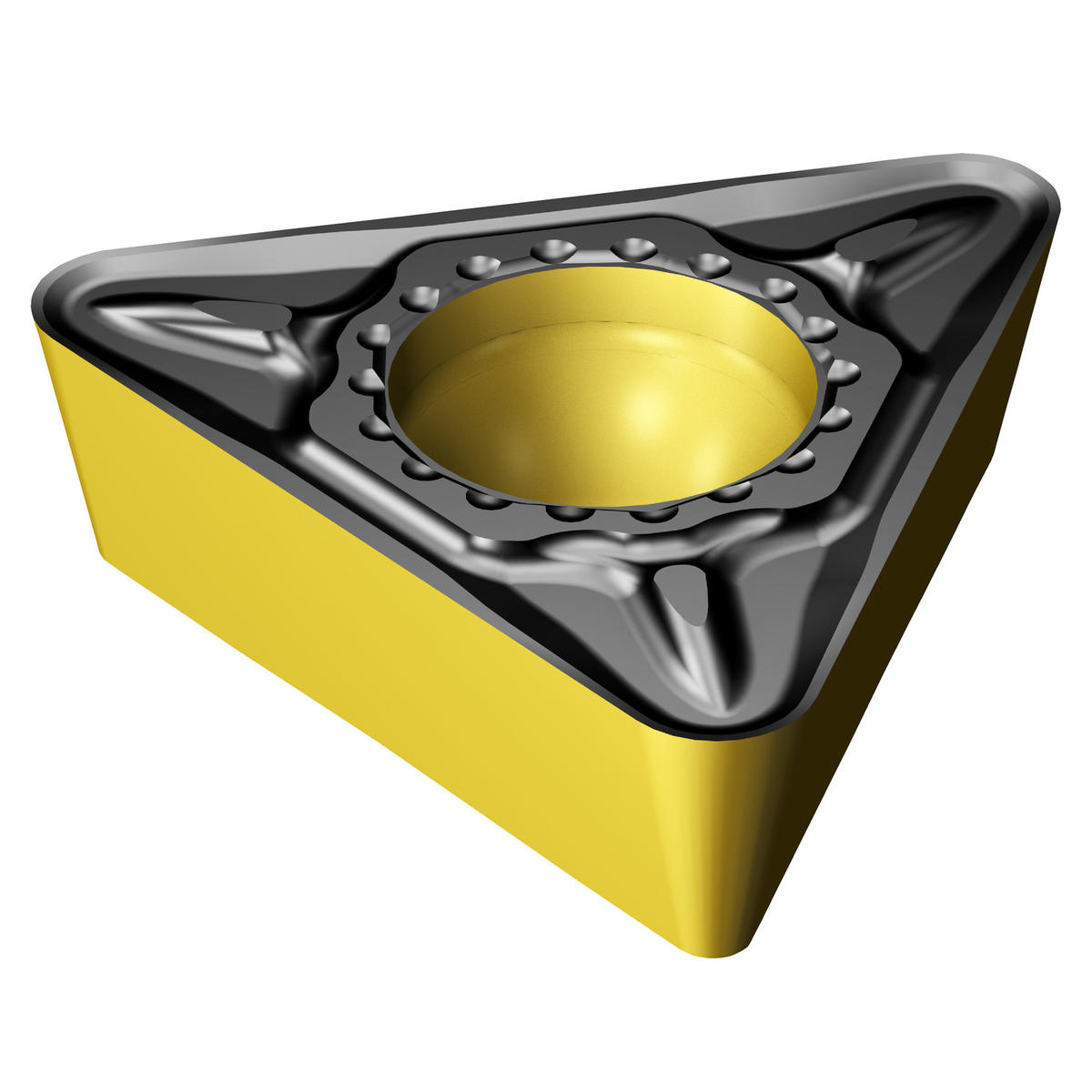

| Short Description | CoroTurn® 111 insert for turning |
| Grade | 4415 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Clearance Angle Major | 11 degrees |
| Length (Decimal) | 0.4 |
| Length (Metric) | 10.2 |
| Shape | Triangle |
| Country of Origin | Sweden |
| Series | CoroTurn 111 |
| Chip Breaker Type | PM |
| ANSI Code | TPMT 222-PM 4415 |
| ISO Code | TPMT 11 03 08-PM 4415 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PK |
| Base Item Number | 1054 |
| Length | 10.2 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.003 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | TPMT |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | TPMT110308-PM4415 |
| Insert Size | 222 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TPMT 11 03 08-PM 4415 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323225794749 |
