Sandvik Coromant
8021272

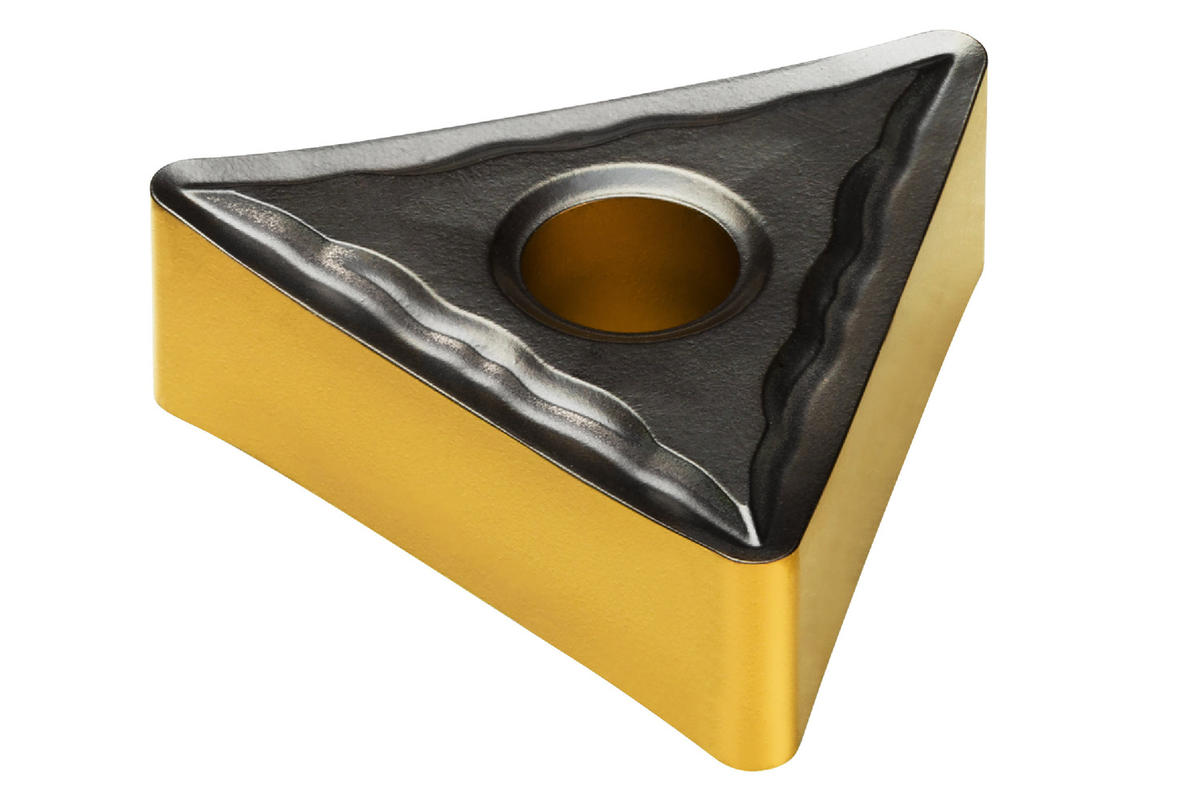

Sandvik Coromant 8021272
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 1.19 |
| Material | WC or Cermet |
| Size | 2204 |
| Corner Radius (Inch) | 0.05 |
| Style | TNMG |
| Thickness (Inch) | 0.19 |
| Short Description | T-Max® P insert for turning |
| Grade | 4415 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 12.7 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 0.82 |
| Length (Metric) | 20.8 |
| Shape | Triangle |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | MF |
| ANSI Code | TNMG 433-MF 4415 |
| ISO Code | TNMG 22 04 12-MF 4415 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.2 |
| Fixing Hole Diameter (Metric) | 5.16 |
| Coating Process Type | CVD |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 6 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PK |
| Base Item Number | 1049 |
| Length | 20.8 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.026 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | TNMG |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | TNMG220412-MF4415 |
| Insert Size | 2204 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TNMG 22 04 12-MF 4415 |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 7323225796330 |
