Sandvik Coromant
8029469

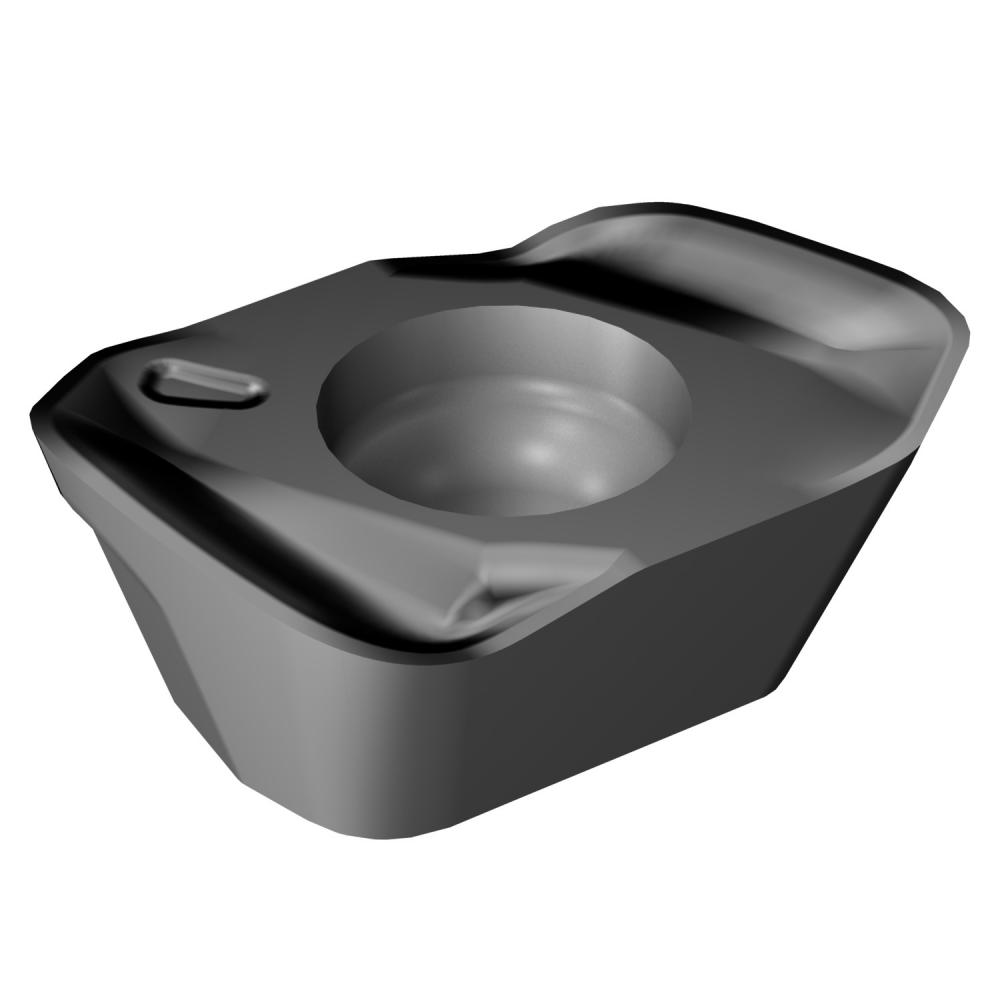

Sandvik Coromant 8029469
Specifications
| Material | WC or Cermet |
|---|---|
| Corner Radius (Metric) | 2 |
| Corner Radius (Inch) | 0.08 |
| Coating/Finish | TiAlN |
| Thickness (Metric) | 3.42 |
| Thickness (Inch) | 0.14 |
| Short Description | CoroMill® MH20 insert for milling |
| Shape | Rectangle |
| Style | MH20 |
| Unit Of Measure | Metric |
| Width (Decimal) | 0.25 |
| Country of Origin | United States |
| Series | CoroMill MH20 |
| Size | 603 |
| Grade | 1010 |
| Thickness | 3.42 mm |
| Chip Breaker Type | M20 |
| Length (Decimal) | 0.18 |
| ANSI Code | MH20-060320M-M20 1010 |
| ISO Code | MH20-060320M-M20 1010 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.06 |
| Coner Radius (Metric) | 1.6 |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Face Land Width (Decimal) | 0.007 |
| Face Land Width (Metric) | 0.19 |
| Major Cutting Edge Angle | 15 degrees |
| Rake Angle | 14 degrees |
| Face Land Angle | -1 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Application | Milling, General |
| ISO Material Classification | H |
| Base Item Number | 2130 |
| Insert Size | 0603 |
| Length | 4.5 mm |
| Max. Depth Of Cut (Decimal) | 0.03 |
| Max. Depth Of Cut (Metric) | 0.8 |
| Maximum Depth Of Cut (Inch) | 0.03 |
| Maximum Depth Of Cut (Metric) | 0.8 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Width | 6.4 mm |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | MH20 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | MH20-060320M-M201010 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | MH20-060320M-M20 1010 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323225834209 |
