Sowa Tool
101348

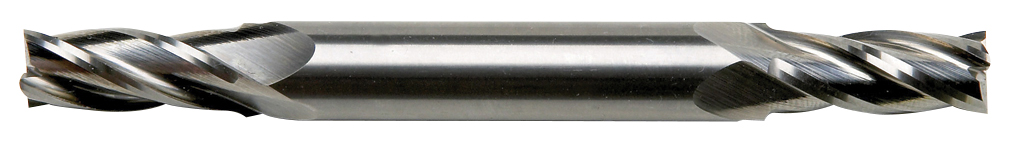

3/8" Diameter x 3/8" Shank 4-Flute Regular Length Double End Blue Series Carbide End Mill
Specifications
| Shank Size (Inch) | 3/8 |
|---|---|
| Overall Length (Inch) | 3-1/2 |
| Length Of Cut (Inch) | 3/4 |
| Number Of Flutes | 4 |
| Material | Solid Carbide |
| Coating/Finish | Bright |
| Double Ended | Yes |
| Cutting Direction | Right |
| Diameter (Inch) | 3/8 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |
| Length Type | Regular |
| Short Description | • Brand: GS Tooling<br>• Length Type : Regular |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (Inch): 3/8"<br>• Number of Flutes: 4<br>• Material: Solid Carbide<br>• Length of Cut (Inch): 3/4"<br>• Shank Diameter (Inch): 3/8"<br>• Finish/Coating: Bright<br>• Single or Double End: Double<br>• Center Cutting: Yes<br>• Overall Length (Inch): 3-1/2"<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>Four-flute configuration with center cutting permits plunging and milling on many ferrous and non-ferrous materials, and offers lower chip-load for size control and finish |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 3/8" |
| Unit of Measure | Fractional |
| Mill Diameter (Inch) | 3/8" |
