Sowa Tool
101392

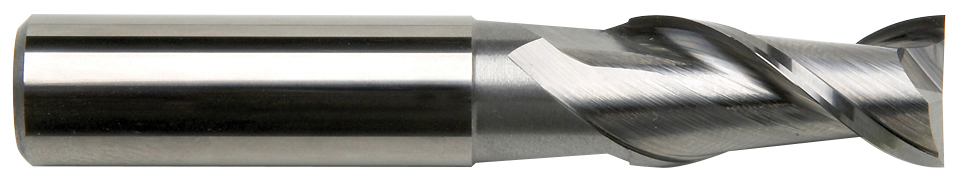

8.0mm Diameter x 8mm Shank 2-Flute Aluminum Green Series Carbide End Mill
Specifications
| Length Of Cut (Metric) | 21 |
|---|---|
| Overall Length (Metric) | 63 |
| Number Of Flutes | 2 |
| Material | Solid Carbide |
| Coating/Finish | Bright |
| Double Ended | No |
| Diameter (Metric) | 8 |
| Shank Size (Metric) | 8 |
| Cutting Direction | Right |
| Unit Of Measure | Metric |
| Helix Angle | 40 degrees |
| Length Type | Regular |
| Short Description | • Brand: GS Tooling<br>• Length Type : Regular |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (mm): 8<br>• Number of Flutes: 2<br>• Material: Solid Carbide<br>• Length of Cut (mm): 21<br>• Shank Diameter (mm): 8<br>• Finish/Coating: Bright<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (mm): 63<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 40<br>This carbide aluminum end mill has been designed specially for milling Aluminum and all non-ferrous materials. The unique geometry permits much higher speed and feed rates without loading. Spindle and feed rates can be increased by fifty percent for greater productivity with excellent piece/part finishes |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Mill Diameter (Metric) | 8 |
