Sowa Tool
101507

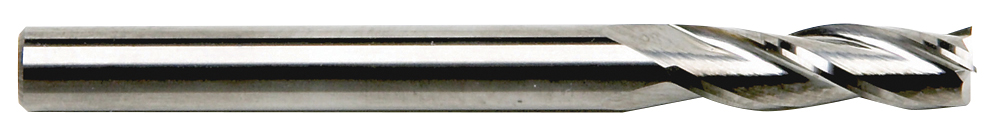

16.0mm Diameter x 16mm Shank 3-Flute Regular Length Blue Series Carbide End Mill
Specifications
| Length Of Cut (Metric) | 32 |
|---|---|
| Overall Length (Metric) | 89 |
| Number Of Flutes | 3 |
| Material | Solid Carbide |
| Coating/Finish | Bright |
| Double Ended | No |
| Diameter (Metric) | 16 |
| Shank Size (Metric) | 16 |
| Cutting Direction | Right |
| Unit Of Measure | Metric |
| Helix Angle | 30 degrees |
| Length Type | Regular |
| Short Description | • Brand: GS Tooling<br>• Length Type : Regular |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (mm): 16<br>• Number of Flutes: 3<br>• Material: Solid Carbide<br>• Length of Cut (mm): 32<br>• Shank Diameter (mm): 16<br>• Finish/Coating: Bright<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (mm): 89<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>3 flute carbide end mills offer maximum chip clearance therefore reducing chip packing. For: End milling, Slotting, Sinking On: Steels, Cast Iron, Aluminum, Copper, Brass, Plastics, and Abrasive type materials |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Mill Diameter (Metric) | 16 |
