Sowa Tool
101607

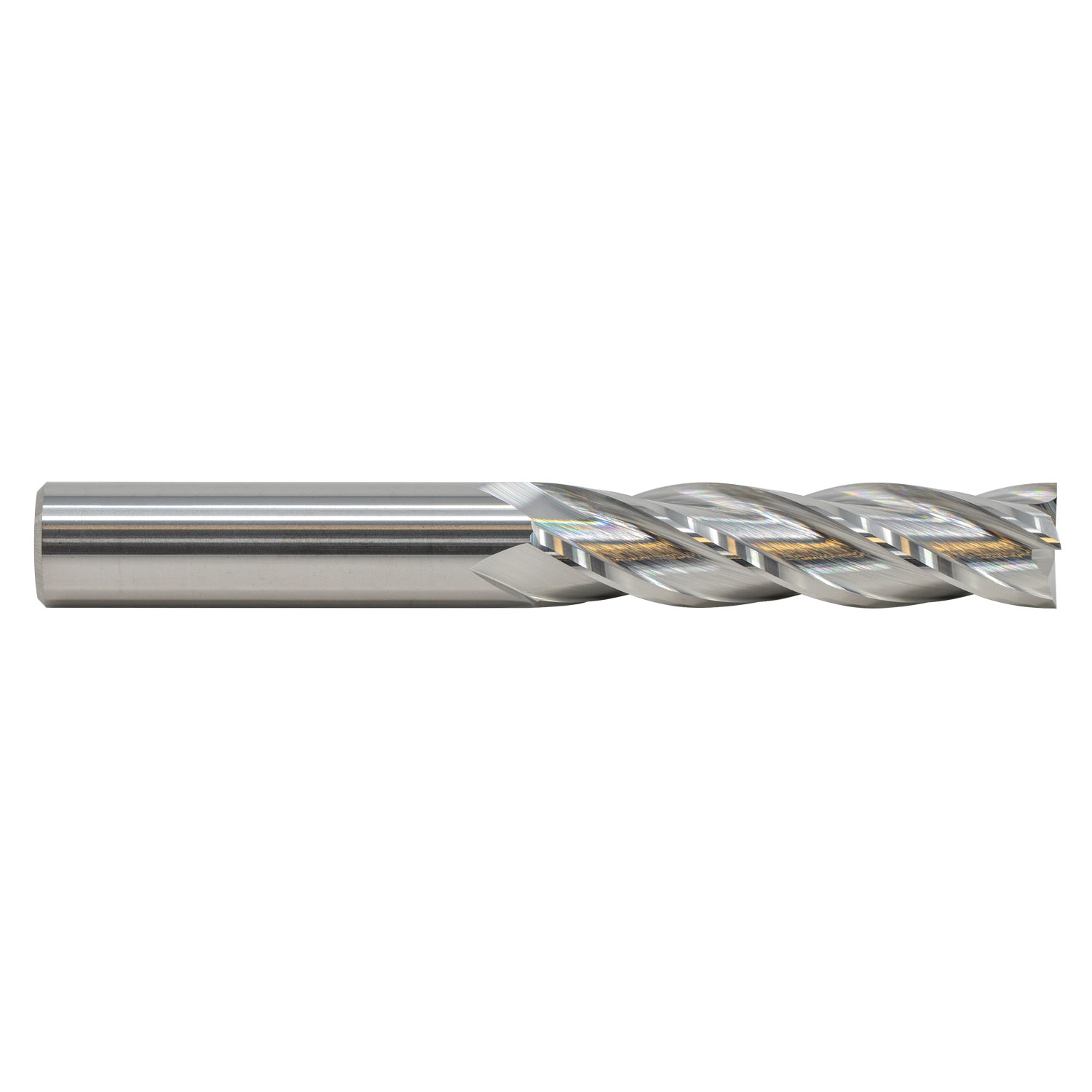

14.0mm Diameter x 14mm Shank 4-Flute Long Length Blue Series Carbide End Mill
Specifications
| Length Of Cut (Metric) | 57 |
|---|---|
| Overall Length (Metric) | 127 |
| Number Of Flutes | 4 |
| Material | Solid Carbide |
| Coating/Finish | Bright |
| Double Ended | No |
| Diameter (Metric) | 14 |
| Shank Size (Metric) | 14 |
| Cutting Direction | Right |
| Unit Of Measure | Metric |
| Helix Angle | 30 degrees |
| Length Type | Long |
| Short Description | • Brand: GS Tooling<br>• Length Type : Long |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (mm): 14<br>• Number of Flutes: 4<br>• Material: Solid Carbide<br>• Length of Cut (mm): 57<br>• Shank Diameter (mm): 14<br>• Finish/Coating: Bright<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (mm): 127<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>Long Length End mills combine added flute and overall length for greater reach when deep slotting or milling. These end mills have the capability to mill thicker material in one pass, eliminating the interrupted cut that may be present with regular length end mills |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Mill Diameter (Metric) | 14 |
