Sowa Tool
101769

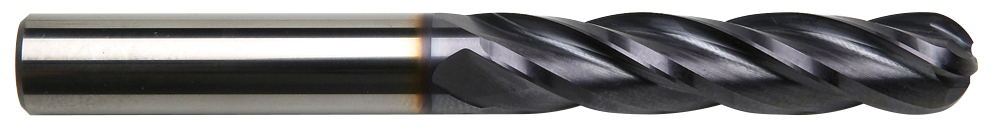

10mm Diameter 4-Flute Ball Nose Long Length TiAlN Coated Carbide End Mill
Specifications
| Long Description | • Mill Diameter (mm): 10<br>• Number of Flutes: 4<br>• Length of Cut (mm): 32<br>• Material: Solid Carbide<br>• Overall Length (mm): 76<br>• Shank Diameter (mm): 10<br>• Finish/Coating: TiAlN<br>• Single or Double End: Single<br>Long Length End mills combine added flute and overall length for greater reach when deep slotting or milling. These end mills have the capability to mill much thicker material in a single pass, thereby eliminating the interrupted cut that may be present with regular length end mills. <br>TiAlN coated for increased speed and feed capabilities and enhanced tool life |
|---|---|
| Short Description | • Brand: GS Tooling<br>• Cutting Direction : Right<br>• Flute Direction : Right |
| Mill Diameter (Metric) | 10 |
| Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Overall Length (mm) | 7.6 cm |
| Number Of Flutes | 4 |
| Length Of Cut (Metric) | 32 |
| Shank Diameter (mm) | 1.00 cm |
