Sowa Tool
101838

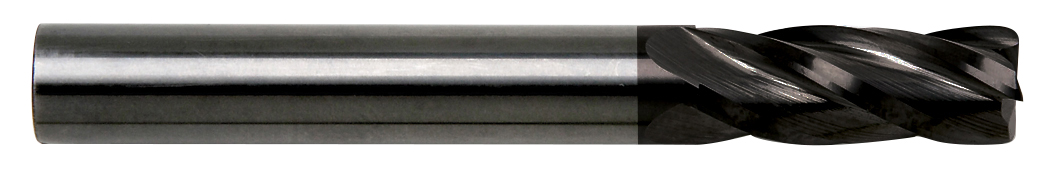

1/4 4-Flute 0.045 Radius Solid Carbide End Mill TiAlN Coated
Specifications
| Length Of Cut (Inch) | 3/4" |
|---|---|
| Material | Solid Carbide |
| Corner Radius (Inch) | 0.045 |
| Overall Length (Inch) | 2-1/2" |
| Shank Diameter (Inch) | 1/4" |
| Coating/Finish | TiAlN |
| Number Of Flutes | 4 |
| Cutting Direction | Right |
| Short Description | • Brand: GS Tooling<br>• Center Cutting : Yes<br>• Flute Direction : Right<br>• Length Type : Regular |
| Long Description | • Mill Diameter (Inch): 1/4"<br>• End Type: Corner Radius<br>• Corner Radius (Decimal Inch): 0.045<br>• Number of Flutes: 4<br>• Material: Solid Carbide<br>• Finish/Coating: TiAlN<br>• Length of Cut (Inch): 3/4"<br>• Shank Diameter (Inch): 1/4"<br>• Overall Length (Inch): 2-1/2"<br>• Cutting Direction: Right<br>• Variable Index: No<br>Four flute carbide end mills with corner radius allows more strength and minimizes chipping on corners. Four flute construction provides more strength than two or three flute and will also result in excellent surface finishes. |
| End Type | Corner Radius |
| Mill Diameter (Inch) | 1/4" |
