Sowa Tool
101858

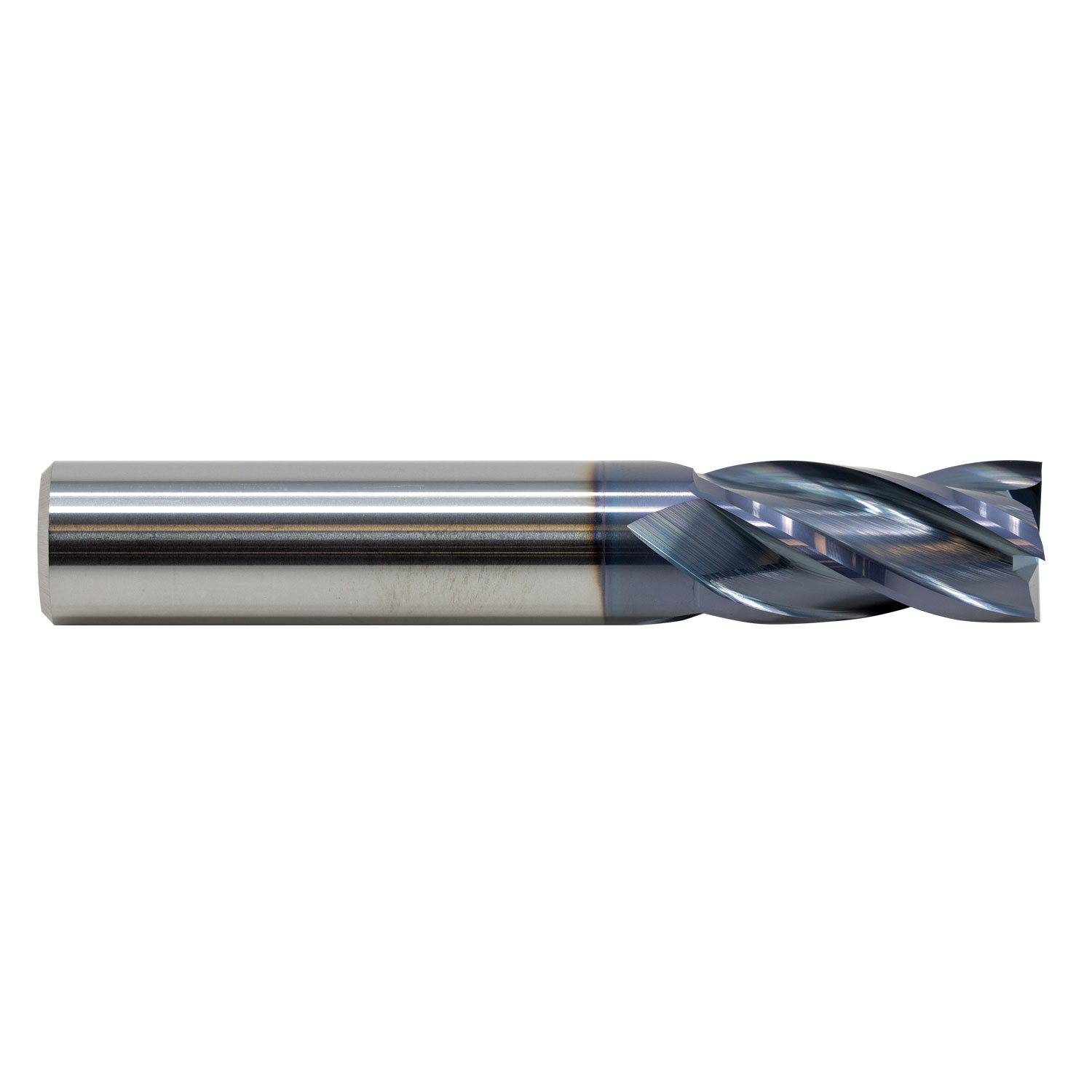

18.0mm Diameter x 18mm Shank 4-Flute Regular Length Typhoon Red Series Carbide End Mill
Specifications
| Length Of Cut (Metric) | 35 |
|---|---|
| Overall Length (Metric) | 102 |
| Number Of Flutes | 4 |
| Material | Solid Carbide |
| Coating/Finish | Modified AlTiN |
| Double Ended | No |
| Diameter (Metric) | 18 |
| Shank Size (Metric) | 18 |
| Cutting Direction | Right |
| Unit Of Measure | Metric |
| Length Type | Regular |
| Short Description | • Brand: GS Tooling<br>• Length Type : Regular |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (mm): 18<br>• Number of Flutes: 4<br>• Material: Solid Carbide<br>• Length of Cut (mm): 35<br>• Shank Diameter (mm): 18<br>• Finish/Coating: Modified AlTiN<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (mm): 102<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>These end mills are manufactured with Premium Sub-Micron carbide and are designed to cut hardened materials. The unique geometry of the Typhoon end mill combined with its modified AlTiN coating make it an excellent choice for demanding applications. |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Mill Diameter (Metric) | 18 |
