Sowa Tool
102053

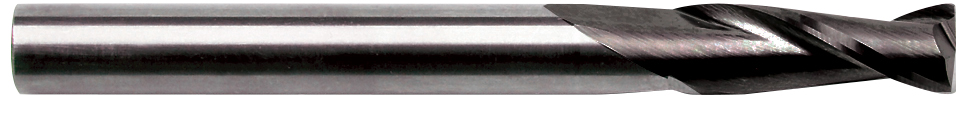

5/8 2-Flute 0.030 Radius Solid Carbide End Mill TiAlN Coated
Specifications
| Length Of Cut (Inch) | 1-1/4" |
|---|---|
| Material | Solid Carbide |
| Corner Radius (Inch) | 0.03 |
| Overall Length (Inch) | 3-1/2" |
| Shank Diameter (Inch) | 5/8" |
| Coating/Finish | TiAlN |
| Number Of Flutes | 2 |
| Cutting Direction | Right |
| Short Description | • Brand: GS Tooling<br>• Center Cutting : Yes<br>• Flute Direction : Right<br>• Length Type : Regular |
| Long Description | • Mill Diameter (Inch): 5/8"<br>• End Type: Corner Radius<br>• Corner Radius (Decimal Inch): 0.03<br>• Number of Flutes: 2<br>• Material: Solid Carbide<br>• Finish/Coating: TiAlN<br>• Length of Cut (Inch): 1-1/4"<br>• Shank Diameter (Inch): 5/8"<br>• Overall Length (Inch): 3-1/2"<br>• Cutting Direction: Right<br>• Variable Index: No<br>Two flute carbide end mill with corner radius allows more strength and minimizes chipping on corners. Two flute construction provides more chip space and clearance than three or four flute designs. |
| End Type | Corner Radius |
| Mill Diameter (Inch) | 5/8" |
