Sowa Tool
102201

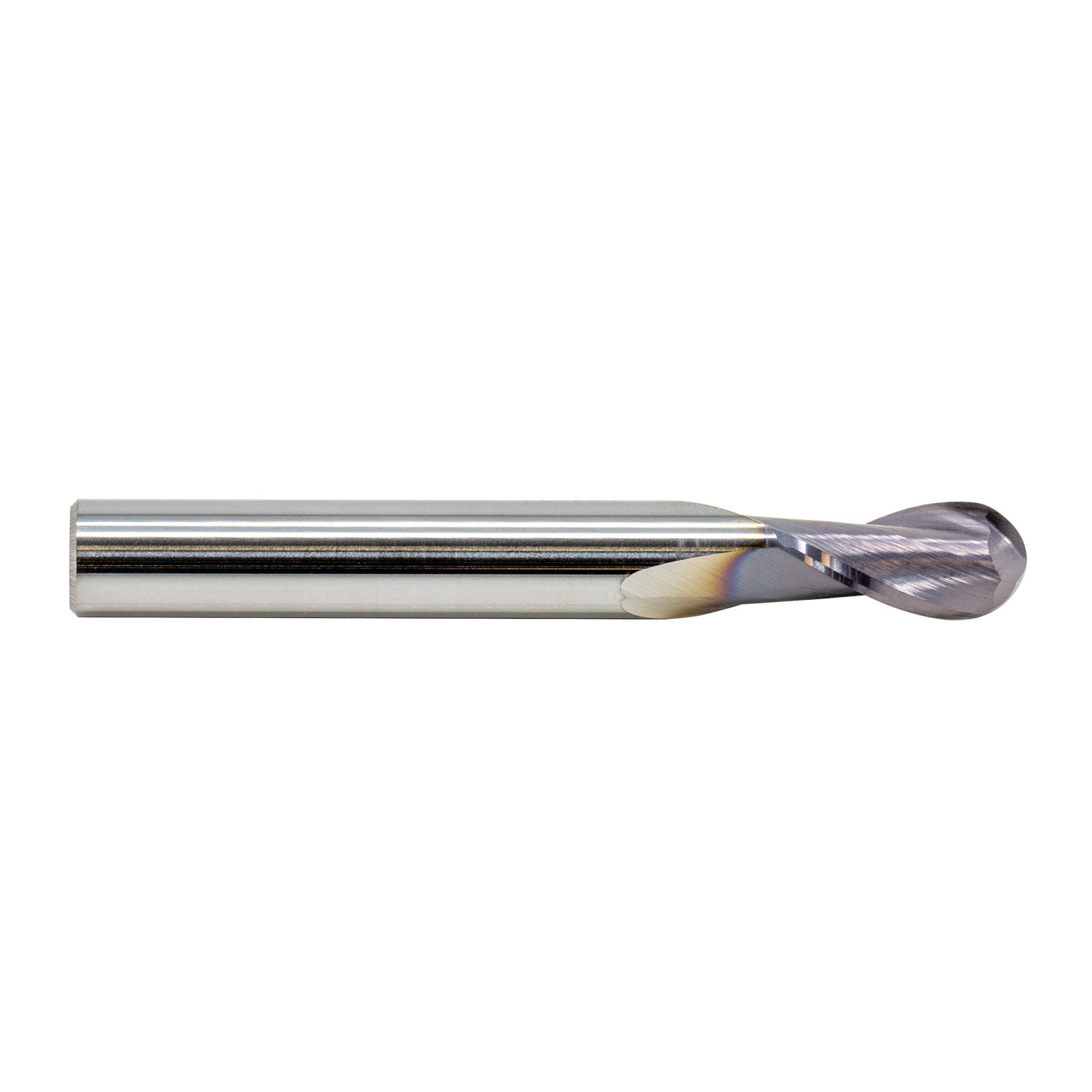

5/64" Diameter 2-Flute Ball Nose Stub Length TiAlN Coated Carbide End Mill
Specifications
| Long Description | • Mill Diameter (Inch): 5/64"<br>• Number of Flutes: 2<br>• Length of Cut (Inch): 5/32"<br>• Material: Solid Carbide<br>• Overall Length (Inch): 1-1/2"<br>• Shank Diameter (Inch): 1/8"<br>• Finish/Coating: TiAlN<br>• Single or Double End: Single<br>This series has added strength and stability with the same geometry of our standard length series. Stub end mills are specifically designed for shallow milling, contour milling and slotting |
|---|---|
| Short Description | • Brand: GS Tooling<br>• Cutting Direction : Right<br>• Flute Direction : Right |
| Material | Solid Carbide |
| Mill Diameter (Inch) | 5/64" |
| Length Of Cut (Inch) | 5/32" |
| Coating/Finish | TiAlN |
| Shank Diameter (Inch) | 1/8" |
| Number Of Flutes | 2 |
| Overall Length (Inch) | 1-1/2" |
