Sowa Tool
102227

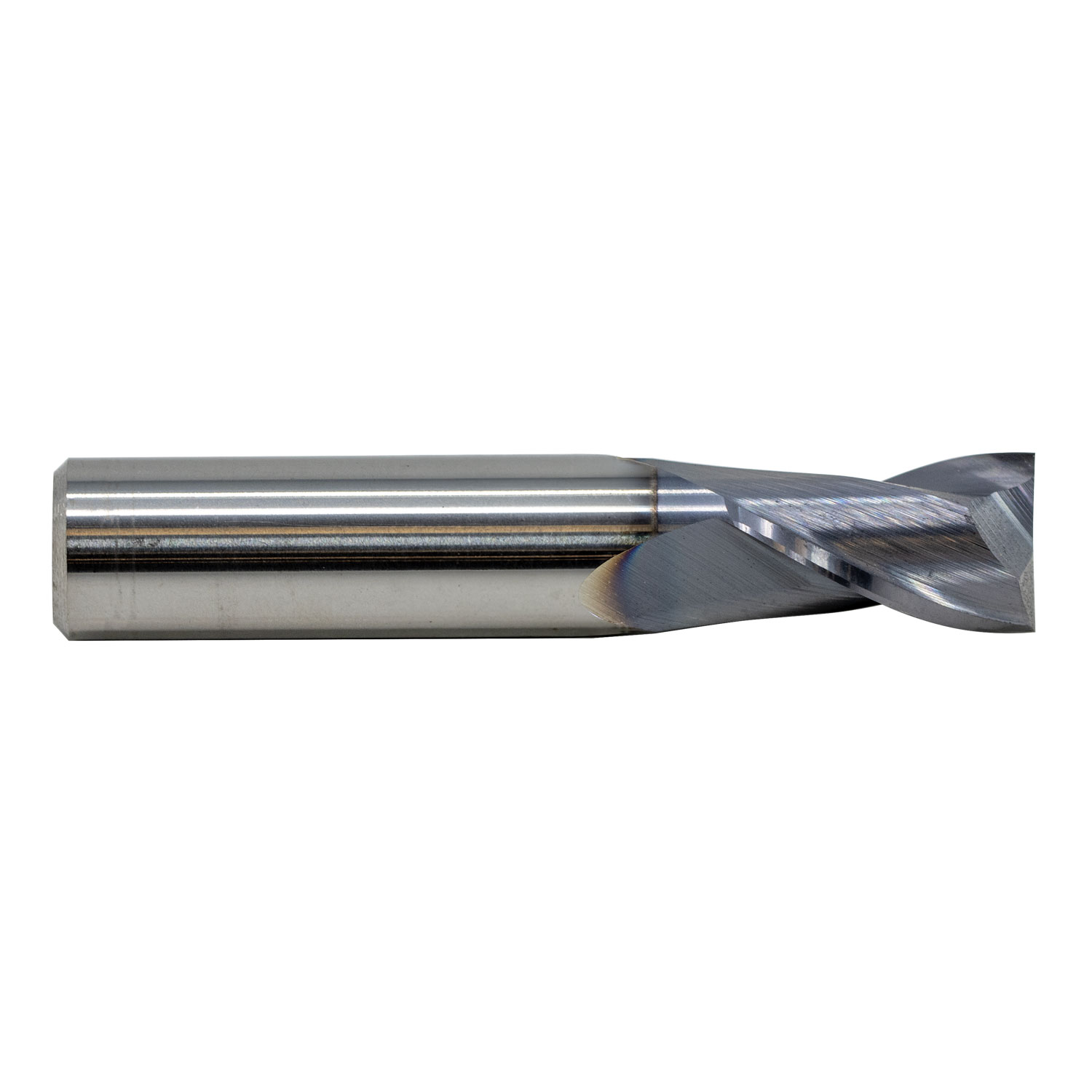

9/64 2-Flute Stub Solid Carbide End Mill TiAlN Coated
Specifications
| Shank Size (Inch) | 3/16 |
|---|---|
| Overall Length (Inch) | 2 |
| Length Of Cut (Inch) | 9/32 |
| Number Of Flutes | 2 |
| Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Double Ended | No |
| Cutting Direction | Right |
| Diameter (Inch) | 9/64 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |
| Length Type | Stub |
| Short Description | • Brand: GS Tooling<br>• Length Type : Stub |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (Inch): 9/64"<br>• Number of Flutes: 2<br>• Material: Solid Carbide<br>• Length of Cut (Inch): 9/32"<br>• Shank Diameter (Inch): 3/16"<br>• Finish/Coating: TiAlN<br>• Single or Double End: Single<br>• Center Cutting: Yes<br>• Overall Length (Inch): 2"<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>2 Flute Stub has added strength and stability with the same geometry of our standard length series. Stub end mills are specifically designed for shallow milling and slotting in a variety of materials. |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 3/16" |
| Unit of Measure | Fractional |
| Mill Diameter (Inch) | 9/64" |
