Sowa Tool
102242

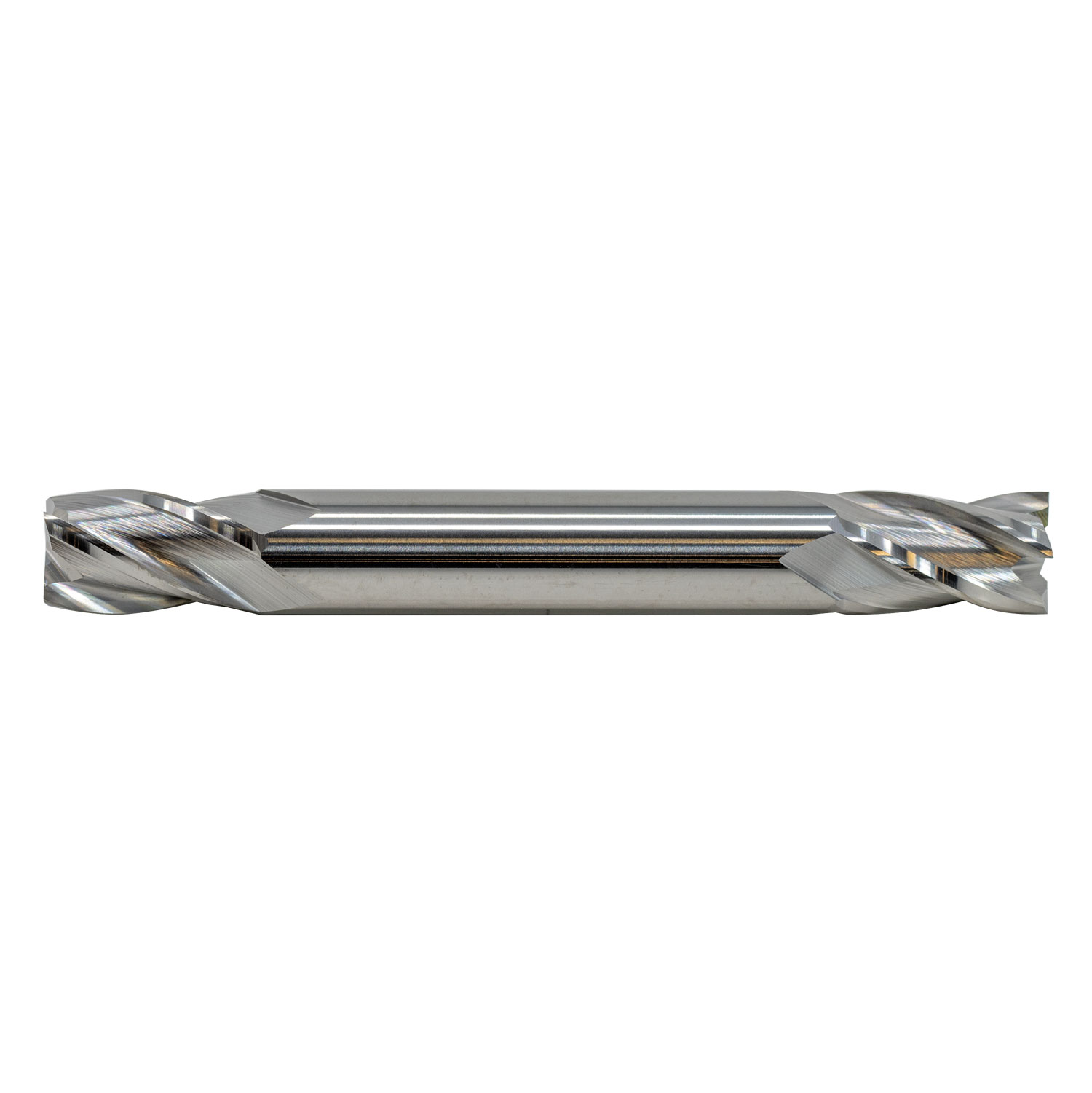

1/4" Diameter x 1/4" Shank 4-Flute Stub Length Double End Blue Series Carbide End Mill
Specifications
| Shank Size (Inch) | 1/4 |
|---|---|
| Overall Length (Inch) | 2-1/2 |
| Length Of Cut (Inch) | 1/2 |
| Number Of Flutes | 4 |
| Material | Solid Carbide |
| Coating/Finish | Bright |
| Double Ended | Yes |
| Cutting Direction | Right |
| Diameter (Inch) | 1/4 |
| Unit Of Measure | Fractional |
| Helix Angle | 30 degrees |
| Length Type | Stub |
| Short Description | • Brand: GS Tooling<br>• Length Type : Stub |
| Center Cutting | Yes |
| Long Description | • Mill Diameter (Inch): 1/4"<br>• Number of Flutes: 4<br>• Material: Solid Carbide<br>• Length of Cut (Inch): 1/2"<br>• Shank Diameter (Inch): 1/4"<br>• Finish/Coating: Bright<br>• Single or Double End: Double<br>• Center Cutting: Yes<br>• Overall Length (Inch): 2-1/2"<br>• Flute Direction: Right<br>• Cutting Direction: Right<br>• Variable Helix: No<br>• Helix Angle: 30<br>These end mills have a shorter flute length which provides greater rigidity with less deflection for shallow milling or slotting. This series is ideal for use on high tensile alloys and heat treated steels. |
| Flute Direction | Right |
| Variable Helix | No |
| Product Type | Industrial Supplies |
| Shank Diameter (Inch) | 1/4" |
| Unit of Measure | Fractional |
| Mill Diameter (Inch) | 1/4" |
